Summary of Contents for DigiTech Drop

  • Page 2: Warranty

    The consumer forfeits the bene ts of this warranty if the product’s main assembly is opened and tampered with by anyone other than a certi ed DigiTech technician or, if the product is used with AC voltages outside of the range suggested by the manufacturer.
  • Page 3 1/2 step (1 semitone) intervals. To use the Drop pedal, enable the e ect with the Footswitch (the LED will light when the e ect is enabled), turn the E ect Selector knob to select the desired drop tune interval, then set the Momentary switch for the desired operation (see, “Momentary On/Off Switch”...

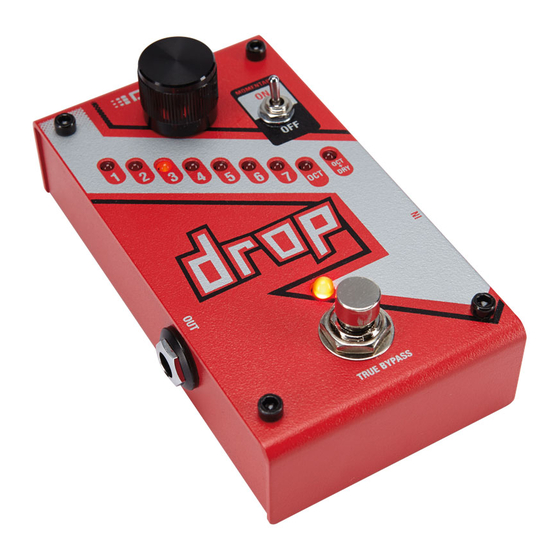

  • Page 4: User Interface

    2. Effect Selector Knob Selects which of the Drop e ect settings is used when the Drop e ect is active. 3. Drop Effect Amount LEDs Shows which Drop e ect has been selected using the E ect Selector knob, settings include: - Transposes guitar signal down 1 semitone.
  • Page 5 Connect your instrument to this jack. 7. Effect LED Shows the on/o status of the Drop e ect. This LED lights to indicate the Drop e ect is on. When the Drop e ect is bypassed, this LED will be o .

  • Page 6: Making Connections/Applying Power

    CONNECTION DIAGRAM PS0913DC POWER SUPPLY OTHER PEDALS OPTIONAL Use unbalanced TS instrument cables only. NOTE: The Drop should be the rst pedal in your e ects chain. Placing any e ect in front of it can impact the pitch shifting performance.

  • Page 7: Specifications

    > -105 dB (A weighted); ref = max level, 22 kHz bandwidth THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain A/D/A Conversion: 24-bit Effect Range Drop Tune Range: 1-7 Semitones Down, Octave Down, Octave Down + Dry Input Input Type: 1/4” Unbalanced TS Max Input Level:...
  • Page 8 WEB: digitech.com SUPPORT: support@digitech.com Drop Owner's Manual 5049647-C © 2022 CORTEK Corp. All rights reserved. DigiTech is a registered trademark of CORTEK Corp.
