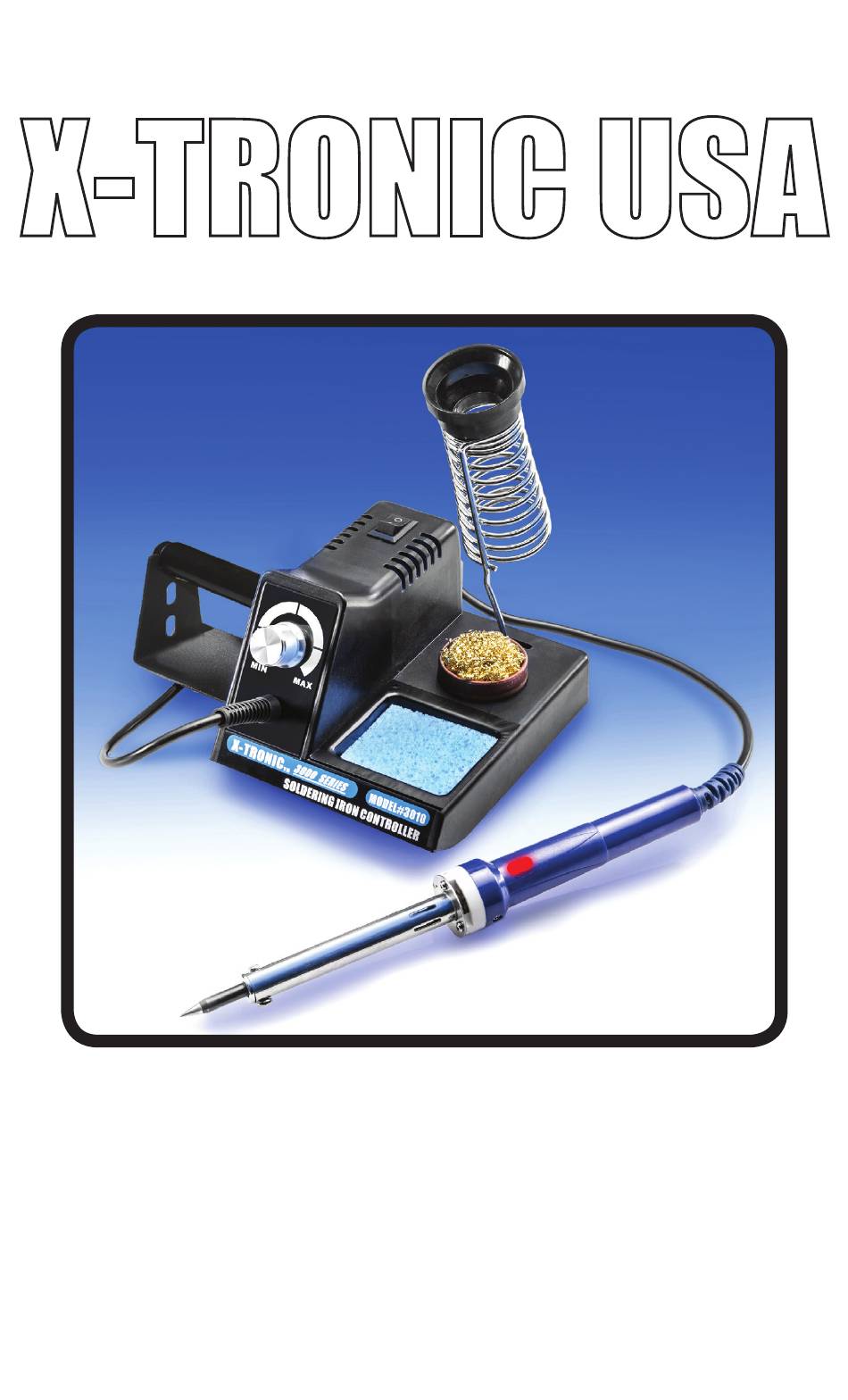

- Page 1 X-TRONIC USA X-Tronic Model #3010-XTS Instructions...
-
Page 3: Specifications

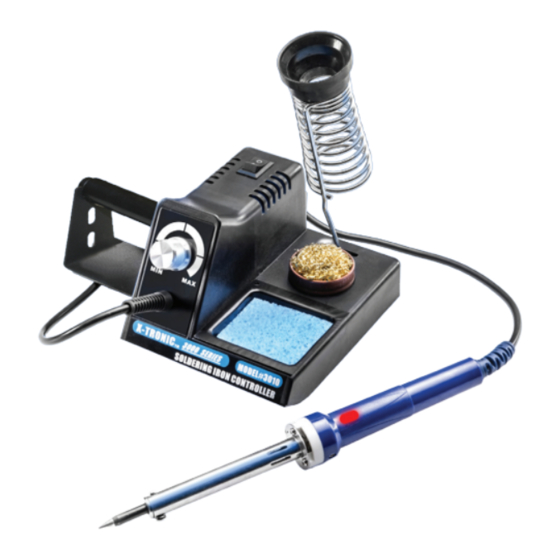

USING YOUR NEW X-TRONIC Model #3010-XTS SOLDERING STATION This manual is provided to make a safe and effective use of the X-Tronic 3010-XTS soldering station and to maintain this instrument in proper working condition. Be sure to keep this manual in a handy place near the unit for future reference. -
Page 4: Initial Setup
INTRODUCTION The X-Tronic 3010-XTS soldering station is an ESD-Safe variable temperature and electronically controlled unit for a demanding soldering environment, thereby providing flexibility to suit various types of soldering conditions. INITIAL SET-UP WARNING: Do NOT leave the unit on full power for any long period of time. -
Page 5: Operation
OPERATION 1. Set the desired working temperature by turning the aluminum knob on the front of the control module. The front of the knob has a tick mark indicator to show the selected setting. The temperature of the soldering iron can be set anywhere from 392°F ~ 896°F/200°C ~ 480°C. -
Page 6: Replacing The Heating Element
REPLACING THE HEATING ELEMENT: 1. Allow the soldering iron to cool down to room temperature. Never attempt to remove the tip while the iron is hot. 2. Remove the tip (reference above instructions) but remove both screws on either side of the tip this time. 3. -
Page 7: Year Warranty
All X-Tronic Products come with 3-Year Guarantee, valid only in the 48 Contiguous United States. If you purchase this product and ship it to a destination outside of the 48 Contiguous United States this warranty ... - Page 8 Compliments please call or email us. Toll Free: 844-861-4762 Info@XTronicUSA.com Our Business Hours are: Monday - Thursday: 8am - 4pm CST Friday: 8am - Noon CST If you would like to shop for other X-Tronic International Products Please visit our website www.XTronicUSA.com...
