Summary of Contents for X-Tronic 6020-PRO-X
-
Page 3: Specifications
SPECIFICATIONS Model XTR-6020-PRO-X Power Consumption 750 Watts Voltage AC 110V 60Hz Power Cord Type USA Type B - 3-Pin Grounded Plug Current ≤ 8 Amps Fuse 10 Amp Dimensions 7.0” L x 6.75” W x 6.25” H Weight 7.5 lbs Working Environment 32°F ~ 104°F / 0°C ~ 40°C... -
Page 4: Package Contents

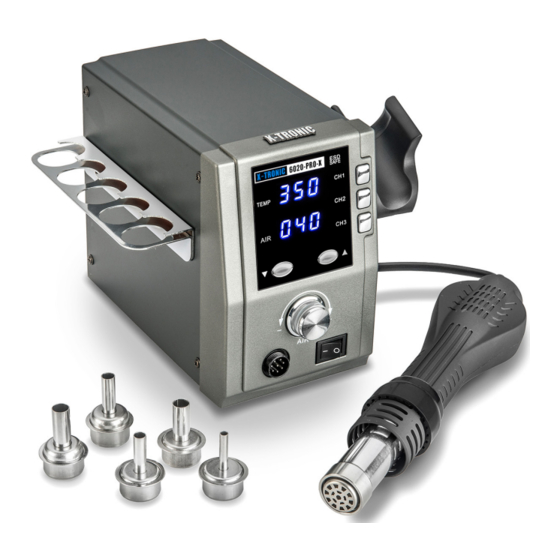

PACKAGE CONTENTS • 750 Watt Main Power Unit • Brushless Vortex Fan Hot Air Gun • Hot Air Gun Holder (attached to side of main unit) • Patented Hot Air Nozzle Holder (attached to side of unit) • 5 - Sizes/Styles of Hot Air Gun Nozzles •... -
Page 5: Panel Diagram
PANEL DIAGRAM 1. Temperature Display 2. Patented Quick Change Nozzle Rack 3. Temperature Adjustment Buttons 4. Air Flow Control Knob 5. Hot Air Gun Cord Receptical 6. Hot Air Gun Power Switch 7. Hot Air Gun 8. Hot Air Gun Holder 9. -
Page 6: Initial Setup
INITIAL SET - UP 1. Plug the Hot Air Gun into the front cord receptacle on the lower left side of the unit and tighten the ring nut. 2. Place the hot air gun into the holder on the right side of the unit. 3. - Page 7 10. When the hot air gun is removed again from the holder it will start blowing air and ramp up to the programmed temperature and air speed again quickly. 11. To turn the hot air gun completely off, turn off the power switch on the lower right hand side of the unit.
- Page 8 QUICK CHANGE NOZZLE RACK With the patented Quick Change Nozzle Rack that is included, changing out hot air nozzles is quick and efficient. To Install a Nozzle 1. Center the hot air gun over the chosen nozzle in the Quick Change Nozzle Rack.
-
Page 9: Temperature Conversion
FEATURES AUTO COOL DOWN AND STANDBY MODE When the hot air gun is placed in the holder, the hot air gun will go into Auto Cool Down and Standby mode immediately. The display will show the temperature as it cools down. Once it has cooled down, the display will show “---”... -
Page 10: Calibration Function
CALIBRATION FUNCTION When is it time to Calibrate your Hot Air Station? All X-Tronic Stations come with a high quality heating element in the hot air gun that is calibrated to within ±3.6°F/2.0°C of the temperature that is shown on the LED Display. While calibrating... -
Page 11: Calibration Instructions
CALIBRATION INSTRUCTIONS Remove any nozzle from the hot air gun before measuring the temperature or calibrating the unit. Once the desired temperature has been set and the temperature of the unit stabilizes, measure the heat at the hot air using a high quality and well calibrated hot air tester or an infrared thermometer. -
Page 12: Maintenance
MAINTENANCE REPLACING THE HOT AIR GUN HEATING ELEMENT Handle Cover - Side 1 Retaining Cap Handle Cover - Side 2 Circuit Heating Reducer Board Element Mica Paper Discharge Tube Nozzle 1. Turn off the unit and unplug it from the outlet. Allow the hot air gun to cool down to room temperature. -
Page 13: Replacing The Fuse
• Ensure the power cord is securely plugged into the have power outlet. • Ensure that the outlet is functional. • Contact X-Tronic International for assistance - Contact information on back of manual Soldering Iron • This is expected behavior. The “rattle” is a small ball “Rattles”... -
Page 14: Warranty
(b) any product shipped outside of the United States, the District of Columbia or Canada, or (c) anyone who may have purchased it from someone other than X-Tronic International Inc.. Proof of purchase is required for in- warranty service. We recommend you promptly register this product on our website (www.XTronicUSA.com) to facilitate verification of the date of the original... - Page 15 WHAT DOES THIS WARRANTY NOT COVER? This limited warranty during the Warranty Period does not cover any damage due to: (a) improper use; (b) failure to follow the product instructions or to perform any preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal wear and tear that comes with household use;...
- Page 16 Compliments please call or email us. Toll Free: 844-861-4762 Info@XTronicUSA.com Our Business Hours are: Monday - Thursday: 8am - 4pm CST Friday: 8am - Noon CST If you would like to shop for other X-Tronic International Products Please visit our website www.XTronicUSA.com...
