KED202S

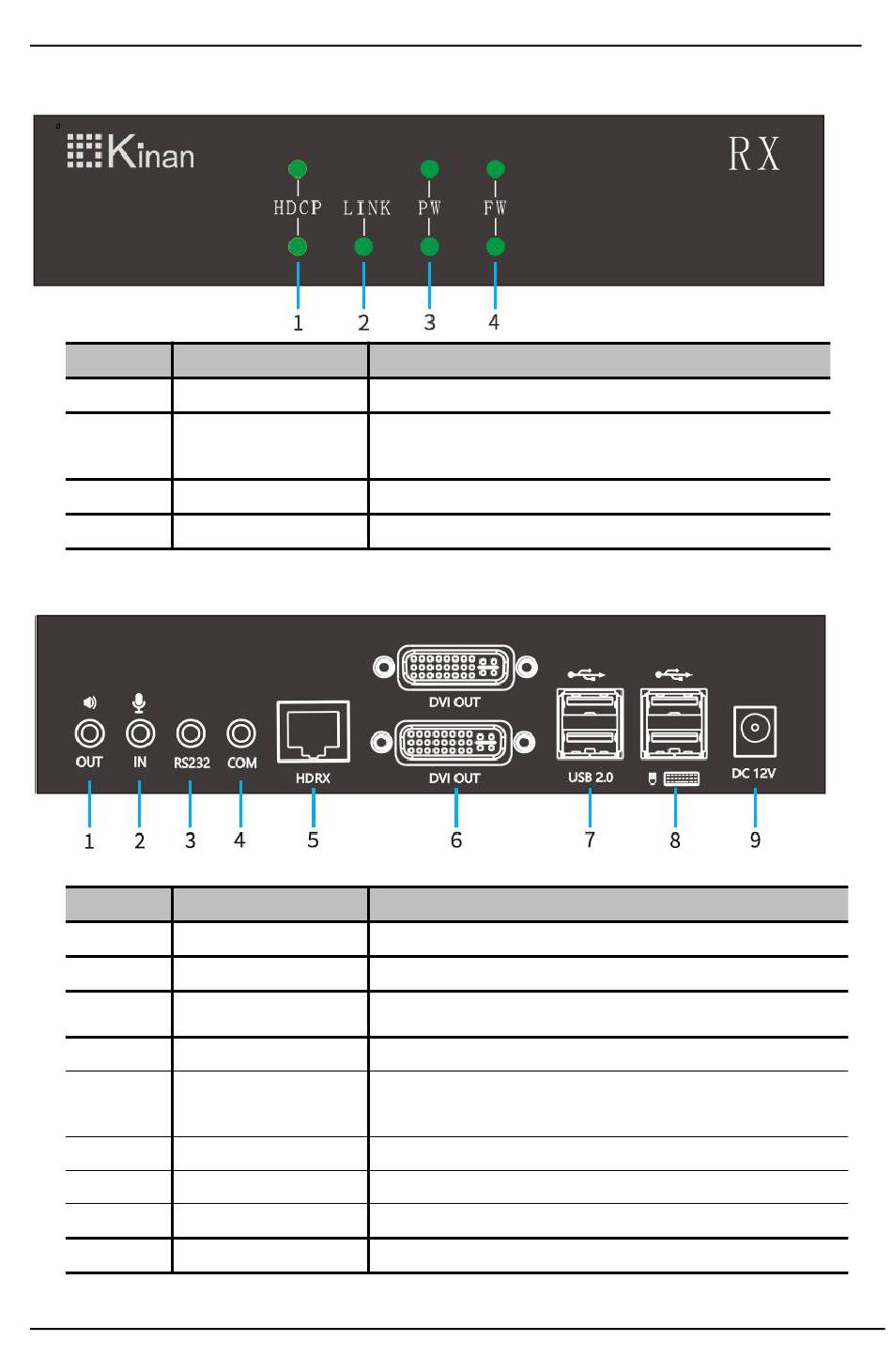

KED202S_RX front panel

No. Components
1 HDCP
2 LINK
3 PW
4 FW

KED202S_RX Rear Panel

No.
1 OUT
2 IN
3 RS232
4 COM
5 HDRX
6 DVI OUT
7 USB2.0
8 USB port
9 Power Socket
Components
Description
Indicates the video status
Indicates the connecting status with the
Transmitter.
Power indicator
Device running status
Description
Audio Output
Mic Input
RS232 serial port
Reserved port
CAT5E/CAT6 cable connection port to
connect to the Transmitter.
Connect to DVI display
Connect to other USB peripherals devices
Connect to USB keyboard/Mouse
12V power
