- Page 1 KVM Extender User Manual www.kinankvm.com @All right reserved Shenzhen Kinan Technology Co., Ltd. Date: 2018 / 10 Version: V1.0...
- Page 2 User Manual Product Description KEV101S is a VGA KVM extender that transmits audio, video, USB and RS232 signals up to 100m trough a single CAT5E/CAT6 cable. With an easy cable installation supporting various signals, the KVM Extender is ideal for applications where convenient remote access is required –...

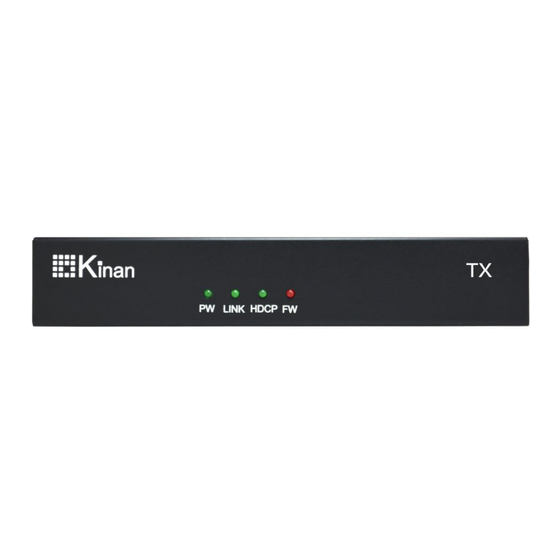

- Page 3 KEV101S User Manual Pictures KEV101S_TX (Front View) Function Description Device status LINK Indicate the connection status with RX HDCP Indicate video status Indicate power status KEV101S_TX (Rear View) Function Description 9V-12V 9V-12V power input RS232 Serial port Reserved port AOUT...
- Page 4 KEV101S User Manual KEV101S_RX (Front View) Function Description Device status LINK Indicate the connection status with RX HDCP Indicate video status Indicate power status KEV101S_RX (Rear View) Function Description 9V-12V 9V-12V power input RS232 Serial Port Reserved Port MIC input...
- Page 5 KEV101S User Manual Connection Diagram 1. Connect to server, USB port, and audio port. 2. Connect to keyboard, mouse, display, audio port 3. Connect TX unit and RX unit with CAT5E/CAT6 cable (Max 100m) 4. Turn on the TX and RX unit...
- Page 6 KEV101S User Manual Technical Specification Model KEV101S (TX) KEV101S (RX) VGA Output VGA Input Power 9V-12V 9V-12V Network RJ45 x1 RJ45 x 1 3.5MM Stereo Jack 3.5MM Stereo Jack Microphone Connector (pink)x1 (pink)x1 3.5MM Stereo Jack 3.5MM Stereo Jack Speaker...
