- Page 1 HDMI FHD Digital KVM Extender over Fiber/Cat5 (KFH262S) User Manual www.kinankvm.com @All right reserved Shenzhen Kinan Technology Co., Ltd. Date: 2023/10 Version: V1.1...
- Page 2 10km, for multimode the transmission distance is up to 300m. If you connect the KFH262S-TX and KFH262S-RX with a Cat5 cable, the transmitting distance is up to 150m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.

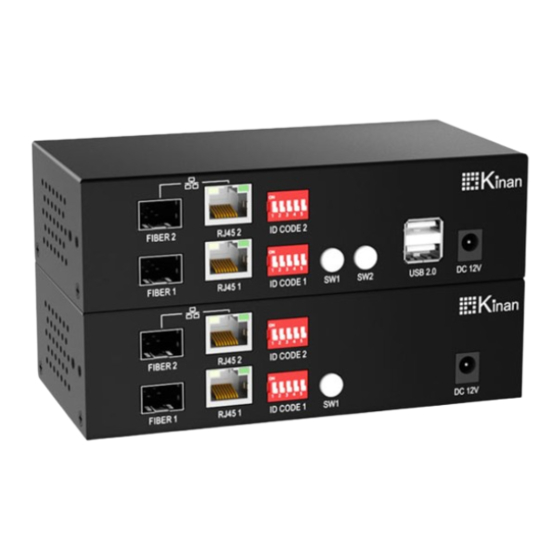

- Page 3 KFH262S User Manual KFH262S_RX front panel Components Description Optical port, plug this port with an SFP+ module CAT-X1 RJ45 port, plug this port with a CAT5E cable ID CODE1 DIP switch for point-to-point DIP connection Pushbutton 1 Pushbutton 2 Connect to USB peripherals...
- Page 4 KFH262S User Manual KFH262S_RX rear panel Components Description Connect the device to the ground Reserved port Audio output MIC input USB2.0 Connect to USB peripherals Serial port HDMI OUT1 Connect to a HDMI monitor LINK1 Connection status indicator PWR1 Power Indicator...
- Page 5 KFH262S User Manual KFH262S_TX front panel Components Description FIBER1 Optical port, plug this port with an SFP+ module RJ452 RJ45 port, plug this port with a CAT5E cable ID CODE1 DIP switch for point-to-point DIP connection Pushbutton DC12V 12V power connection port...
- Page 6 KFH262S User Manual KFH262S_TX rear panel Components Description Connect the device to the ground Reserved port MIC out AOUT Audio in USB IN USB in Serial port HDMI video input HDMI IN1 LINK1 Connection status indicator PWR1 Power Indicator HDMI video input...
- Page 7 KFH262S User Manual Connection Diagram 1. Connect the KFH262S_TX to the HDMI video port, USB port and audio port of a computer. (See ① in the above diagram) 2. Connect the KFH262S_RX to keyboard, mouse, monitor and audio device. (See ② in the above diagram) 3.
- Page 8 KFH262S User Manual Specifications Model KFH262S_TX KFH262S_RX HDMI in HDMI out Power SFP x 2 SFP x 2 3.5mm Stereo 3.5mm Stereo Jack Interfaces Microphone Jack (Pink) (Pink) 3.5mm Stereo 3.5mm Stereo Jack Speaker Jack (Green) (Green) RJ45 x 2...
