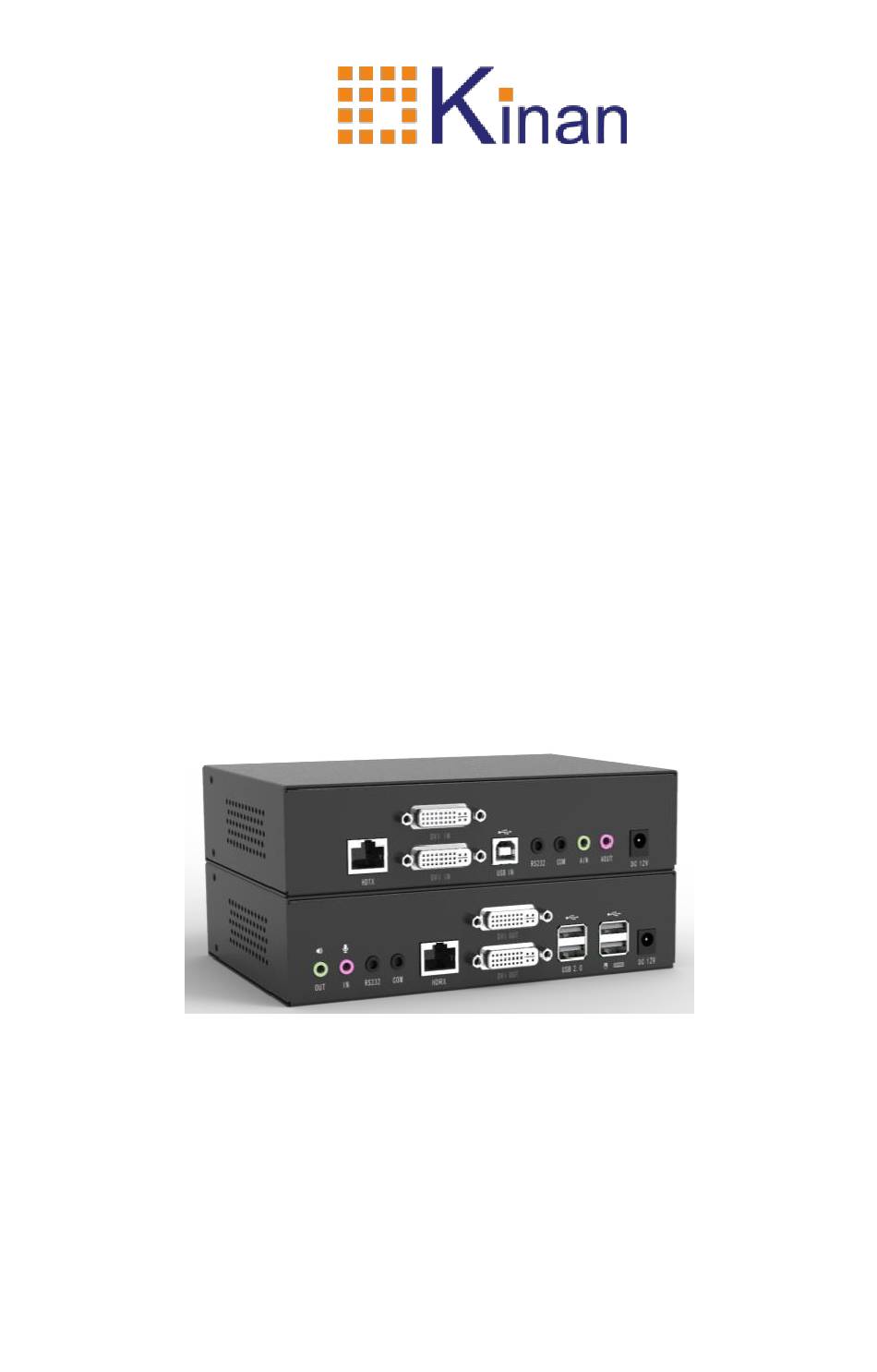

- Page 1 USB Dual DVI KVM Extender (KED202S) User Manual Print Date: 2021/05/27 Version: V1.0...
- Page 2 User Manual KED202S Overview The KED201S USB Dual DVI HDBaseT™ KVM extender integrates the latest HDBaseT™ technology and delivers high quality Dual DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable. A complete set of KED201S including Transmitter (KED201SH) and Receiver (KED201SC).
- Page 3 User Manual KED202S KED202S_RX front panel Components Description HDCP Indicates the video status Indicates the connecting status with LINK the Transmitter. Power indicator Device running status KED202S_RX Rear Panel Components Description Audio Output Mic Input RS232 RS232 serial port Communication Port...
- Page 4 User Manual KED202S KED202S_TX front panel Components Description HDCP Indicates the video status Indicates the connecting status with LINK the Transmitter. Power indicator Device running status KED202S_TX Rear Panel Components Description CAT5E/CAT6 cable connection port to HDTX connect to the Receiver.
-
Page 5: Connection Diagram
User Manual KED202S Connection Diagram 1. Connect the KED202S_TX to PC’s video, USB port and audio port. (① in the above diagram) 2. Connect the KED202S_RX to keyboard, mouse, display and audio device. (② in the above diagram) 3. Connect KED202S_TX unit and KED202S_RX unit with CAT5E/CAT6 cable through the HDTX and HDRX ports. -
Page 6: Specifications
User Manual KED202S Specifications Model No. KED202S_TX KED202S_RX DVI Input DVI Output Power Network Port RJ45 x1 RJ45 x 1 Connectors 3.5MM Stereo Jack 3.5MM Stereo Jack (pink) (pink) 3.5MM Stereo Jack 3.5MM Stereo Jack Speaker (green) (green) USB Type B USB 2.0...
