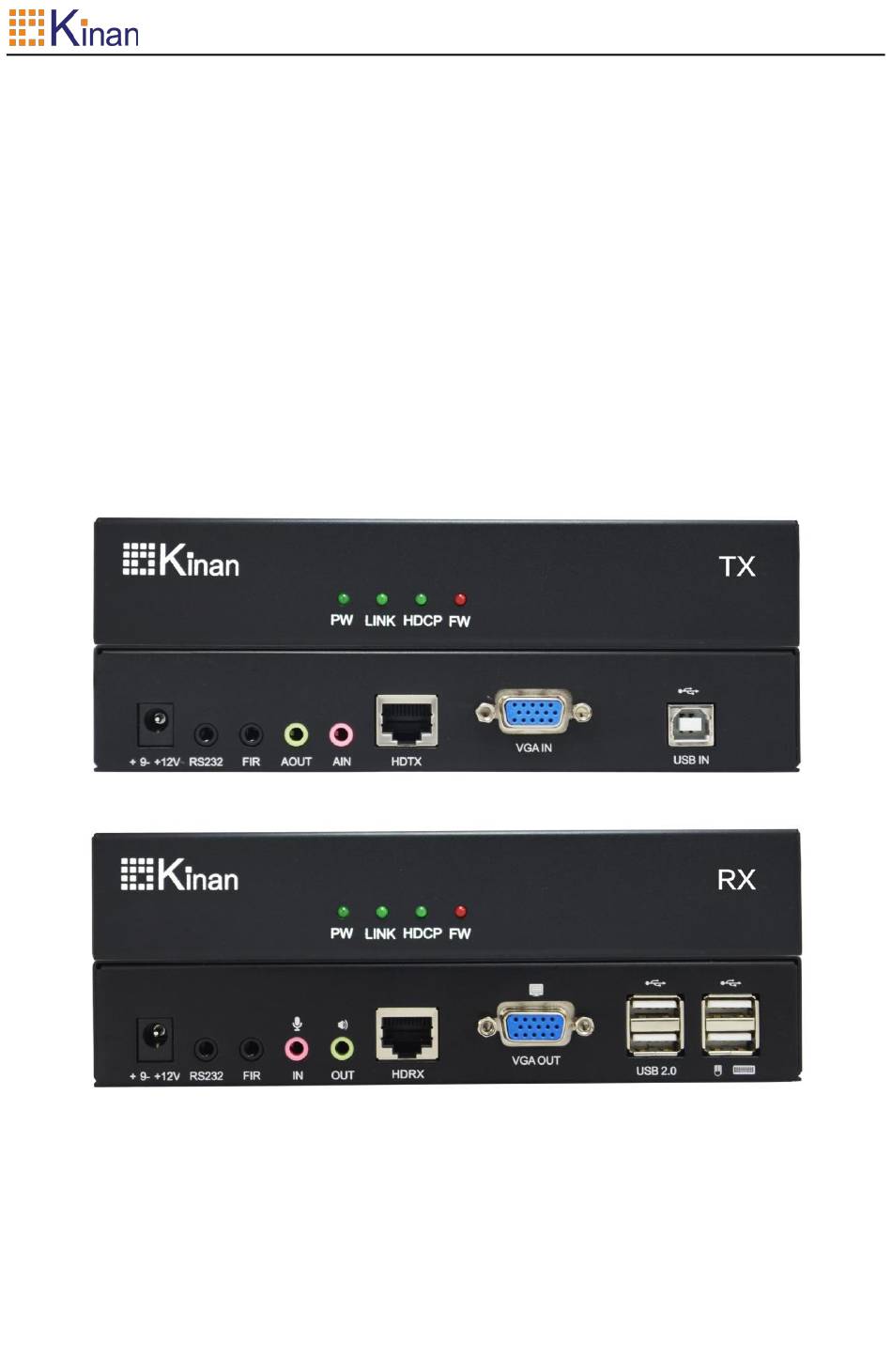

- Page 1 USB VGA Cat5 KVM Extender KEV101S...
- Page 2 Overview The KEV101S USB VGA over Cat5e/Cat6 KVM Extender allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It can deliver the video, stereo audio, USB signals up to 100 meters using single Cat5e / Cat 6 cable.
- Page 3 www.kinankvm.com Connection Diagram...
- Page 4 www.kinankvm.com Specifications Model KEV101S_TX KEV101S_RX Input 1 x VGA Output 1 x VGA Power 9V-12V Network Port 1 x RJ45 Connectors 1 x 3.5mm Min stereo port (pink) Speaker 1 x 3.5mm Min stereo port (green) USB Type B USB 2.0 2 x 2 layer USB type A Resolution 1920 x 1080 @ 60 Hz (1080P)
