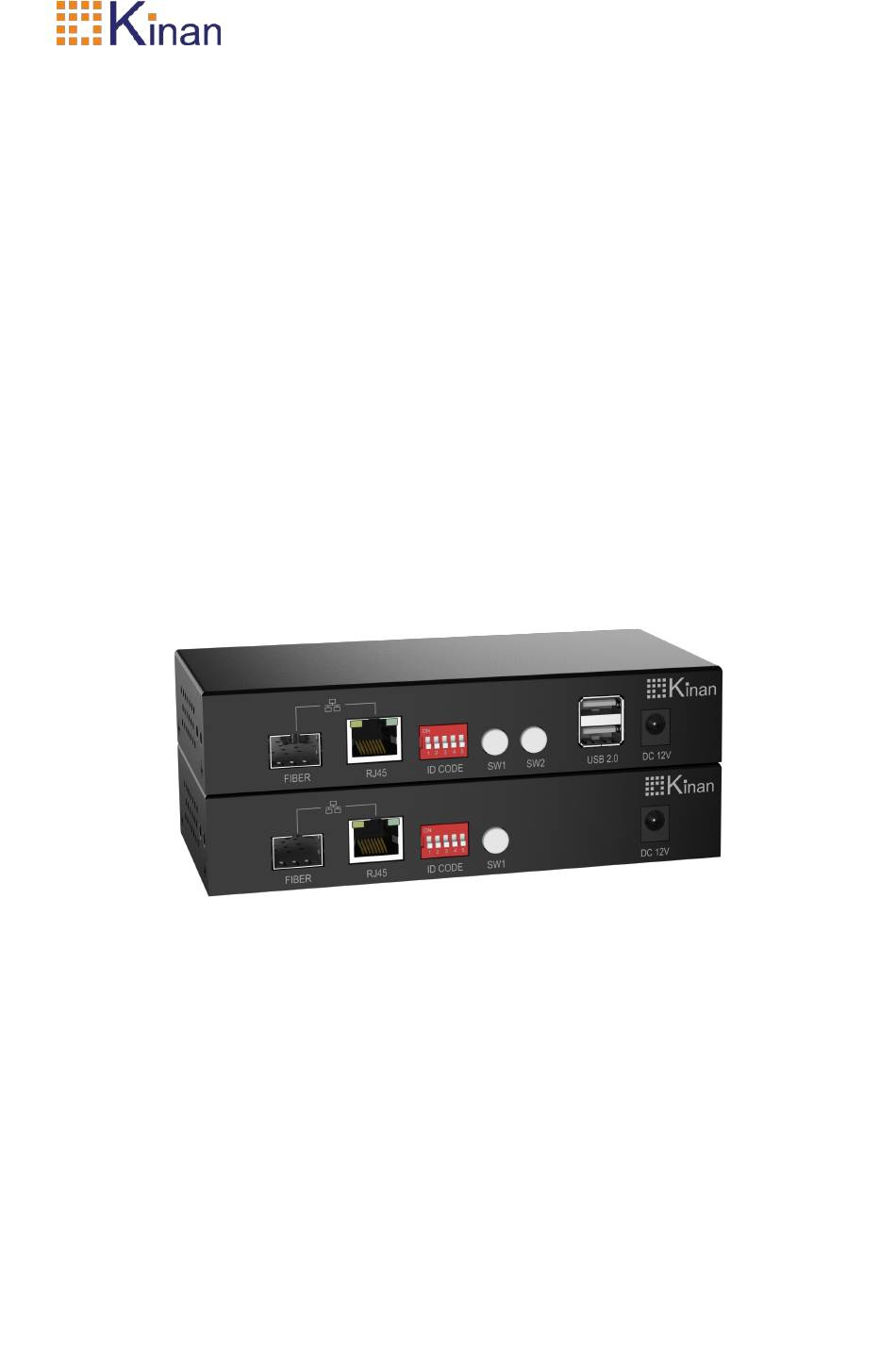

- Page 1 HDMI FHD Digital KVM Extender over Fiber/Cat5 (KFH162S) User Manual @All right reserved Shenzhen Kinan Technology Co., Ltd. Date: 2022/08 Version: V1.2...
- Page 2 KFH162S User Manual User Notification All information, documentation, and specifications contained in this manual are subject to change without prior notice. The manufacturer does not make any explicit or implied statement or guarantee about the contents of this document, especially for merchantability or fitness for any specific purpose.
- Page 3 10km, for multimode the transmission distance is up to 300m. If you connect the KFH162S-TX and KFH162S-RX with a Cat5 cable, the transmitting distance is up to 150m. It supports the transmission of 1 channel high-quality HDMI signals and has a wide range of applications.
- Page 4 KFH162S User Manual KFH162S_RX front panel Components Description FIBER Optical port, plug this port with an SFP+ module RJ45 RJ45 port, plug this port with a CAT5E cable ID CODE DIP switch for point-to-point DIP connection Pushbutton 1 Pushbutton 2 USB2.0...
- Page 5 KFH162S User Manual KFH162S_TX front panel Components Description FIBER Optical port, plug this port with an SFP+ module RJ45 RJ45 port, plug this port with a CAT5E cable ID CODE DIP switch for point-to-point DIP connection Pushbutton DC 12V 12V power connection port...
- Page 6 KFH162S User Manual Connection Diagram 1. Connect the KFH162S_TX to the HDMI video port, USB port and audio port of a computer. (See ① in the above diagram) 2. Connect the KFH162S_RX to keyboard, mouse, monitor and audio device. (See ② in the above diagram) 3.
- Page 7 KFH162S User Manual Specifications Function KFH162S_TX KFH162S_RX HDMI in HDMI out Power SFP+ Module SFP+ x 1 SFP+ x 1 3.5mm Stereo 3.5mm Stereo Jack Interfaces Microphone Jack (Pink) (Pink) 3.5mm Stereo 3.5mm Stereo Jack Speaker Jack (Green) (Green) RJ45...
