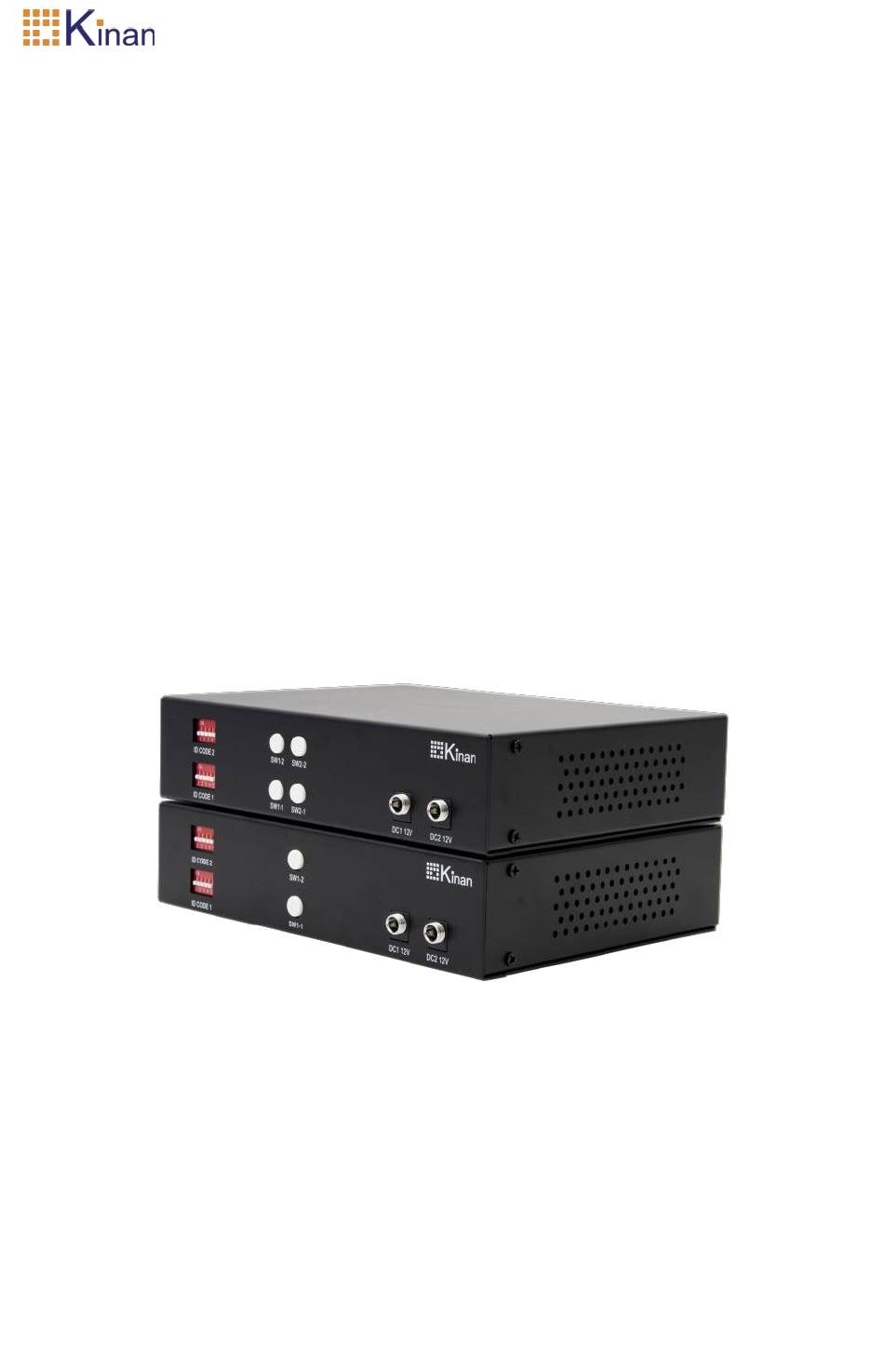

- Page 1 HDMI Dual View KVM Extender over Fiber/Cat5 ( KFH268S ) User Manual www.kinankvm.com @ All rights reserved by Shenzhen Kinan Technology Co., Ltd. Date: 2024 /12 Version: V1.0...
- Page 2 KVM Extender (KFH268S) User Manual Call us for support Telephone +86 (755) 2665 4426 Office Time: 8:30am ~12:00am, 1:30pm~6:00pm (Monday to Friday) , GMT+8 Standard Time User Notice This manual contains instructions for setting up the product and operating it. If the equipment is damaged due to inappropriate operation, the buyer (instead of the manufacturer, its distributor or dealer) will assume the entire cost of all necessary repairs.
-
Page 3: Product Description
KVM Extender (KFH268S) User Manual Product Description KFH268S HDMI high-definition digital KVM extender is a KVM signal extension device that can transmit 2-channel video, mouse, keyboard, USB2.0 and other signals of the PC host through optical fiber or network cable. - Page 4 KVM Extender (KFH268S) User Manual KFH268S Transmitter (TX) Interface Description Dip switch, used for point-to-point dial-up ID CODE2，ID CODE1 connection SW1-2，SW1-1 Buttons DC1 12V, DC2 12V Connect to the 12Vdc power supply Ground the device Audio input AOUT MIC output...
- Page 5 KVM Extender (KFH268S) User Manual KFH268S Receiver (RX) Interface Description Dip switch, used for point-to-point dial-up ID CODE2, ID CODE1 connection SW1-2, SW1-1 Buttons SW2-2, SW2-1 DC1 12V, DC2 12V Connect to the 12Vdc power supply Ground the device MIC input...
- Page 6 KVM Extender (KFH268S) User Manual Monitor Power MIC Speaker Keyboard Mouse Monitor Serial port port Ground Monitor Monitor Ground Computer or server Power 1. Make sure the KVM extenders (TX and RX) are grounded (Figure ①). 2. Connect the transmitter to the host video interface, USB, and audio microphone interface (Figure ②).
- Page 7 KVM Extender (KFH268S) User Manual KFH268S_TX KFH268S_RX Specifications HDMI input HDMI output Power LAN port RJ45 x 2 RJ45 x 2 Connections SFP port SFP x 2 SFP x 2 3.5mm Stereo 3.5mm Stereo Jack (Pink) Jack (Pink) 3.5mm Stereo 3.5mm Stereo...
