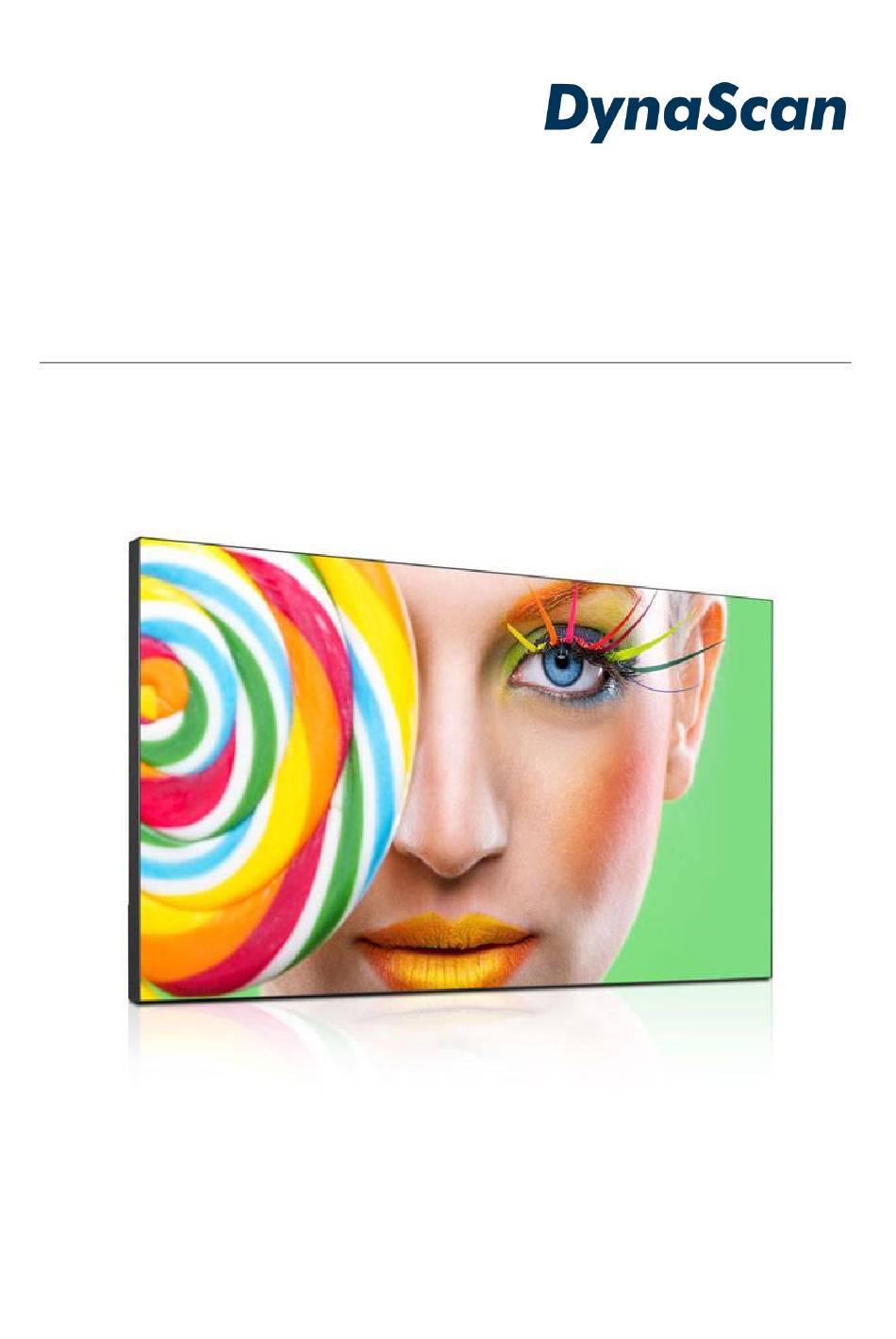

- Page 1 User Manual DI551ST2 Version 2.10 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Navigating the On Screen Display (OSD) Menu .................. 18 Specifications ............................22 Input Mode ............................23 Pin Assignments ........................... 24 Digital RGB Input (DVI-D): DVI ......................24 RS-232 Input ............................ 24 Troubleshooting ............................ 25 About DSM365 ............................. 26 DI551ST2 User Manual... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 6F, No. 88 Wenmao Rd., Guishan Dist, Taoyuan City 333001,Taiwan DI551ST2 User Manual... -
Page 5: Safety Precautions
In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. DI551ST2 User Manual... -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... -
Page 7: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. DI551ST2 Professional LCD. Power cable x1 pc. -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 Portrait mode: Rotate the set clockwise 90° (mandatory) <Rear> Portrait mode: Rotate the set counterclockwise 90° (mandatory) The orientation sticker can be found on the rear of display, which is for distinguishing the direction of installation. DI551ST2 User Manual...
- Page 10 The LCD should be secured to the building’s structural frame such as a beam rather than light steel frame or interior decoration. Do not use wood screws or dry wall anchors for installation. DI551ST2 User Manual...
-
Page 11: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting To A Power Source
Connect the power cable to a 100-240 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. A loose power connection may cause damage to the display and/or lead to a fire hazard. DI551ST2 User Manual... -
Page 13: Connecting An External Video Source
Connect the other end of the DVI cable (or DP cable, HDMI cable) to the DVI output (or DP output, HDMI output) of the video source. Refer to your video device’s manual for additional information. DI551ST2 User Manual... -
Page 14: Input / Output Terminals
10. RJ-45 (IN): RJ45 network input connection. 11. SD card: Support for up to 32GB, FAT32/NTFS format is supported. 12. USB port: Support for USB flash drive storage, mouse and keyboard. ⑫ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ DI551ST2 User Manual... -
Page 15: Operating Instructions
Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DI551ST2 User Manual... -
Page 16: Using The Remote Control
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DI551ST2 model is at the back of the display with a receiving angle of 100 degrees. The IR receiver configurations of the model are shown in the figure below. - Page 17 Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DI551ST2 User Manual...
-
Page 18: Using The Rear Panel Controls
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DI551ST2 User Manual... -
Page 19: Navigating The On Screen Display (Osd) Menu
Selects the black level to adjust the screen gray scale. "Limited" for video source uses Black Level RGB Full 16 to 235 levels for R/G/B, such as HDMI. "RGB Full" for video source uses all levels from 0 to 255 levels. DI551ST2 User Manual... - Page 20 Range 0 – 100. High Level Time HH:MM Set high level time. Low Level Time HH:MM Set low level time. Adjusts the contrast. High is the highest Local Dimming contrast. Off is the lowest contrast. (Off, Low, Medium and High) DI551ST2 User Manual...
- Page 21 IR Control function can be enabled again from the control panel on the display or through the Advance DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function. Only [Main Power Switch] Power Off Mode Standby on the display or [Power Button] on the remote control can wake up the display.
- Page 22 100% and Over Heat Protection is disabled. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted during production to a preset color temperature of 6500K. DI551ST2 User Manual...
-
Page 23: Specifications
10%~80% RH Non-Condensing DVI-D IN *1 (support HDMI) IN *1 HDMI IN *1 RS-232 IN *1 I/O Ports Audio OUT *1 RJ-45 SD card USB port Fuse 2.5A Design and specifications are subject to change without notice. DI551ST2 User Manual... -
Page 24: Input Mode
59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz 85.5 MHz 16:9 1920 1080 60 Hz 148.5 MHz 16:9 DI551ST2 User Manual... -
Page 25: Pin Assignments
Shield (RX0 / RX5) DDC-Serial Clock +5V power Shield (RXC) DDC-Serial Data Ground RXC+ Hot plug detect RXC- RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DI551ST2 User Manual... -
Page 26: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DI551ST2 User Manual... -
Page 27: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. SETTINGS Enter the setting menu. DI551ST2 User Manual... - Page 28 Copyright © DynaScan Technology, Inc. All Rights Reserved. DI551ST2 User Manual...
