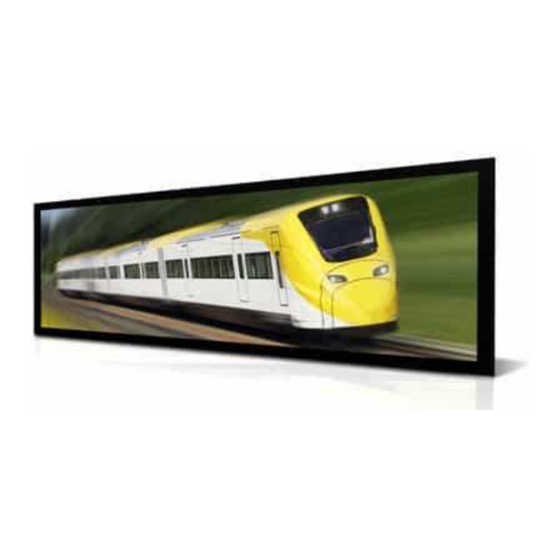

Summary of Contents for Dynascan ds2 DS371BT4
- Page 1 Professional LCDs User Manual Version 2.00 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Safety Precautions ..........................5 Safety Precautions ..........................5 Important Safety Information ........................6 Getting Started ............................7 Contents ............................. 7 Installing and Replacing Remote Control Batteries ................7 Installation............................... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 EN 61000-4-8 :2010 EN 61000-4-11:2004 Hereby, DynaScan Technology, declares that this Product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. DS371BT4 User Manual 3... - Page 5 This device complies with Directive 2014/53/EU issued by the Commission of the European Community. ( Device certification standard: EN 300 328 / EN 301 489-1/-17 / EN 55032 / EN 55024 / EN 60950 / EN 62311 ) - Frequency bands and Powers a.
-
Page 6: Safety Precautions
Safety Precautions CAUTION Do not install the display in a wet environment or place anything filled with liquid such as a vase or beverage on top of it. Do not install the display near flammable objects such as gasoline or other volatile liquids. -
Page 7: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. • Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: •... -
Page 8: Getting Started
Getting Started Contents Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. • DS371BT4 Professional LCD. • Quick Start Guide x1 pc. -
Page 9: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 10 DS371BT4 Unit: mm Orientation • When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. Portrait mode: Rotate the set clockwise 90° (mandatory) Installation Location •...
- Page 11 Single display Video wall When hanging from a ceiling • Ensure that the ceiling is strong enough to support the LCD and it accessories. Earthquake, unexpected vibration and other external forces should be taken into consideration when evaluating the ceiling strength. •...
-
Page 12: Wall Mounting
• A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. • Verify that the mounting location can support the weight of the LCD before installation. -
Page 13: Connecting Multiple Displays For Video Wall Applications
Note: The maximum number of DS371BT4’s in a Video Wall is 15 x 15. Note: The DynaScan “Display Manager” application is required to be installed on the PC in order to use the External Control feature. - Page 14 Video Source or DP, HDMI (OUT) DVI (OUT) RS-232 (OUT) or DP, HDMI (IN) DVI (IN) RS-232 (IN) DISPLAY 1 RS-232 (OUT) DVI (OUT) DVI (IN) RS-232 (IN) DISPLAY 2 RS-232 (OUT) DVI (OUT) DVI (IN) RS-232 (IN) DISPLAY 3 DS371BT4 User Manual 13...
-
Page 15: Connector Positions
Connector Positions ○ ○ ○ ○ ○ ○ ○ Power Switch AC (IN) RJ-45 SD card USB port Audio (OUT) RS-232 (OUT) ○ ○ ○ ○ ⑫ ⑬ ⑭ DVI (OUT) Thermal Sensor DP (IN) HDMI (IN) DVI (IN) RS-232 (IN) DS371BT4 ○... -
Page 16: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. Using the Remote Control When using the remote control, aim the remote at the IR receiver on the display. - Page 17 DS371BT4 DS371BT4 User Manual 16...
- Page 18 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item.
-
Page 19: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. -
Page 20: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. ITEM 1 ITEM 2 DEFAULT DESCRIPTION Main HDMI... - Page 21 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Current Date YYYY:MM:DD Set the date. Set the clock. Current Time HH:MM:SS Note: The internal clock will continue to function when the power is turned off. Time Power Control Turn on / off automatic power schedule Timer function.
- Page 22 ITEM 1 ITEM 2 DEFAULT DESCRIPTION On: Content fills the entire screen. Full Screen Off: Content display as the setting of “Position”. Select the content position on display: Top, Center, Bottom. Screen split function support 1920 x 1080 only. Top: Top part of the content.
- Page 23 ITEM 1 ITEM 2 DEFAULT DESCRIPTION To turn On / Off the auto brightness adjustment. Note: If the AUTO BRIGHTNESS is off, the screen brightness will remain at HIGH LEVEL brightness value. If the AUTO BRIGHTNESS is on (Auto), the display brightness adjusts according to the ambient Auto Brightness light.
- Page 24 Note: When disabled, the remote control IR Control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function. Only [Main Power Switch] Power Off Mode...
- Page 25 ITEM 1 ITEM 2 DEFAULT DESCRIPTION It will enter into protection mode when the display internal temperature is over heat. 56°C = Brightness 50%. Over Heat 61°C = Brightness 25%. Information 3 Inactive Protection 66°C = Brightness 03%. When the temperature is decreased to exit the protection, the brightness will restore to 100% and Over Heat Protection is disabled.
-
Page 26: Specifications
Specifications MODEL DS371BT4 LCD Panel Size 37.5 inches Native Resolution 1920 x 540 Brightness 3000 cd/m² (Typ.) Contrast Ratio 4,000:1 PANEL Response Time 16 ms (Typ.) Viewing Angle 178°/ 178° Life Time 50,000 hrs (Typ.) Panel Surface AR, Haze 25%, 3H Power Supply Internal Rated Voltage... -
Page 27: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz... -
Page 28: Pin Assignments
Pin Assignments Digital RGB Output (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR TX2- TX1- TX0- TX2+ TX1+ TX0+ Shield (TX2 / TX4) Shield (TX1 / TX3) Shield (TX0 / TX5) DDC-Serial Clock +5V power Shield (TXC) DDC-Serial Data Ground TXC+ Hot plug detect TXC- Digital RGB Input (DVI-D): DVI... -
Page 29: Rs-232 Output
RS-232 Output PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS371BT4 User Manual 28... -
Page 30: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS371BT4 User Manual 29... -
Page 31: About Dsm365
About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, SD card or Internet. How to Switch to DSM365 • Press the MENU button on either the rear panel control or remote control to show the OSD. •... - Page 32 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS371BT4 User Manual 31...
