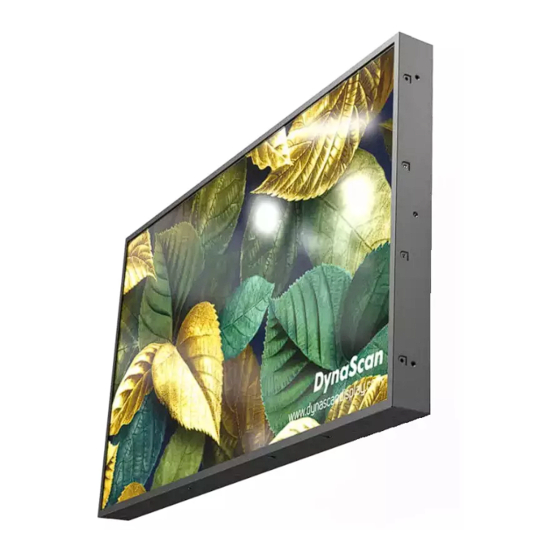

32” clean back digital signage
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DS323LT4
USER MANUAL
32" Clean Back Digital Signage
67401 | V2.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS323LT4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynascan DS323LT4

Summary of Contents for Dynascan DS323LT4

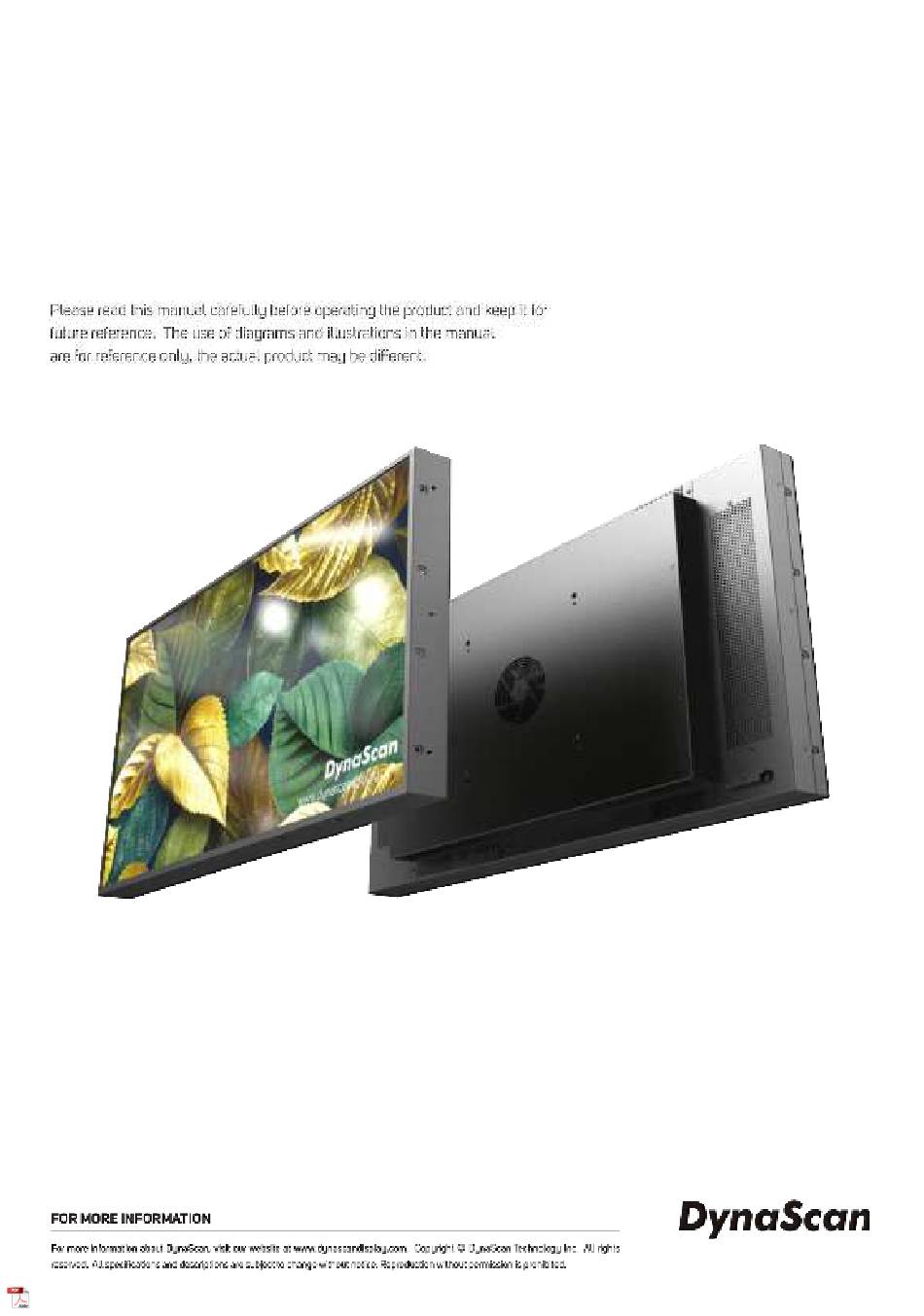

  • Page 1 DS323LT4 USER MANUAL 32” Clean Back Digital Signage 67401 | V2.01...
  • Page 2 Contents Material Contents Declaration ........................ 1 Recycling and Energy Information ......................1 Declaration of Conformity ........................2 Déclaration de conformité........................3 Safety Precautions ..........................4 Précautions relatives à la sécurité ......................5 Important Safety Information ........................6 Informations importantes relatives à la sécurité ..................7 Getting Started ............................

  • Page 3: Material Contents Declaration

    SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations.

  • Page 4: Declaration Of Conformity

    Airticle 3.2 EN 55035 :2017 EN 300 328 EN 301 489-1 EN 301 893 EN 301 489-17 EN 62311 - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DS323LT4 User Manual 2...

  • Page 5: Déclaration De Conformité

    EN 300 328 EN 301 489-1 EN 301 893 EN 301 489-17 EN 62311 - Bandes de fréquences et puissances a. WIFI 2,4G-2412~2462MHz. b. La puissance radiofréquence maximale transmise dans la bande 2,4 GHz est de 50 mW DS323LT4 User Manual 3...

  • Page 6: Safety Precautions

    Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. Power cord shall be connected to a socket-outlet with earthing connection. DS323LT4 User Manual 4...

  • Page 7: Précautions Relatives À La Sécurité

    Le cordon d'alimentation ne doit pas être connecté à la surface du bâtiment, ni traverser les murs, les plafonds, les planchers et les ouvertures similaires du bâtiment. Le cordon d'alimentation doit être connecté à une prise électrique mise à la terre DS323LT4 User Manual 5...

  • Page 8: Important Safety Information

    Handle the LCD with care. Save the packaging materials for transport later.  Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ...
  • Page 9 Nettoyez l’arrière de l’écran LCD au moins une fois par mois afin d’éliminer la poussière et autres  particules. Débranchez immédiatement l'écran LCD et contactez un réparateur professionnel certifié DynaScan dès que possible lorsque l'une des situations suivantes se produit :  Cordon d'alimentation ou fiche d'alimentation endommagé. ...

  • Page 10: Getting Started

    Do not touch the leaked substance from the batteries in case of a battery leakage. Doing so may hurt human skin. Note: If the remote control is not going to be used for a long time, we recommend removing the batteries from the remote control. DS323LT4 User Manual 8...

  • Page 11: Bien Débuter

    Vérifiez que les accessoires ci-dessous sont fournis avec l’écran. Si l'un d'eux est manquant, veuillez contacter immédiatement votre revendeur. La couleur et la forme des accessoires peuvent varier selon les produits.   Écran LCD DS323LT4 Professional. Câble d'alimentation x 1   Télécommande x 1 Guide de démarrage rapide x 1...

  • Page 12: Installation

    The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation.
  • Page 13 <Front> Portrait mode: Rotate the set clockwise 90° (mandatory)  The orientation sticker can be found on the rear of display, which is for distinguishing the direction of installation. DS323LT4 User Manual 11...
  • Page 14 Inspect the fasteners regularly for signs of loosening or deformation. Please perform appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation.  Increase the inspection frequency on areas where previous maintenance had occurred to ensure the problems do not occur again. DS323LT4 User Manual 12...

  • Page 15: Wall Mounting

     A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts.  Verify that the mounting location can support the weight of the LCD before installation.

  • Page 16: Connecting An External Video Source

    HDMI-IN on the back of the display shown the in the diagram below. Connect the other end of the HDMI cable to the HDMI output of the video source. Refer to your video device’s manual for additional information. DS323LT4 User Manual 14...
  • Page 17 Thermal: Extension Connector for optional Extension thermal kit (ETK203). *USB 2.0 port: A standardized port to connect a variety of devices like mouse, keyboard, and flash drive. Support USB storage devices formatted with NTFS, FAT32 (32G) file system. DS323LT4 User Manual 15...

  • Page 18: Powering On/Off The Display

    Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DS323LT4 User Manual 16...

  • Page 19: Using The Remote Control

    IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. The operating range of the remote control is 2.5 meters (8 feet). NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS323LT4 User Manual 17...
  • Page 20 Exit the current selection.  RIGHT Select the highlighted item.  DOWN Move the cursor down or change the setting of selected item.  Enter (for DSM365 only)  BACK Return to the last page. (for DSM365 only) DS323LT4 User Manual 18...
  • Page 21 OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS323LT4 User Manual 19...

  • Page 22: Navigating The On Screen Display (Osd) Menu

    Set the Failover 2 input to display. Input Source Only effective in Main input source. If the display didn’t get both of commend Command Detection and the input signal, it will change to Failover1 input. 2. Picture DS323LT4 User Manual 20...
  • Page 23 Backlight Auto Brightness the brightness of display will be adjusted according to the ambient light. When ambient light is bright, the screen will adjust to the High Level brightness value set; when ambient light is dark, DS323LT4 User Manual 21...
  • Page 24 Set the day of week. (Monday to Sunday) Time Time Zone Set the Time Zone. Power Control Automatic power on / off schedule function. Timer On Time 08:00 Set turn-on time. Off Time 18:00 Set turn-off time. DS323LT4 User Manual 22...
  • Page 25 Memory: Display will back to the last state when the power back after an outage. Set volume. Volume Range 100 – 0. Restore all settings to default. Reset Default Note: It does not modify CURRENT DATE, Setting CURRENT TIME, DATE OF WEEK, DS323LT4 User Manual 23...
  • Page 26 Good: Fan under normal working conditions Fan Status NG: A malfunction of the fan system. The Extension Thermal Kit (ETK203) is for Thermal Kit Temp. ambient temperature monitoring. Some functions may not be available for all models. DS323LT4 User Manual 24...

  • Page 27: Specifications

    OUT *1 I/O Ports USB port IN *2 RJ-45 IN *1 Extension Connector IN *1 (ESK only) (Mini USB) External Temp. sensor IN *1 (ETK only) Fuse Design and specifications are subject to change without notice. DS323LT4 User Manual 25...

  • Page 28: Input Mode

    60 Hz 1280 60 Hz 1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1400 1050 60 Hz 1440 60 Hz 1600 1200 60 Hz 1680 1050 60 Hz 1920 60 Hz 1920 1080 60 Hz DS323LT4 User Manual 26...

  • Page 29: Pin Assignments

    Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS323LT4 User Manual 27...

  • Page 30: Troubleshooting

    Cannot control the display  Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS323LT4 User Manual 28...
  • Page 31 Press the MENU button on either the rear panel control or remote control to show the OSD.  Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365]  ITEM DESCRIPTION  APPS Show the Installed APPS. DS323LT4 User Manual 29...
  • Page 32 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS323LT4 User Manual 30...
