DS552LT5-1

USER MANUAL

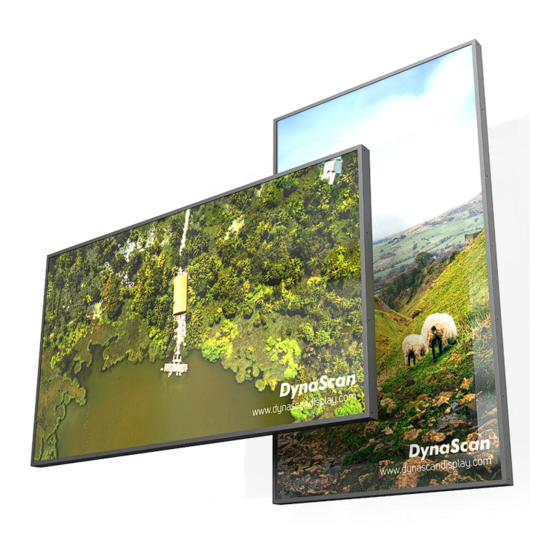

55" Clean Back Digital Signage

64426 | V2.02

Table of Contents

Need help?

Do you have a question about the DS552LT5-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynascan DS552LT5-1

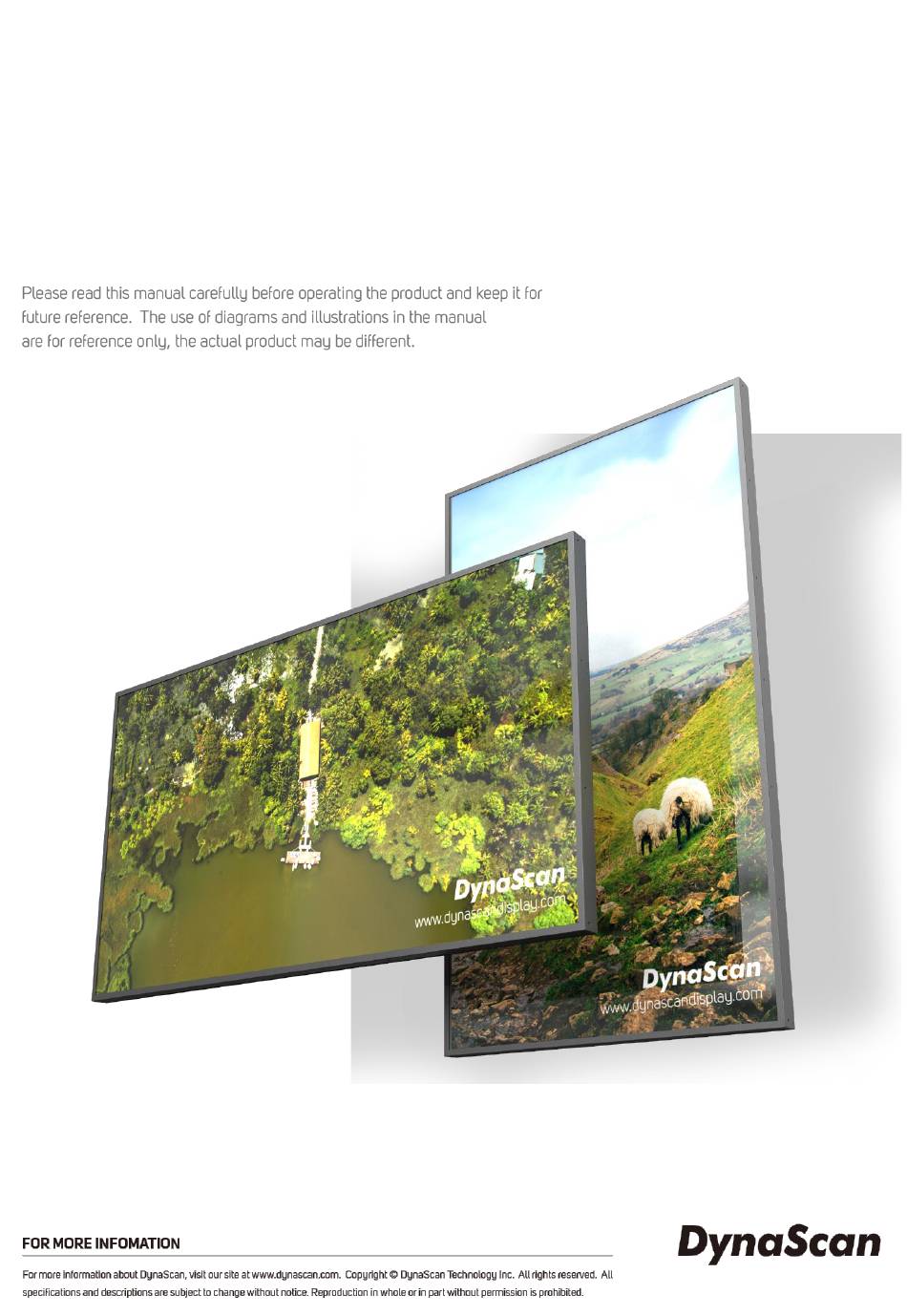

Page 1 DS552LT5-1 USER MANUAL 55” Clean Back Digital Signage 64426 | V2.02...
Page 2 Contents Material Contents Declaration ........................ 1 Recycling and Energy Information ......................1 Declaration of Conformity ........................2 Déclaration de conformité........................3 Safety Precautions ..........................4 Précautions relatives à la sécurité ......................5 Important Safety Information ........................6 Informations importantes relatives à la sécurité ..................7 Getting Started ............................
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations.
Page 4: Declaration Of Conformity
ETSI EN 300 328 V2.2.2 ETSI EN 301 489-1 V2.2.3 EN IEC 62311 :2020 ETSI EN 301 489-17 V3.2.4 - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DS552LT5-1 User Manual...
Page 5: Déclaration De Conformité
ETSI EN 301 489-1 V2.2.3 EN IEC 62311 :2020 ETSI EN 301 489-17 V3.2.4 - Bandes de fréquences et puissances a. WIFI 2,4G-2412~2462MHz. b. La puissance radiofréquence maximale transmise dans la bande 2,4 GHz est de 50 mW DS552LT5-1 User Manual...
Page 6: Safety Precautions
In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. Power cord shall be connected to a socket-outlet with earthing connection. DS552LT5-1 User Manual...
Page 7: Précautions Relatives À La Sécurité
Le cordon d'alimentation ne doit pas être connecté à la surface du bâtiment, ni traverser les murs, les plafonds, les planchers et les ouvertures similaires du bâtiment. Le cordon d'alimentation doit être connecté à une prise électrique mise à la terre DS552LT5-1 User Manual...
Page 8: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later.  Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ...
Page 9 Nettoyez l’arrière de l’écran LCD au moins une fois par mois afin d’éliminer la poussière et autres particules. Débranchez immédiatement l'écran LCD et contactez un réparateur professionnel certifié DynaScan dès que possible lorsque l'une des situations suivantes se produit :  Cordon d'alimentation ou fiche d'alimentation endommagé.
Page 10: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products.   DS552LT5-1 Professional LCD. Power cable x1 pc.  ...
Page 11: Bien Débuter
Vérifiez que les accessoires ci-dessous sont fournis avec l’écran. Si l'un d'eux est manquant, veuillez contacter immédiatement votre revendeur. La couleur et la forme des accessoires peuvent varier selon les produits.   É cran LCD DS552LT5-1 Professional. Câble d'alimentation x 1   Télécommande x 1 Guide de démarrage rapide x 1...
Page 12: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation.
Page 13 <Front> Portrait mode: Rotate the set clockwise 90° (mandatory)  The orientation sticker can be found on the rear of display, which is for distinguishing the direction of installation. DS552LT5-1 User Manual...
Page 14 Inspect the fasteners regularly for signs of loosening or deformation. Please perform appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation.  Increase the inspection frequency on areas where previous maintenance had occurred to ensure the problems do not occur again. DS552LT5-1 User Manual...
Page 15: Wall Mounting
 A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts.  Verify that the mounting location can support the weight of the LCD before installation.
Page 16: Connecting An External Video Source
DP-IN (or HDMI 1-IN, HDMI 2-IN) on the back of the display shown the in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DS552LT5-1 User Manual...
Page 17: Input/Output Terminals
Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device. *USB 3.0 port: A standardized port to connect a variety of devices like mouse, keyboard, and flash drive. Support USB storage devices formatted with NTFS, FAT32 (32G) file system. DS552LT5-1 User Manual...
Page 18: Powering On/Off The Display
Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DS552LT5-1 User Manual...
Page 19: Using The Remote Control
IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. The operating range of the remote control is 2.5 meters (8 feet). NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS552LT5-1 User Manual...
Page 20 Exit the current selection.  RIGHT Select the highlighted item.  DOWN Move the cursor down or change the setting of selected item.  Enter (for DSM365 only)  BACK Return to the last page. (for DSM365 only) DS552LT5-1 User Manual...
Page 21: Using The Built-In Keypad
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS552LT5-1 User Manual...
Page 22: Navigating The On Screen Display (Osd) Menu
Failover 3 DSM365 Set the Failover 3 input to display. Input Source Only effective in Main input source. If the display didn’t get both of commend Command Detection and the input signal, it will change to Failover1 input. DS552LT5-1 User Manual...
Page 23 16 to 235 levels for R/G/B, such as HDMI. "RGB Full" for video source uses all levels Black Level Limited from 0 to 255 levels. "Auto" is for detecting the video source to determine its value is applicable for "Limited" or "RGB Full". DS552LT5-1 User Manual...
Page 24 High Level Time 08:00 Set high level time. Low Level Time 18:00 Set low level time. Adjusts the contrast. UDR is the highest contrast. Local Dimming 1 is the lowest Local Dimming contrast. (Local Dimming 1/2, UDR) DS552LT5-1 User Manual...
Page 25 Set the day of week. (Monday to Sunday) Time Time Zone Set the Time Zone. Power Control Automatic power on / off schedule function. Timer On Time 08:00 Set turn-on time. Off Time 18:00 Set turn-off time. DS552LT5-1 User Manual...
Page 26 Enable/disable the remote control for Menu. Note: When disabled, the remote control function can be enabled again from IR Control the control panel on the display or through the DynaScan “Display Manager” application. Standby: Background processes are still running, and remote control in normal operation.
Page 27 Turn On: Create Password > Confirm Password > OSD Password Password Protection On Protection Turn Off: Enter Password > Password Protection Off Change OSD Enter Password > Enter New Password > Password Confirm New Password > Success DS552LT5-1 User Manual...
Page 28 The display’s serial number. Resolution Input resolution Information MCB Version The MCB version. FW Version The F/W version. The Extension Thermal Kit (ETK203) is for ETK Temp. ambient temperature monitoring. Some functions may not be available for all models. DS552LT5-1 User Manual...
Page 29: Specifications
IN *1 Audio OUT *1 I/O Ports USB port IN *1 RJ-45 IN *2 Micro SD Slot IN *1 Extension Connector IN *1 (ESK only) (Mini USB) Fuse Design and specifications are subject to change without notice. DS552LT5-1 User Manual...
Page 30: Input Mode
60 Hz 1280 60 Hz 1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1400 1050 60 Hz 1440 60 Hz 1600 1200 60 Hz 1680 1050 60 Hz 1920 60 Hz 1920 1080 60 Hz DS552LT5-1 User Manual...
Page 31: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS552LT5-1 User Manual...
Page 32: Troubleshooting
Cannot control the display  Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS552LT5-1 User Manual...
Page 33 Press the MENU button on either the rear panel control or remote control to show the OSD.  Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365]  ITEM DESCRIPTION  APPS Show the Installed APPS. DS552LT5-1 User Manual...
