Dynascan DW551DR4 User Manual

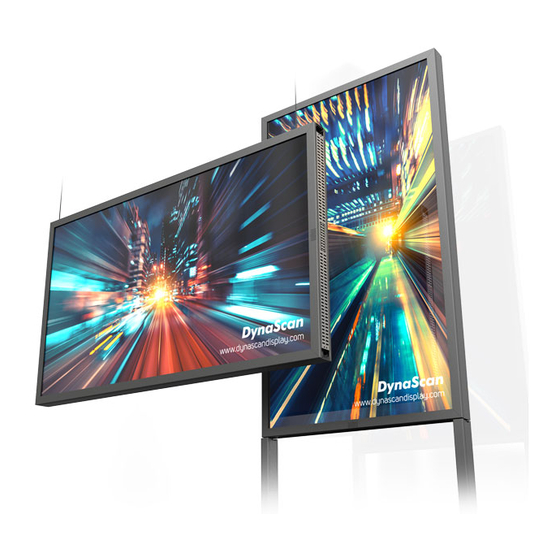

55” dual side digital signage display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DW551DR4
USER MANUAL
55" Dual Side Digital Signage Display
66501 | V2.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW551DR4 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynascan DW551DR4

Summary of Contents for Dynascan DW551DR4

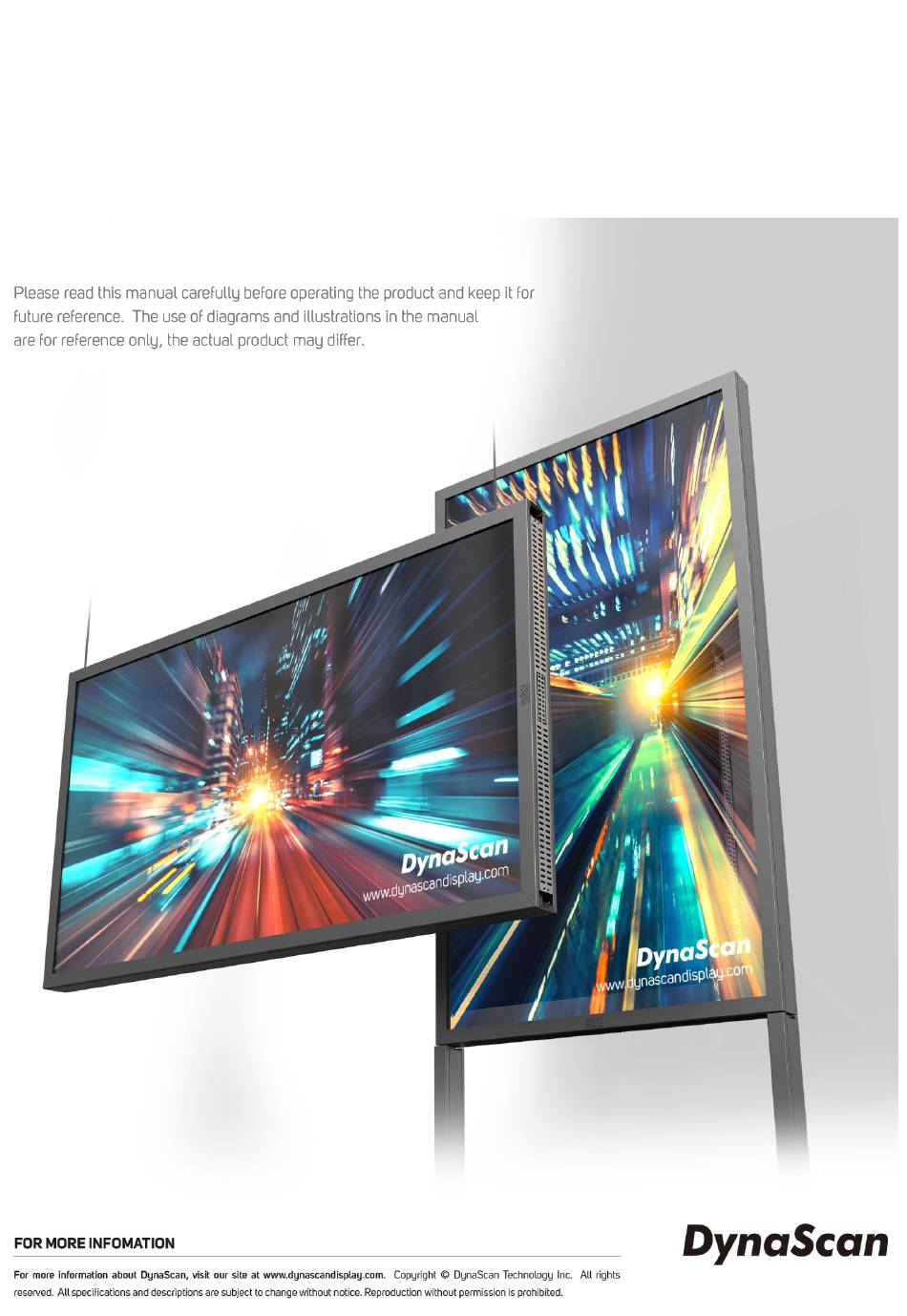

  • Page 1 DW551DR4 USER MANUAL 55” Dual Side Digital Signage Display 66501 | V2.02...
  • Page 2 Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Déclaration de conformité........................4 Safety Precautions ..........................5 Précautions relatives à la sécurité ......................6 Important Safety Information ........................7 Informations importantes relatives à la sécurité ..................8 Getting Started ............................

  • Page 3: Material Contents Declaration

    SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations.

  • Page 4: Declaration Of Conformity

    Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 7F, 66 Huaya 1st Road, Guishan, Taoyuan 33383,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community.

  • Page 5: Déclaration De Conformité

    Tout changement ou modification, non expressément approuvé par le responsable de la conformité, peut révoquer l’autorité de l'utilisateur à employer l'appareil en question. Nom du fabricant DynaScan Technology Corp. Adresse du fabricant 7F, 66 Huaya 1st Road, Guishan, Taoyuan 33383,Taï wan Cet appareil est conforme à...

  • Page 6: Safety Precautions

    Safety Precautions CAUTION Do not install near flammable material or any heat sources. Do not defeat the safety purpose of the grounding-type plug. Do not disassemble the display to avoid electrical shock or burn. Normal operating condition considers installation at an altitude below 2000m; some abnormalities may be experienced when installed at an altitude above 2000m.

  • Page 7: Précautions Relatives À La Sécurité

    Précautions relatives à la sécurité PRÉ CAUTIONS N'installez pas installer à proximité de matériaux inflammables ou de sources de chaleur. Ne pas compromettre la sécurité de la fiche de mise à la terre. Pour éviter tout choc électrique ou la brûlure, ne démontez pas l'écran. Le produit peut normalement être utilisé...

  • Page 8: Important Safety Information

    Handle the LCD with care. Save the packaging materials for transport later.  Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ...
  • Page 9 Nettoyez l’arrière de l’écran LCD au moins une fois par mois afin d’éliminer la poussière et autres particules. Débranchez immédiatement l'écran LCD et contactez un réparateur professionnel certifié DynaScan dès que possible lorsque l'une des situations suivantes se produit :  Cordon d'alimentation ou fiche d'alimentation endommagé.

  • Page 10: Getting Started

    Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products.   DW551DR4 Professional LCD. Power cable x1 pc.  ...

  • Page 11: Bien Débuter

    Bien débuter Contenu Vérifiez que les accessoires ci-dessous sont fournis avec l’écran. Si l'un d'eux est manquant, veuillez contacter immédiatement votre revendeur. La couleur et la forme des accessoires peuvent varier selon les produits.   É cran LCD DW651LR5 Professional. Câble d'alimentation x 1 ...

  • Page 12: Installation

    Mount applications. Please note that the display must be properly installed onto the stand (DynaScan optional kit) or well-connected with the hanging kit (DynaScan optional kit), details please refer to the display installation guide. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident.
  • Page 13 Orientation  DW551DR4 provides 3 different screen orientations for various environment applications. Portrait Flip, Portrait and Landscape mode can be distinguished by the corresponding position of I/O port in the figures below. Mode 1 : Portrait Flip...
  • Page 14 Installation Location  Do not install in a location with strong vibrations or dusty.  Do not install near the building’s main electric panel.  Ensure the LCD is secured in such a manner that it cannot be easily removed by the general public.

  • Page 15: Connecting To A Power Source

    Connecting to a Power Source Using the power cable provided, plug it in the power inlet which shown in the diagram below. Connect the power cable to a 100-240 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. A loose power connection may cause damage to the display and/or lead to a fire hazard.
  • Page 16 Input / Output Terminals RS-232 (IN): RS232C network input connection for remote control from PC. DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device via a DVI-HDMI cable. HDMI (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable. DP (IN): Connect the DP output of a PC or an AV device via a DP cable.

  • Page 17: Powering On/Off The Display

    Operating Instructions Powering On/Off the Display To turn on/off the display. Press the power switch on as shown in the diagram below. NOTE: The remote control only works when the power switch is ON.

  • Page 18: Using The Remote Control

    Using the Remote Control Connection using an External Sensor Kit (ESK302) Connect the ESK302 cable to the mini USB port, and aim the remote at the IR receiver as shown below. NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity.
  • Page 19         *Color and shape may vary by model. ITEM DESCRIPTION  POWER Power On / Off  MENU OSD On / Off  Move the cursor up or change the setting of selected item. ...

  • Page 20: Navigating The On Screen Display (Osd) Menu

    Navigating the On Screen Display (OSD) Menu Press the MENU button on the remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. *The change of each setting can only enable when you press “LEFT” (refer to p.18) to back to the last menu layer.
  • Page 21 Selects the black level to adjust the screen gray scale. "Limited" for video source uses Black Level RGB Full 16 to 235 levels for R/G/B, such as HDMI. "RGB Full" for video source uses all levels from 0 to 255 levels. 3.
  • Page 22 4. Backlight ITEM 1 ITEM 2 DEFAULT DESCRIPTION A. If the AUTO BRIGHTNESS is “Off”, the screen brightness will remain at HIGH LEVEL brightness value. B. If the AUTO BRIGHTNESS is “Auto”, the brightness of display will be adjusted according to the ambient light. When ambient light is bright, the screen Auto Brightness will adjust to the High Level brightness...
  • Page 23 Note: When disabled, the remote control function can be enabled again from IR Control the control panel on the display or through the DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function. Only [Main Power Switch]...
  • Page 24 6. Information 1 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Resolution Input resolution. The display’s model. Model DW551DR4 The display’s serial number. Serial Number Information 1 Hardware The H/W version. Firmware The F/W version. Color Depth The color depth of current input.
  • Page 25 8. Information 3 ITEM 1 ITEM 2 DEFAULT DESCRIPTION It will enter into protection mode when the display internal temperature is over heat. 65°C = Brightness 75%. Over Heat 67°C = Brightness 50%. Information 3 Inactive Protection 69°C = Brightness 10%. When the temperature is decreased to exit the protection, the brightness will restore to 100% and Over Heat Protection is disabled.

  • Page 26: Specifications

    Specifications MODEL DW551DR4 LCD Panel Size 54.64 inches Native Resolution 1920 x 1080 Brightness 1000 cd/m² (Typ.) / 3000 cd/m² (Typ.) Contrast Ratio 3,000:1 PANEL Response Time 8 ms (Typ.) Viewing Angle 178°/ 178° Life Time 100,000 hrs (Typ.) Panel Surface AR 1.5%, 2H...

  • Page 27: Input Mode

    Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz...

  • Page 28: Pin Assignments

    Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7...

  • Page 29: Troubleshooting

    Cannot control the display  Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance.
  • Page 30 About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, SD card or Internet. How to Switch to DSM365  Press the MENU button on either the rear panel control or remote control to show the OSD. ...
  • Page 31 Copyright © DynaScan Technology, Inc. All Rights Reserved.
