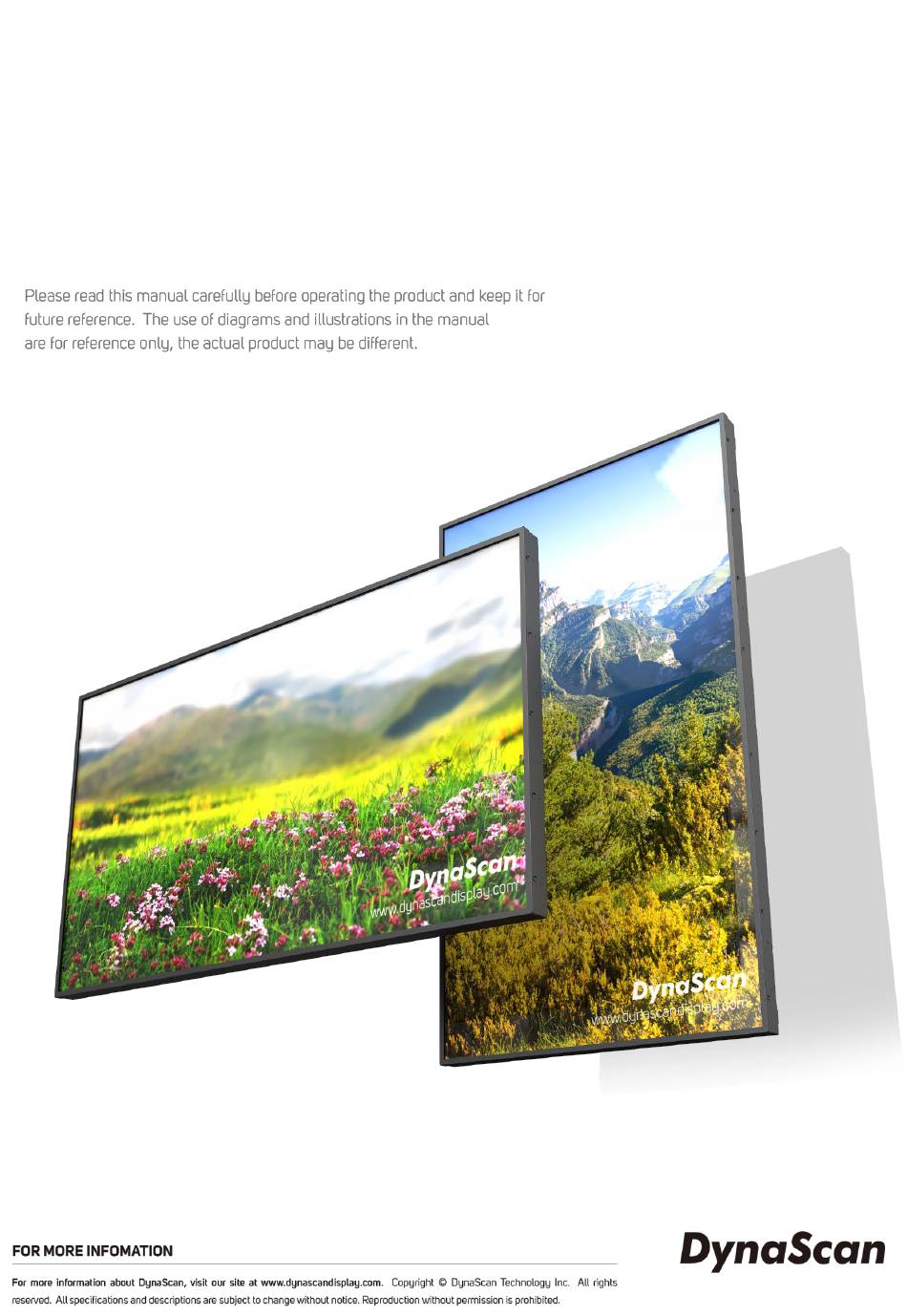

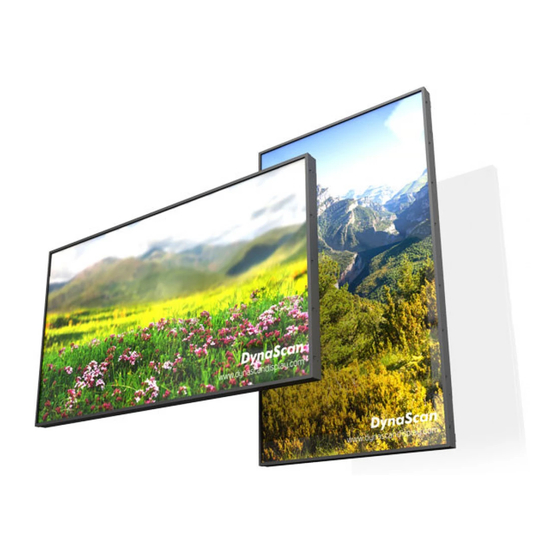

- Page 1 DS552LT5 USER MANUAL 55” 4000 Nits Ultra-High Brightness Digital Signage 64422 | V2.01...
-
Page 2: Table Of Contents
Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Safety Precautions ..........................4 Important Safety Information ........................5 Getting Started ............................6 Contents ............................. 6 Installing and Replacing Remote Control Batteries ................6 Installation............................... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 6F, No. 88 Wenmao Rd., Guishan Dist, Taoyuan City 333001,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community. -
Page 5: Safety Precautions
Safety Precautions CAUTION Do not install the display in a wet environment or place anything filled with liquid such as a vase or beverage on top of it. Do not install the display near flammable objects such as gasoline or other volatile liquids. -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... -
Page 7: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. DS552LT5 Professional LCD. Power cable x1 pc. ... -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 DS552LT5 Unit: mm Orientation When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. Portrait mode: Rotate the set clockwise 90° (mandatory) Installation Location ...
- Page 10 Single display Video wall When hanging from a ceiling Ensure that the ceiling is strong enough to support the LCD and it accessories. Earthquake, unexpected vibration and other external forces should be taken into consideration when evaluating the ceiling strength. ...
-
Page 11: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting Multiple Displays For Video Wall Applications
Note: The maximum number of DS552LT5’s in a Video Wall is 15 x 15. Note: The DynaScan “Display Manager” application is required to be installed on the PC in order to use the External Control feature. - Page 13 Video Source or DP, HDMI (OUT) RS-232 (OUT) DVI (OUT) or DP, HDMI (IN) RS-232 (IN) DVI (IN) DISPLAY 1 DVI (OUT) RS-232 (OUT) RS-232 (IN) DVI (IN) DISPLAY 2 DVI (OUT) RS-232 (OUT) RS-232 (IN) DVI (IN) DISPLAY 3...
-
Page 14: Input / Output Terminals
13. DVI (OUT): Output the signal from DVI IN. 14. RS-232 (OUT): RS232 control function for daisy chain application. 15. Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device. DS552LT5 ○ ○ ⑫... -
Page 15: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. -
Page 16: Using The Remote Control
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DS552LT5 model is at the rear of the display with a receiving angle of 100 degrees. The IR receiver configurations of the model are shown in the figure below. - Page 17 *Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off Move the cursor up or change the setting of selected item. ...
-
Page 18: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. -
Page 19: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. ITEM 1 ITEM 2 DEFAULT DESCRIPTION Main HDMI... - Page 20 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Current Date YYYY:MM:DD Set the date. Set the clock. Note: The internal clock will continue to Current Time HH:MM:SS function when the power is turned off. Time Power Control Turn on / off automatic power schedule Timer function.
- Page 21 ITEM 1 ITEM 2 DEFAULT DESCRIPTION To turn On / Off the auto brightness adjustment. Note: If the AUTO BRIGHTNESS is off, the screen brightness will remain at HIGH LEVEL brightness value. If the AUTO BRIGHTNESS is on (Auto), the display brightness adjusts according to the Auto Brightness ambient light.
- Page 22 Note: When disabled, the remote control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function. Only [Main Power Power Off Mode...
- Page 23 ITEM 1 ITEM 2 DEFAULT DESCRIPTION It will enter into protection mode when the display internal temperature is over heat. 56°C = Brightness 50%. 61°C = Brightness 25%. Over Heat Information 3 Inactive 66°C = Brightness 03%. Protection When the temperature is decreased to exit the protection, the brightness will restore to 100% and Over Heat Protection is disabled.
-
Page 24: Specifications
Specifications MODEL DS552LT5 LCD Panel Size 54.64 inches Native Resolution 1920 x 1080 Brightness 3500 cd/m² (Typ.) Contrast Ratio 3,000:1 PANEL Response Time 9 ms (Typ.) Viewing Angle 178°/ 178° Life Time 100,000 hrs (Typ.) Panel Surface AR 1.5%, 2H... -
Page 25: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz... -
Page 26: Pin Assignments
Pin Assignments Digital RGB Output (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR TX2- TX1- TX0- TX2+ TX1+ TX0+ Shield (TX2 / TX4) Shield (TX1 / TX3) Shield (TX0 / TX5) DDC-Serial Clock +5V power Shield (TXC) DDC-Serial Data Ground TXC+ Hot plug detect TXC- Digital RGB Input (DVI-D): DVI... -
Page 27: Rs-232 Output
RS-232 Output PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7... -
Page 28: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. -
Page 29: About Dsm365
About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, Micro SD card or Internet. How to Switch to DSM365 Press the MENU button on either the rear panel control or remote control to show the OSD. ... - Page 30 Copyright © DynaScan Technology, Inc. All Rights Reserved.
