Chapter 4. Installation
Maximum input level: 250mVrms
SD Card Slot
4.6.7
The QuickPanel+ is equipped with one standard SD Card port. SD/SDHC memory cards are
supported. The SD card slot is spring loaded for easy insertion and removal.
4.6.7.1 Storage Details
Connectors: SD card slot (push in - push out method)
Card support: SD / SDHC memory card
Maximum capacity: 32GB

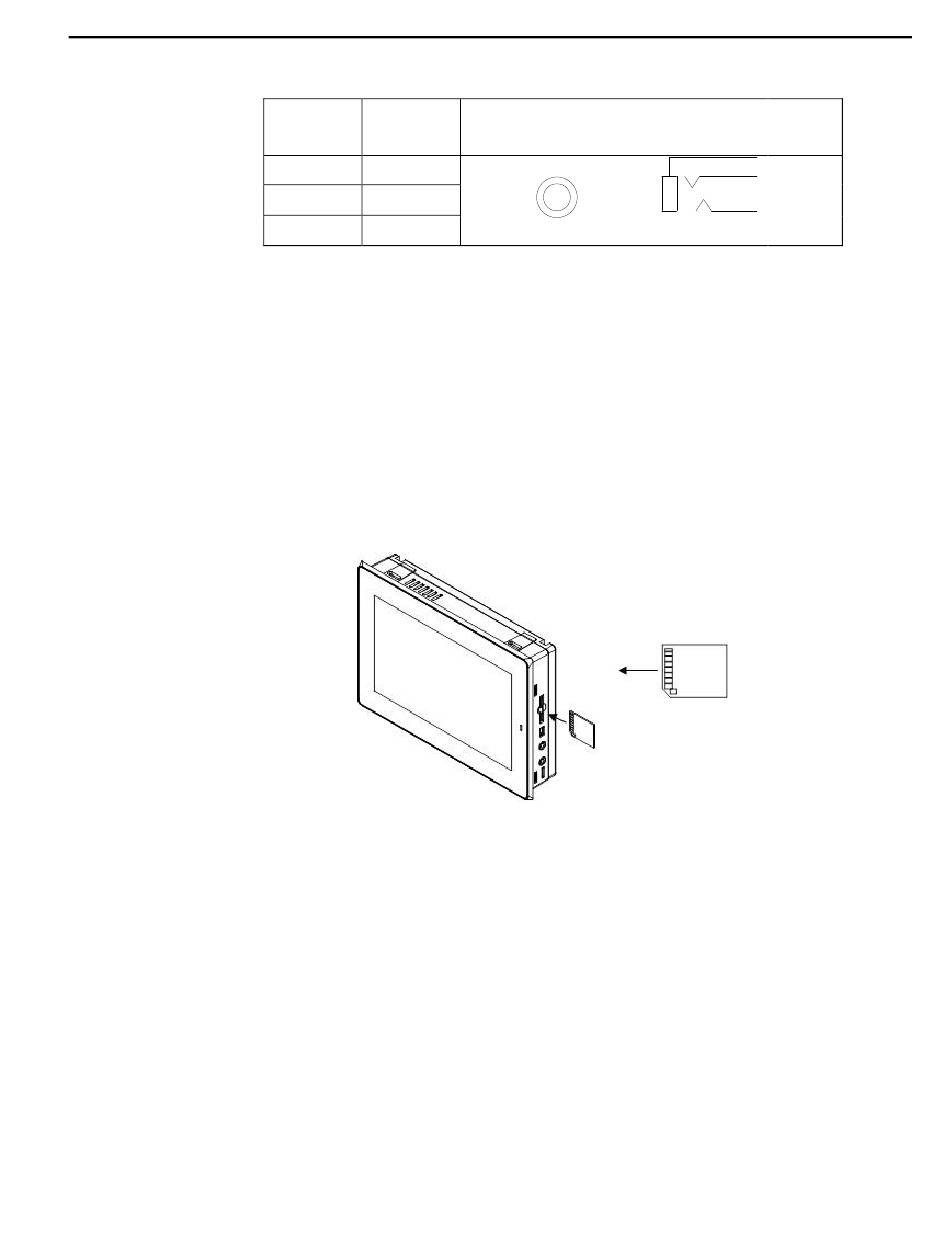

Note the orientation of the SD card in the diagram below when inserting.
28
Pin
Signal
Number
Name
1
GND
2
NC
3
MIC
QuickPanel+ User's Manual–November 2013
Pin-out
1
2
3
GFK-2847
