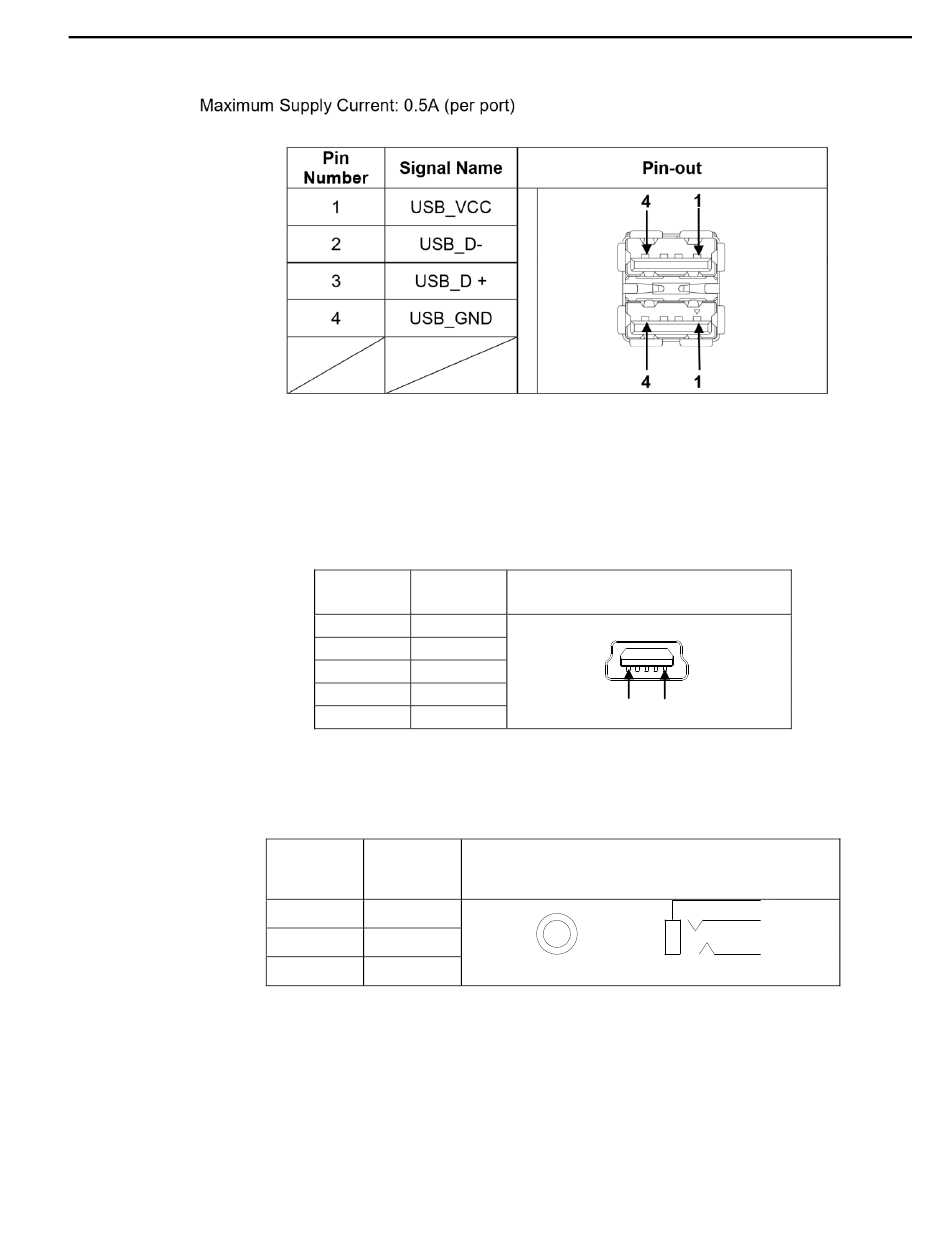

4.6.4.2 USB Device Port Details
The USB device port allows the QuickPanel+ operator interface to be used as slave device.
Interface: USB2.0
Number of Ports: One
Connector: Type-B Mini connector

Audio (LINE OUT) Details

4.6.5
Interface: LINE OUT (stereo)
Connector: φ3.5 mm Jack
Maximum output level: 1Vrms

Audio (MIC IN) Details

4.6.6
Interface: MIC IN (monaural)
Connector: φ3.5 mm Jack
GFK-2847
Pin Signal
Number Name
1 VCC
2 D-
3 D+
4 NC
5 GND
Pin Signal
Number Name
1 GND
2 Lineout R
3 Lineout L
QuickPanel+ User's Manual–November 2013
Chapter 4. Installation
Pin-out
5 1
Pin-out
1
2
3
