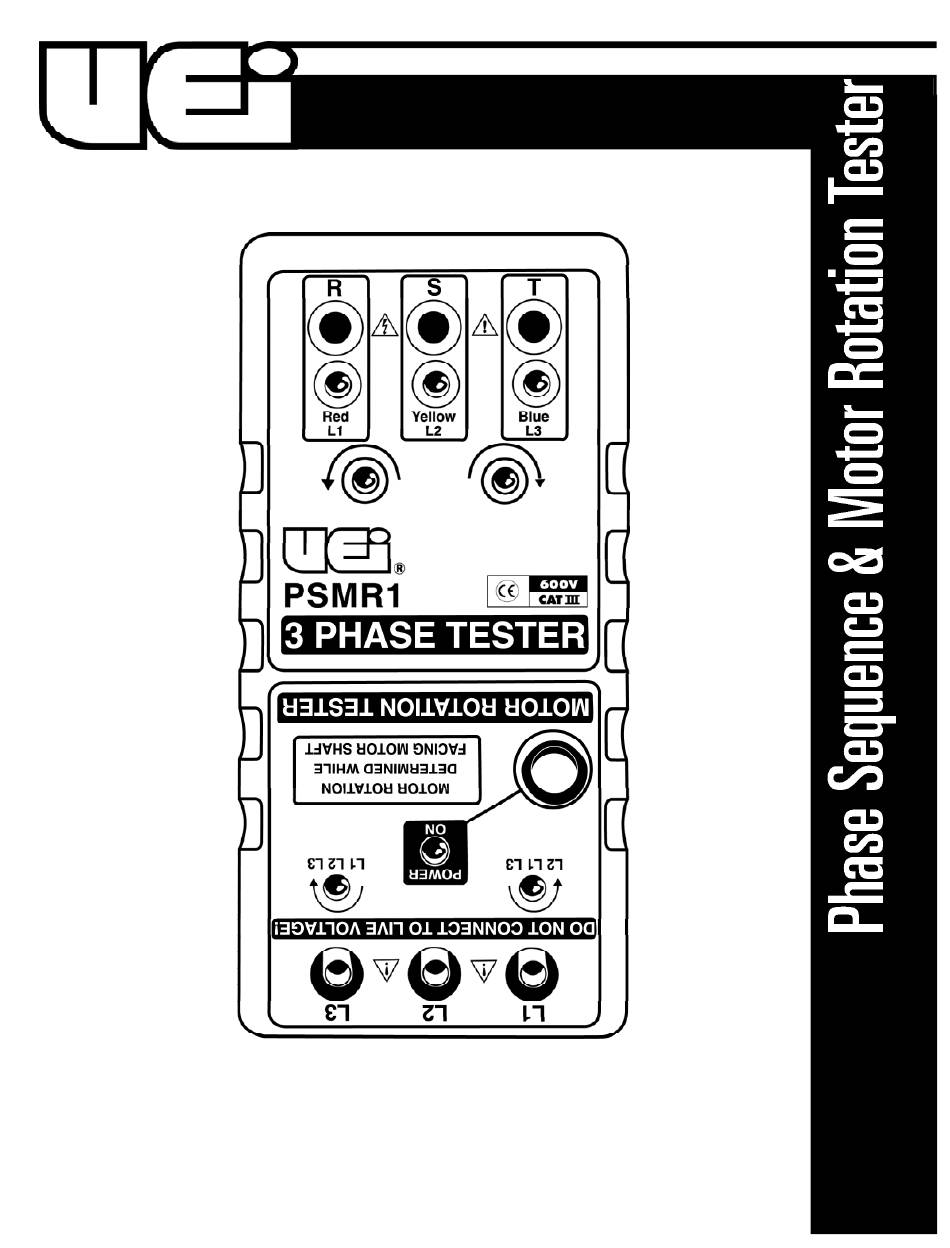

- Page 1 INSTRUCTION MANUAL PSMR1 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • email: info@ueitest.com...
-
Page 2: Safety Notes
All the information you need in one device. Verify correct wiring to avoid damage. Use the PSMR1 to check supply line phase orientation for devices such as scroll compressors or motors. Works on 45-70 Hz and on voltages between 100 and 600 VAC. Five indicators give you information about open phases, and indicate the sequence of the three lines. -
Page 3: Specifications
153mm x 72mm x connection to the power supply by L1 - L2 - L3, the 35mm 3-phase motor will rotate clockwise. Weight: Approx. 182g including battery Accessories: Test leads (red, yellow and blue), soft carrying case, instruction manual PSMR1-MAN P. 2... -
Page 4: Maintenance
Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents. If the meter is not to be used for periods of longer than 60 days, remove the battery and store them separately. PSMR1-MAN P. 3... -
Page 5: Limited Warranty
Phase Sequence & Motor Rotation tester Limited Warranty The PSMR1 is warranted to be free from defects in materials and workmanship for a period of three years from the date of purchase. If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UE i ’...
