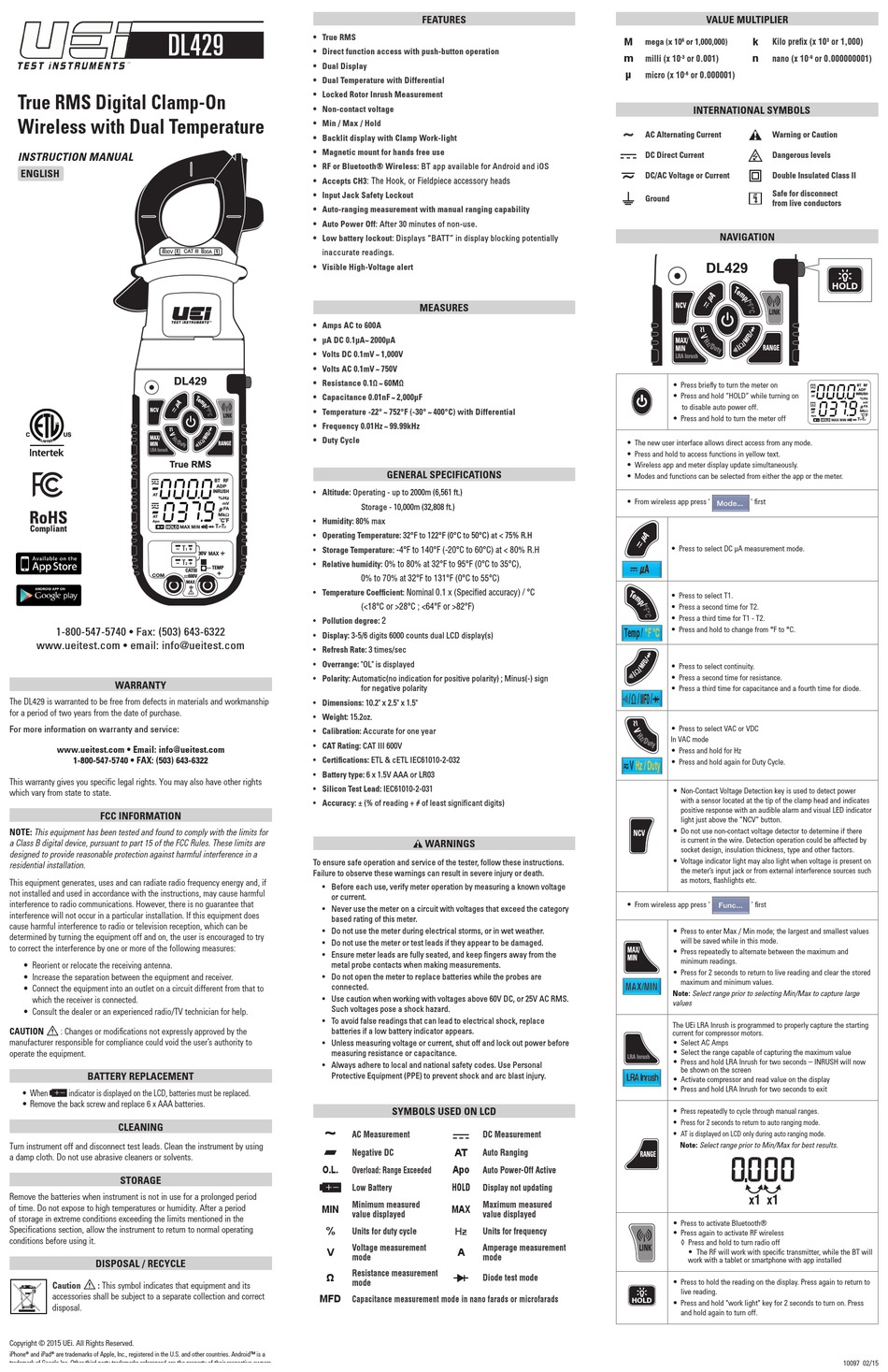

UEi DL429 Instruction Manual

DL429

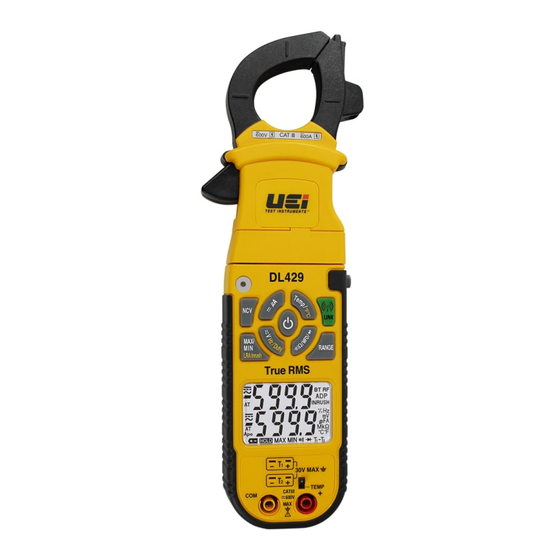

True RMS Digital Clamp-On
Wireless with Dual Temperature
INSTRUCTION MANUAL
ENGLISH
600V
DL429
NCV
MAX/
MIN
LRA Inrush
True RMS
1-800-547-5740 • Fax: (503) 643-6322
www.ueitest.com • email: info@ueitest.com
WARRANTY
The DL429 is warranted to be free from defects in materials and workmanship
for a period of two years from the date of purchase.
For more information on warranty and service:
www.ueitest.com • Email: info@ueitest.com
1-800-547-5740 • FAX: (503) 643-6322
This warranty gives you specific legal rights. You may also have other rights
which vary from state to state.
FCC INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION : Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user's authority to
operate the equipment.
BATTERY REPLACEMENT
• When indicator is displayed on the LCD, batteries must be replaced.
• Remove the back screw and replace 6 x AAA batteries.
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period
of time. Do not expose to high temperatures or humidity. After a period
of storage in extreme conditions exceeding the limits mentioned in the
Specifications section, allow the instrument to return to normal operating
conditions before using it.
DISPOSAL / RECYCLE
Caution :
This symbol indicates that equipment and its
accessories shall be subject to a separate collection and correct
disposal.
Copyright © 2015 UEi. All Rights Reserved.
iPhone and iPad are trademarks of Apple, Inc., registered in the U.S. and other countries. Android™ is a
® ®
trademark of Google Inc. Other third party trademarks referenced are the property of their respective owners.
• True RMS
• Direct function access with push-button operation
• Dual Display
• Dual Temperature with Differential
• Locked Rotor Inrush Measurement
• Non-contact voltage
• Min / Max / Hold
• Backlit display with Clamp Work-light
• Magnetic mount for hands free use
• RF or Bluetooth® Wireless: BT app available for Android and iOS
• Accepts
• Input Jack Safety Lockout
• Auto-ranging measurement with manual ranging capability
• Auto Power
• Low battery
inaccurate readings.
CAT Ill
600A
• Visible High-Voltage alert
• Amps AC to 600A
• µA DC 0.1µA~ 2000µA
• Volts DC 0.1mV ~ 1,000V
• Volts AC 0.1mV ~ 750V
• Resistance 0.1Ω ~ 60MΩ
• Capacitance 0.01nF ~ 2,000µF
• Temperature -22° ~ 752°F (-30° ~ 400°C) with Differential
LINK
• Frequency 0.01Hz ~ 99.99kHz
• Duty Cycle
RANGE
BT RF
• Altitude:
INRUSH
• Humidity:
T -T
1 2
• Operating Temperature:
T • Storage Temperature:
1
30V
T
• Relative humidity:
2
TEMP
CATIII
600V
MAX
• Temperature Coefficient:
• Pollution degree:
• Display:
• Refresh Rate:
• Overrange:
• Polarity:
• Dimensions:
• Weight: 15.2oz.
• Calibration:
• CAT Rating:
• Certifications:
• Battery type:
• Silicon Test Lead:
• Accuracy:
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring a known voltage
or current.
• Never use the meter on a circuit with voltages that exceed the category
based rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from the
metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes are
connected.
• Use caution when working with voltages above 60V DC, or 25V AC RMS.
Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock, replace
batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lock out power before
measuring resistance or capacitance.
• Always adhere to local and national safety codes. Use Personal
Protective Equipment (PPE) to prevent shock and arc blast injury.
~
O.L.
MIN
%
V
Ω
MFD
FEATURES
CH3: The Hook, or Fieldpiece accessory heads
Off: After 30 minutes of non-use.
lockout: Displays "BATT" in display blocking potentially
MEASURES
GENERAL SPECIFICATIONS
Operating - up to 2000m (6,561 ft.)
Storage - 10,000m (32,808 ft.)
80% max
32°F to 122°F (0°C to 50°C) at < 75% R.H
-4°F to 140°F (-20°C to 60°C) at < 80% R.H
0% to 80% at 32°F to 95°F (0°C to 35°C),
0% to 70% at 32°F to 131°F (0°C to 55°C)
Nominal 0.1 x (Specified accuracy) / °C
(<18°C or >28°C ; <64°F or >82°F)
2
3-5/6 digits 6000 counts dual LCD display(s)
3 times/sec
"OL" is displayed
Automatic(no indication for positive polarity) ; Minus(-) sign
for negative polarity
10.2" x 2.5" x 1.5"
Accurate for one year
CAT III 600V
ETL & cETL IEC61010-2-032
6 x 1.5V AAA or LR03
IEC61010-2-031
± (% of reading + # of least significant digits)
WARNINGS
SYMBOLS USED ON LCD
AC Measurement DC Measurement
AT
Negative DC Auto Ranging
Apo
Overload: Range Exceeded Auto Power-Off Active
HOLD
Low Battery Display not updating
Minimum measured Maximum measured
MAX
value displayed value displayed
Units for duty cycle Units for frequency
Voltage measurement Amperage measurement
A
mode mode
Resistance measurement
Diode test mode
mode
Capacitance measurement mode in nano farads or microfarads
VALUE MULTIPLIER
M k
mega (x 10 6 or 1,000,000) Kilo prefix (x 10
m n
milli (x 10 or 0.001) nano (x 10
-3
µ
micro (x 10 or 0.000001)
-6
CAT Ill
600V 600A
INTERNATIONAL SYMBOLS
~
AC Alternating Current Warning or Caution
DC Direct Current Dangerous levels
DC/AC Voltage or Current Double Insulated Class II
Safe for disconnect
Ground
from live conductors
NAVIGATION
DL429
NCV
LINK
MAX/
MIN RANGE
LRA Inrush
True RMS
• Press briefly to turn the meter on
• Press and hold "HOLD" while turning on BT RF
to disable auto power off.
INRUSH
• Press and hold to turn the meter off
• The new user interface allows direct access from any mode.
T -T
• Press and hold to access functions in yellow text.
1 2
• Wireless app and meter display update simultaneously.
• Modes and functions can be selected from either the app or the meter.
T
1
30V
T
• From wireless app press ' ' first
2
TEMP
CATIII
600V
MAX
• Press to select DC µA measurement mode.
• Press to select T1.
• Press a second time for T2.
• Press a third time for T1 - T2.
• Press and hold to change from °F to °C.
• Press to select continuity.
• Press a second time for resistance.
• Press a third time for capacitance and a fourth time for diode.
• Press to select VAC or VDC
In VAC mode
• Press and hold for Hz
• Press and hold again for Duty Cycle.
• Non-Contact Voltage Detection key is used to detect power
with a sensor located at the tip of the clamp head and indicates
positive response with an audible alarm and visual LED indicator
light just above the "NCV" button.
• Do not use non-contact voltage detector to determine if there
NCV
is current in the wire. Detection operation could be affected by
socket design, insulation thickness, type and other factors.
• Voltage indicator light may also light when voltage is present on
the meter's input jack or from external interference sources such
as motors, flashlights etc.
• From wireless app press ' ' first
• Press to enter Max / Min mode; the largest and smallest values
will be saved while in this mode.
MAX/
• Press repeatedly to alternate between the maximum and
MIN
minimum readings.
• Press for 2 seconds to return to live reading and clear the stored
maximum and minimum values.
Note: Select range prior to selecting Min/Max to capture large
values
The UEi LRA Inrush is programmed to properly capture the starting
current for compressor motors.
• Select AC Amps
• Select the range capable of capturing the maximum value
LRA Inrush
• Press and hold LRA Inrush for two seconds – INRUSH will now
be shown on the screen
• Activate compressor and read value on the display
• Press and hold LRA Inrush for two seconds to exit
• Press repeatedly to cycle through manual ranges.
• Press for 2 seconds to return to auto ranging mode.
• AT is displayed on LCD only during auto ranging mode.
Note: Select range prior to Min/Max for best results.
RANGE
x1 x1
• Press to activate Bluetooth®
• Press again to activate RF wireless
◊ Press and hold to turn radio off
LINK
• The RF will work with specific transmitter, while the BT will
work with a tablet or smartphone with app installed
• Press to hold the reading on the display. Press again to return to
live reading.
HOLD
• Press and hold "work light" key for 2 seconds to turn on. Press
and hold again to turn off.
or 1,000)
3
or 0.000000001)
-9
CAT Ill
600V 600A
HOLD
DL429
NCV
LINK
MAX/
MIN RANGE
LRA Inrush
True RMS
BT RF
INRUSH
T -T
1 2
T
1
30V
T
2
TEMP
CATIII
600V
MAX
10097 02/15
