Summary of Contents for UEi CEA

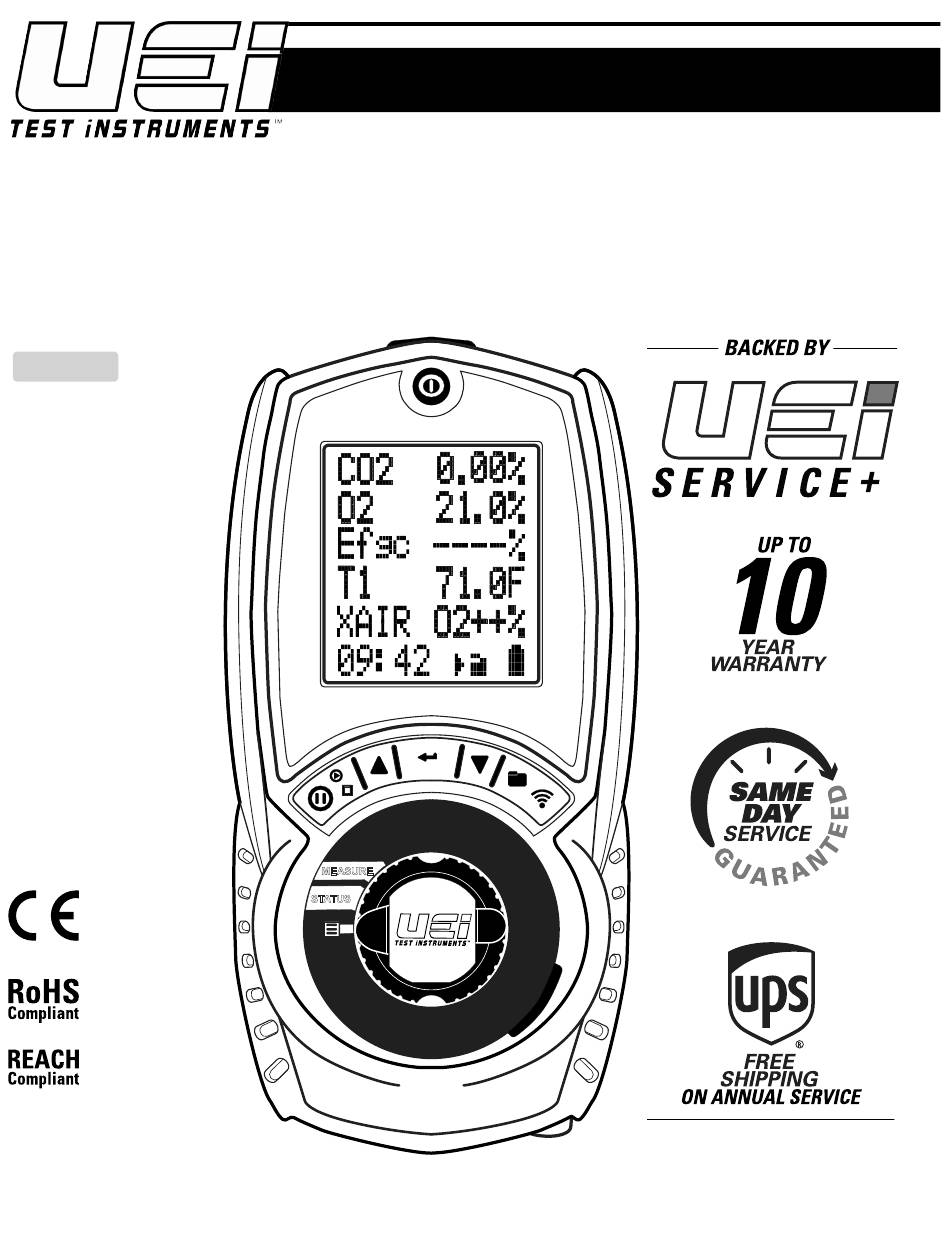

- Page 1 Combustion Efficiency Tester INSTRUCTION MANUAL ENGLISH MEASURE STATUS 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • Email: info@ueitest.com...
-
Page 2: Table Of Contents
A large 6 line display provides the user with relevant information based on current activity including instrument status via the new intelligent Status Bar. All data can be printed via an optional infrared printer. The CEA uses a data storage system allowing you to store up to 45 test logs. GENERAL SPECIFICATIONS 32˚... -
Page 3: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Read entire Safety Notes section regarding potential hazard and proper instructions before using this analyzer. In this manual the word “WARNING” is used to indicate conditions or actions that may pose physical hazards to the user. The word “CAUTION” is used to indicate conditions or actions that may damage this instrument. -
Page 4: Analyzer Overview

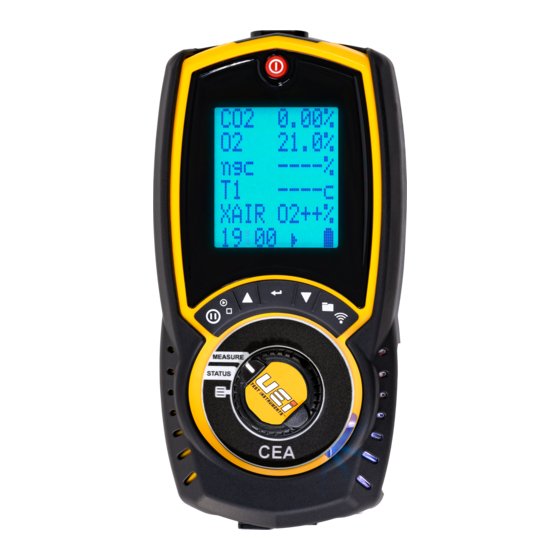

ANALYZER OVERVIEW A. Infrared Printer Port B. On/ Off (Power) Button C. 6 Line Backlit Display • Press any button to turn Back light on (will turn off after 10 seconds) D. Protective Rubber Boot With Magnets E. Status Bar Line F. - Page 5 ANALYZER OVERVIEW (CONT.) Sensors Fitted: MEASURE STATUS Red Connector (plugs into Flue Gas Inlet) Flue Probe Temperature Plug (Plugs into T1) Flue Probe Narrow Pin MUST Gas Inlet Plug be on the Right side.
-
Page 6: Pre Test Checklist
PRE TEST CHECKLIST • Clean particle filter • Flue gas probe is sampling ambient FRESH air • Water trap and probe line are empty of water • Water trap is fitted correctly to the instrument • Power on and zero •... -
Page 7: Display Symbols
ANALYZER SYMBOLS Power Button Navigate Down Pump Pause Save Log Pump Start Print Pump Stop Menu Screen Navigate Up Maximum Water Level In Trap Enter Key WARNING Dangerous Conditions DISPLAY SYMBOLS BATTERY LEVEL: Readings may be affected if used with low Not fitted. -
Page 8: Menu Screen
MENU SCREEN Using the Menu The Menu position on the Rotary Dial allows users to customize the default settings. Navigate through the Menu using the interface buttons ( , and As you navigate up or down through the Menu, the items will scroll accordingly, eventually back to the beginning. MEASURE STATUS Arrows indicate option... -
Page 9: Status Screen
STATUS SCREEN The large six-line display has 5 lines of readings and a status bar. The backlight will activate on each button press and turn off after 10 seconds of no activity. This can be changed in the Utility screen under MENU (see page 8). Button presses are categorized as Press (short/quick press) and Press and Hold (Press for 2 seconds then release). -
Page 10: Measure Screen
MEASURE SCREEN The CEA measures basic combustion parameters. Select the CEA position on the rotary dial position. CO2 = Carbon Dioxide in % O2 = Oxygen in % MEASURE Efgc = Efficiency STATUS T1 = Temperature Excess Air = (Excess Air, O2++ displayed in %) -
Page 11: Stored Logs Memory
STORED LOGS MEMORY The CEA stores LOGS sequentially until the memory is full. To view current memory LOGS, Rotate dial to MENU screen -----> Press the Buttons to scroll to LOGS, Press Combustion LOG = Number saved MEASURE STATUS Total Memory Used =... -
Page 12: Specifications
The following harmonized standards and technical specifications have been applied: CERTIFICATION The UEi CEA is TUV-tested and certified to EN 50379, Parts 1, 2 & 3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV). Manufactured to meet AHRI 1260 standard. -
Page 13: Powering Off
20.9%, CO to Zero (Be careful the probe tip will be HOT). POWERING OFF When you power off the CEA, there is a 45 second purge. MEASURE STATUS Make sure you do not exceed the analyzer’s operating specifications. In particular: •... -
Page 14: Replacing The Batteries
REPLACING THE BATTERIES This meter has been designed for use with both alkaline and rechargeable Nickel Metal Hydride (NiMH) batteries. No other types are recommended and will void warranty. The analyzer is supplied with 3 (AA) size NiMH rechargeable batteries. These should be installed into the instrument. -
Page 15: Usa Annual Recertification Services
Same Day Service: All qualifying analyzers received for recertification through UEi Service+ are returned on the same business day, GUARANTEED . Free Shipping: UEi Service+ offers free shipping both to and from our service center . When customers book their recertification, they receive a prepaid UPS Ground shipping label . -
Page 16: Disposal
WARRANTY: The CEA is warranted to be free from defects in materials and workmanship for a period of 1 year from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
