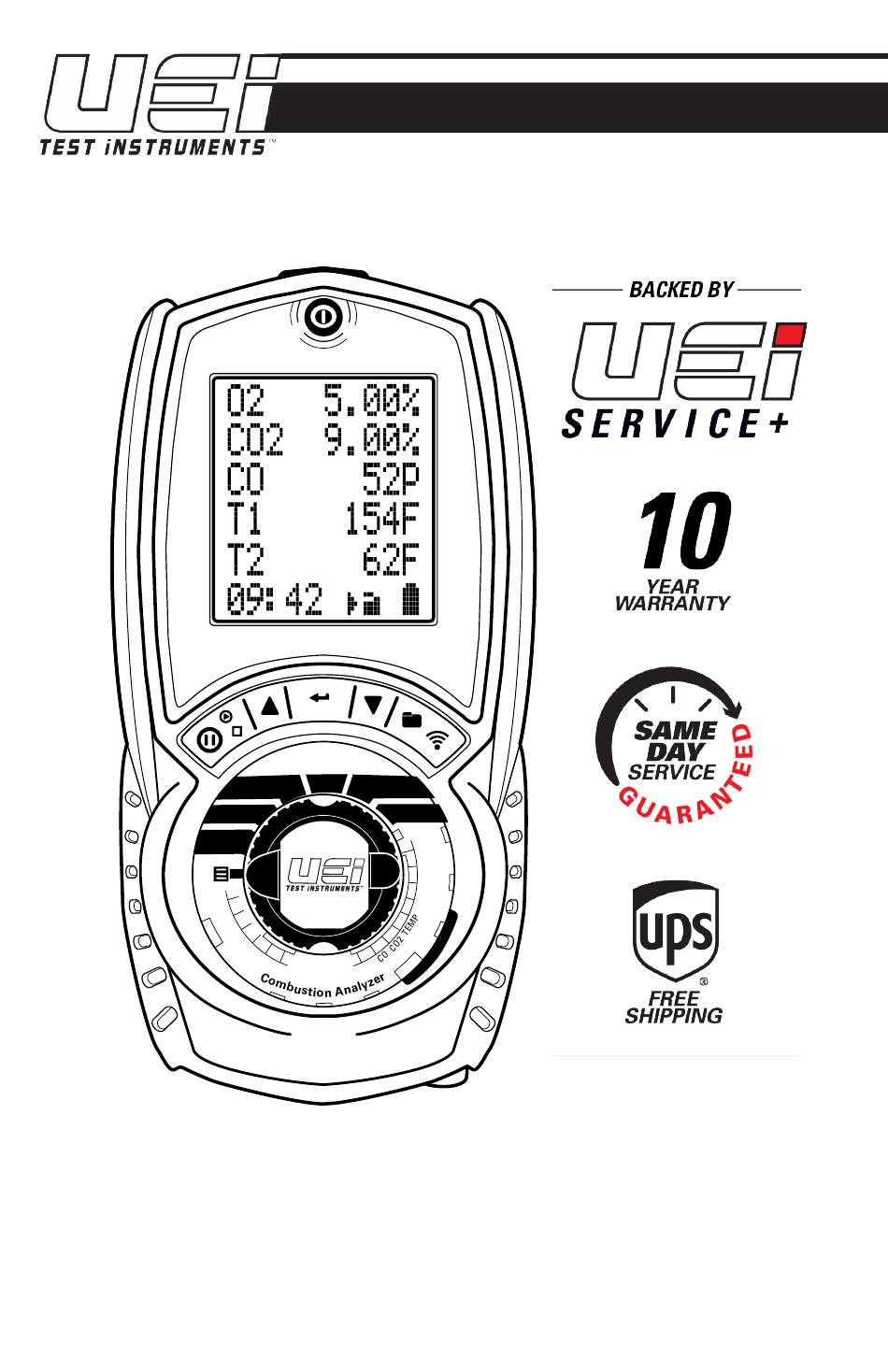

- Page 1 Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com C161 Q uiCk tart uide CO/CO2 O2/Eff Temp Exch Test Status C161 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • Email: info@ueitest.com...
- Page 2 C161 OVERVIEW Power button Display lines 1 through 6 Protective boot with built-in magnets Status bar line Navigation Log & Print Pump CO/CO2 screens Temperature screen O2/Eff screens CO/CO2 Temp O2/Eff Auxiliary screen Exch Test Status screen Status Menu screen LED Water Trap Full C161 Indication...
-
Page 3: Status Screen
MENU SCREEN - C161 START UP Press ”Power” Button for 2 seconds. The analyzer will perform a 60 second purge. This should be done in fresh air. Rotate Selector Dial to MENU to set up or customize your settings. Selected parameter are centered, highlighted with arrow icons on either side. -
Page 4: Before Testing
BEFORE TESTING CHECKLIST o Clean particle filter o Water trap and probe line are free of water o All hose and thermocouple connections are properly secured o Water trap is fitted correctly Remove the rubber boot and red Remove protective rubber boot. o Power on and zero drain plug. -
Page 5: Auxiliary Screen
CHANGE FUEL TYPE CO/CO2 O2/Eff Temp Exch Test Status C161 Rotate the dial to either AUX, Press button until the Fuel Press buttons to O2/Eff, CO/CO2 or TEMP Type displays on the Status Bar. scroll fuel selections. setting. Press and Hold until two Press to select fuel. - Page 6 PRINTING & LOGGING To Print: Align printer (sold To Log: During testing, Press and During testing, Press to start separately) above Analyzer. printing. Hold to log a report. To view these Logs, see View Press again to abort. Saved Logs section. C161 C161 C161...
-
Page 7: Warranty
Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss. - Page 8 Same Day Service: All qualifying analyzers received for recertification through UEi Service+ are returned on the same business day, GUARANTEED. Free Shipping: UEi Service+ offers free shipping both to and from our service center. When customers book their recertification, they receive a prepaid UPS Ground shipping label.
