- Page 1 IRT803 600V AC/DC Digital Insulation Resistance Tester INSTRUCTION MANUAL ENGLISH IRT803 0.1 M 10 M 100 M 20 G SELECT TEST HOLD 1000V ZERO 500V 250V 100V ZERO INSULATION CAT IV 600V FUSED CAT III 1000V 600V 1-800-547-5740 www.ueitest.com email: info@ueitest.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FEATURES ..............................3 GENERAL SPECIFICATIONS ........................3 IMPORTANT SAFETY WARNINGS .......................4 SYMBOLS ..............................5 CATEGORY DEFINITIONS ........................5 OVERVIEW ............................6 - 7 OPERATING INSTRUCTIONS Voltage <600V AC/DC ......................... 7 Earth-Bond Resistance <20kΩ ..................... 8 Continuity ............................ 9 Insulation Resistance/1000V/ 500V/ 250V/ 100V ..............10 Polarization Index &... -
Page 3: Features
IRT803 Insulation resistance tester is designed to help prevent hazards such as electric shock and short-circuits caused when the insulation in electrical devices, parts, and equipment used in plants, buildings, and other settings degrades over long periods of use. FEATURES •... -
Page 4: Important Safety Warnings
IMPORTANT SAFETY WARNINGS WARNING Read entire Safety Notes section regarding potential hazard and proper instructions before using this meter. In this manual the word “WARNING” is used to indicate conditions or actions that may pose physical hazards to the user. The word “CAUTION”... -
Page 5: Symbols
SYMBOLS DC (Direct current) AC (Alternating Current) Auto Power Off Active Negative DC Low Battery High Voltage Voltage Continuity COMPARE Ohms/Resistance Compare Warning or Caution Pass Fuse Test RUN TIME Kilo Run Time Mega Hold Giga Lock PI/DAR Greater Than ZERO Ground 30 Segment Bargraph... -
Page 6: Overview

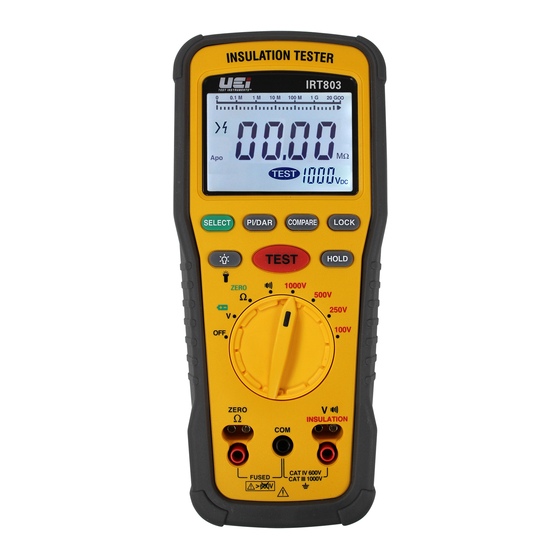

OVERVIEW AND OPERATING INSTRUCTIONS IRT803 SELECT TEST HOLD 1000V ZERO 500V 250V 100V ZERO INSULATION CAT IV 600V FUSED CAT III 1000V 600V A. Worklight: Lights work area in dark environments. B. Display: High contrast and backlit. C. Apo: Auto power off after 10 minutes of use D. -
Page 7: Voltage <600V Ac/Dc
P. Battery and Fuse Cover: (under protective rubber boot) Q. Serial Number (under kick stand) Voltage <600V AC/DC If the meter detects higher than AC or DC 1.5V, the meter will automatically choose AC or DC. IRT803 SELECT SELECT TEST... -
Page 8: Earth-Bond Resistance <20Kω
Earth-Bond Resistance <20kΩ IRT 803 IRT803 SELECT SELECT TEST HOLD 1000V ZERO 500V TEST 250V 100V • Default = • Press x1 = ZERO INSULATION CAT IV 600V FUSED CAT III 1000V 600V • Short the ends of the test leads together, press the SELECT button and wait until ZERO appears. The meter measures the test leads resistance, stores the data/results in memory and subtracts it from the reading. -
Page 9: Continuity
Continuity IRT803 IRT803 SELECT TEST HOLD 1000V ZERO 500V 250V 100V • Default = ZERO INSULATION CAT IV 600V FUSED CAT III 1000V 600V Features: HOLD WARNING • Do not measure resistance/continuity on a live circuit. • Beeper sounds constant as long as circuit is complete. -
Page 10: Insulation Resistance/1000V/ 500V/ 250V/ 100V
Insulation Resistance/1000V/ 500V/ 250V/ 100V 1000V ZERO IRT803 IRT803 500V 250V 0.1 M 10 M 100 M 20 G 100V TEST 1000V ZERO 500V SELECT 250V 100V TEST HOLD 1000V ZERO 500V 250V • Default = 100V 1000V ZERO 500V... -
Page 11: Polarization Index & Dielectric Absorption Ratio (1000V, 500V, 250V, 100V)
Polarization Index & Dielectric Absorption Ratios (1000V, 500V, 250V, 100V) 1000V IRT803 IRT803 ZERO 500V 0.1 M 10 M 100 M 20 G 250V 100V • Press X1 = RUN TIME : 1000V ZERO • Press X2 = 500V SELECT... -
Page 12: Compare Function
Compare Function Use the Compare Function to set “Pass/Fail” compare levels for insulation measurements. Press the Compare Button to select the desired compare value. Choose from the following values: • 100kΩ • 200kΩ • 500kΩ • 1MΩ • 2MΩ • 5MΩ •... -
Page 13: Testing The Fuse
Testing the Fuse IRT803 TEST SELECT TEST HOLD 1000V ZERO 500V 250V 100V ZERO INSULATION CAT IV 600V FUSED CAT III 1000V 600V WARNING: To avoid electrical shock or injury, remove the test leads and any input signals/voltages before replacing the fuse. -
Page 14: Battery Replacement
Battery Replacement • When the batteries are too low for safe operation, the Low Battery indicator will display AA battery • Remove protective rubber AA battery boot. AA battery • Remove battery cover. • Replace the batteries (4 AA). AA battery •... -
Page 15: Remote Probe Set
Remote Probe Set 1. Explanation of symbols Symbols Description : Double insulation : See accompanying user manual 2. Intended use and color of the lead Set A) Test probe has the lead wire which is composed of the Nickel Silver, Copper Braid, and PVC Rubber. One end has a plug and the other end is 4mm (with cap)or 18mm (without cap) probe tip. -
Page 16: Fcc/Ic Information
WARRANTY The IRT803 is warranted to be free from defects in materials and workmanship for a period of 1 year from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
