- Page 1 ThermalTronix TT-1100PXB-DVACS Technical Specifications User Manual...
- Page 2 Warranty If the product does not operate properly in normal conditions, please let us know. Intellisystem Technologies will resolve the problem for free of charge. The warranty period is 1 years. However, the followings are excluded: ...
- Page 3 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 4 Warnings Please avoid aiming the lens at extreme high temperature radiation source, such as the sun, molten steel or laser in any situation; otherwise the detector may be damaged. Please do not touch the lens to avoid contaminating and damaging. Please pay attention to protect the lens to avoid causing abrasion, scratches even breaches, otherwise, it will affect the device performance badly, even damage the device.
-
Page 5: Table Of Contents
Contents 1. Introduction .......................... 5 2 .How to assembly ........................6 3. Electronic and Power interface ................... 11 4. How to control it ......................... 13 4.1 Communication parameters ....................13 4.2 Thermal camera control key description ................13 4.3 CCD camera keys description .................... 14 5 .Thermal imaging camera menu .................. -
Page 6: Introduction

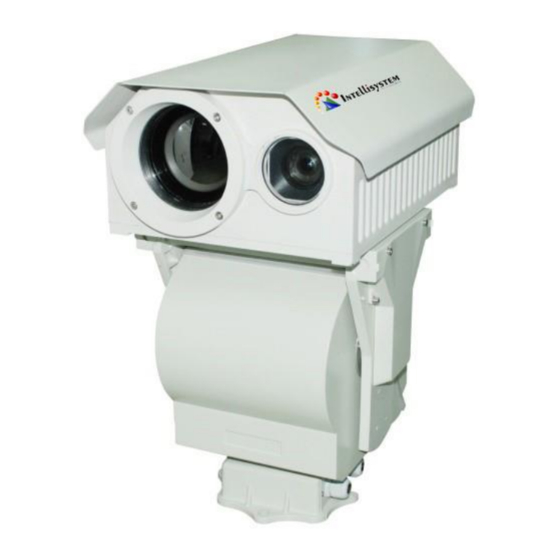

1. Introduction TT-1100PXB-DVACS is composed of uncooled infrared thermal imaging module and visible light camera, which can be applied in the following fields: long-range seaports, border, airport; middle-range power stations, public places; day and night to monitor people, vehicles, ships and so on. Thermal Camera ... -
Page 7: How To Assembly
2. How to assembly Carefully take out the housing and PTZ, refer to the image below Housing... - Page 8 Remove 4 inner hexagon screw (used to fix the housing) on the PTZ mounting platform PTZ mounting platform Install the housing on the PTZ mounting platform (If the installation is correct, The mounting bracket of the housing fit together with PTZ mounting platform very well). Back view of the housing Screw 4 inner hexagon back, to fix the housing, refer to the image below...
- Page 9 Plug the connector into the socket, 10 pin plug connect with 10 pin connector (socket), 19pin plug connect with 19 pin connector (socket). Refer to the image below.
- Page 10 Cable connection Note: when connect the plug into the socket, point the red stripe of the plug directly to the red strip of socket, screw and tighten the plug ,refer to 3 images below...
- Page 11 10 pin plug 19 pin plug...
-
Page 12: Electronic And Power Interface
Back view of the housing: Socket (connector) 3. Electronic and Power interface 3.1 Device appearance Fig.1... - Page 13 Description Remark CCD window Include CCD camera Thermal window Include thermal camera Wire hole AC24V+,AC24V-,RS485+,RS485-,CCD video output, Thermal video output(refer to the image below) Rear cover Include address and function of PTZ DIP switch 3.2 Wire definition Two AC24V cables (YELLOW/YELLOW): Connect with AC24V power RS485 cables (RED: 485+;...
-
Page 14: How To Control It
4. How to control it Connect 485 cables with PTZ controller, do not mix up the 485+ cable and 485- cable, or you can’t control the PTZ normally. 4.1 Communication parameters PELCO-D、baud 9600、address 2 Thermal camera default address： PELCO-D、baud 9600、address 1 PT system default address：... -
Page 15: Ccd Camera Keys Description
when there is a menu, modify the FOCUS+ option or increase the value ZOOM- Auto focus WFOV/NFOV Switch ZOOM+ 4.3 CCD camera keys description Before the operation. Pls set address 1 firstly Operational keys Function PTZ up Down PTZ down Left PTZ left Right... - Page 16 1、Auto：X Display the current image auto mode. Three options: Auto 0： Manual gain, manual brightness. User can manually adjust gain and brightness according to the observed object. Auto 1：Manual gain, auto brightness. User can manually adjust gain (auto brightness) according to the observed object. Auto 2：Auto gain, auto brightness.
-
Page 17: Setting Menu
5.2 Setting menu In the main menu, move the cursor to “setting”, and use『Focus-』or『Focus+』 to go to setting menu. You need to input password when go to setting menu, the password is『Iris+』 『Focus+』 『Iris+』 『Focus-』 『Iris+』 『Iris+』(This password is suitable for all the password dialog box in the thermal imaging camera). -
Page 18: Mode Menu
6、 Video：XXX Sensitivity, three modes: Low sensitivity: User may select Low sensitivity when the ambient or object in high temperature Middle sensitivity High sensitivity: User select High sensitivity when the ambient or object in low temperature. 7、 GEN：X Set the switch status to protect the detector from being burned 8、... -
Page 19: Specifications
When configuration user-defined setup is activated, it is automatically changed into Auto 2, and goes back to original working state after exit. 6. Specifications ThermalTronix TT-1100PXB-DVACS Items Detector characteristics Uncooled FPA microbolometer Detector type Pixels 384×288 Pixel size 25μm... -
Page 20: Troubleshooting
Structure Aluminum Guards External power AC24V±10% Power supply Power consumption ≤250W @25° Operating temperature -20℃~55℃（can expand to -40℃~60℃） Environment Storage temperature -40℃~70℃ Encapsulation IP66 Weight ≤30Kg Physical Dimensions （L×W×H） characteristics 400 mm×262mm×471mm Power interface Interface Video output Analog IR video and analog CCD video output Serial ports RS485, support PELCO-D/PELCO-P NOTE: Specifications are subject to change without notice... - Page 21 Information on Disposal for Users of Waste Electronic Equipment (private households) This symbol on the products and /or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
