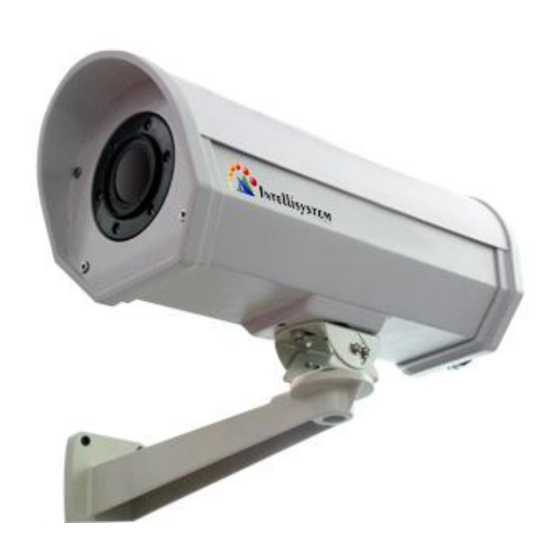

- Page 1 ThermalTronix TT-H-BFTC Series Thermal Imaging Camera User Manual...
- Page 2 Warnings Please avoid aiming the lens at extreme high temperature radiation source, such as the sun, molten steel or laser in any situation; otherwise the detector may be damaged. Please do not touch the lens to avoid contaminating and damaging. Please pay attention to protect the lens to avoid causing abrasion, scratches even breaches, otherwise, it will affect the device performance badly, even damage the device.
-
Page 3: Table Of Contents
Contents 1. Overview.............................. 3 1.1 Features: ............................3 1.2 Applications: ..........................3 1.3 Interface definition ........................3 1.4 Function key chart ......................... 4 1.5 Guide for call the Preset ........................ 4 Operations ............................5 Specifications ........................... 6... -
Page 4: Overview
1. Overview 1.1 Features: 640*480 uncooled detector. 2X ,4X Digital zoom. Black hot/White hot switch. Automatic/Manual calibration. RS485 interface, support PELCO-D protocol. Weatherproof, IP66. 1.2 Applications: Road monitoring, perimeter guard, channel management, marine reconnaissance patrol, etc. 1.3 Interface definition The control wire is from gland seal plug of housing. Definition as follows: Description Remark... -
Page 5: Function Key Chart
1.4 Function key chart Manually calibration, when menus pops-up M key when menu pop-up Polarity Auto focus LENS+ LENS- Focus- Focus + FOCUS - FOCUS+ ZOOM + ZOOM- ZOOM+ ZOOM- 1.5 Guide for call the Preset call preset 100 ,menu pops-up ,M key (lens-) to switch ,Focus± key to change the value Call preset 101, manually calibration Call preset 102, electrical zoom pops up, Focus±... -
Page 6: Operations
2. Operations Send “call preset 100” command, activate the menu, refer to the image below: Press “LENS-”button to cycle the option, press “Focus+” and ”Focus-” button to modify the value of option. 1.Auto: X Image adjust mode 0: manual brightness, manual gain mode 1: auto brightness, manual gain mode 2: auto brightness, auto gain mode 2. -
Page 7: Specifications
5. Z Digital zoom(X1/X2/X3/X4) 6. Setting: Pls contact manufacturer to get more details. 7. Exit: Press “Focus+” button or ”Focus-” button to exit the menu 3. Specifications ThermalTronix Items TT-1009H-BFTC TT-1018H-BFTC TT-1037H-BFTC TT-1050H-BFTC Detector type Uncooled FPA microbolometer Array size 640×480 Detector Pixel...
