UPOWER Ecoline UE-12Li100BL IN Series Installation Manual

4 CONNECTING STEPS TO USE UE-12Li100BL IN SERIES

Connecting Steps:

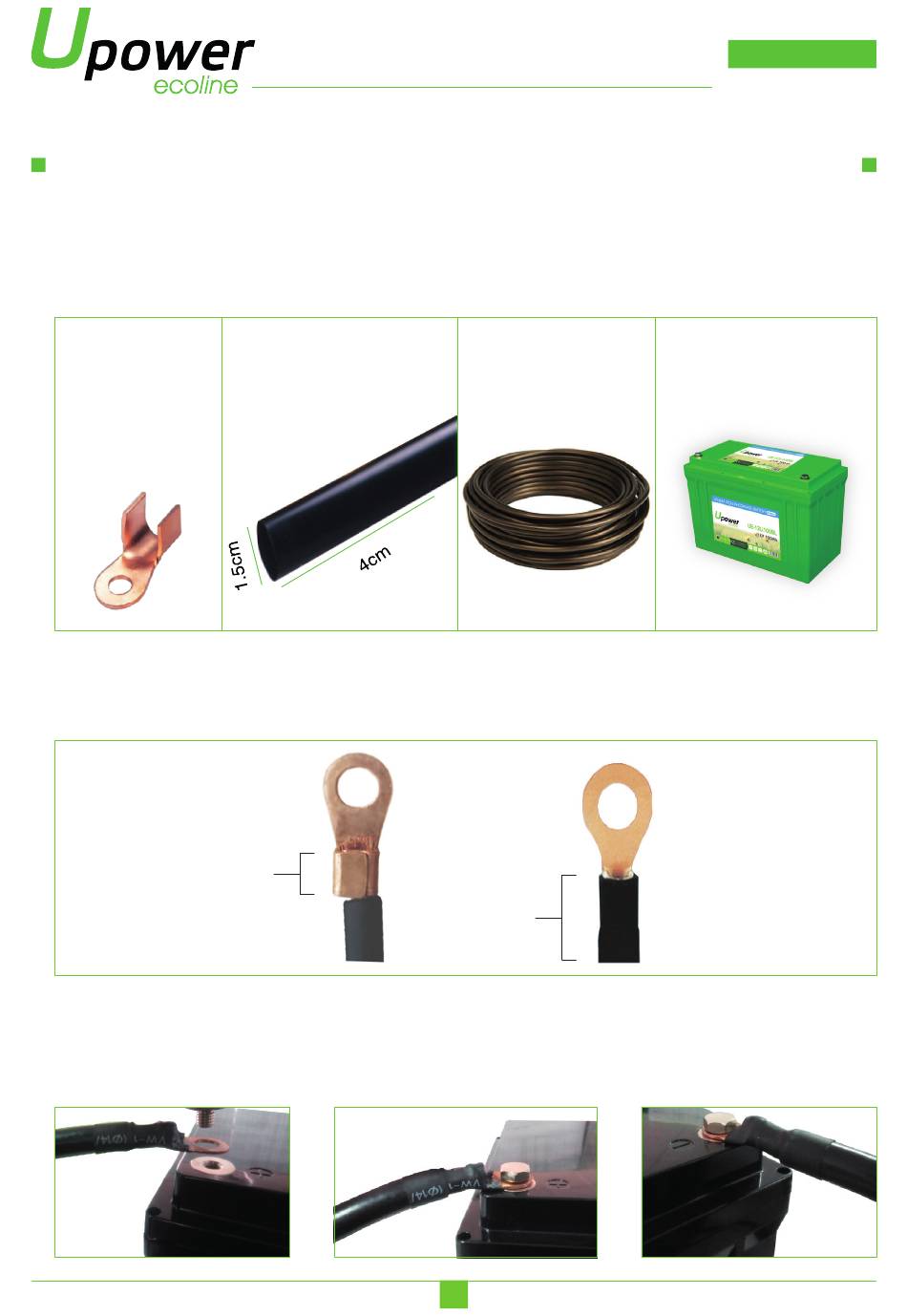

OT connector

10PCS

(Bare >100A current)

2 a: Weld OT connectors and wires tightly.

b: Cover the connecting part, between OT connectors and wires, with the Heat Shrink Tube.

3 Connect the batteries according to the pictures below with the finished wires in step 2, and make

sure the anode that comes out from

out from

PACK1

is on the negative pole.

Heat Shrink Tube

10PCS

(4cm/PC)

PACK4

Wires (Bare > 100A,

Length depends on

customer)

is on the positive pole, while the cathode that comes

INSTALLATION MANUAL

www.masterbattery.es

UE-12Li100BL

4PCS

(Voltage difference < 0.2V)
