LEGRAND 067695 Quick Start Manual

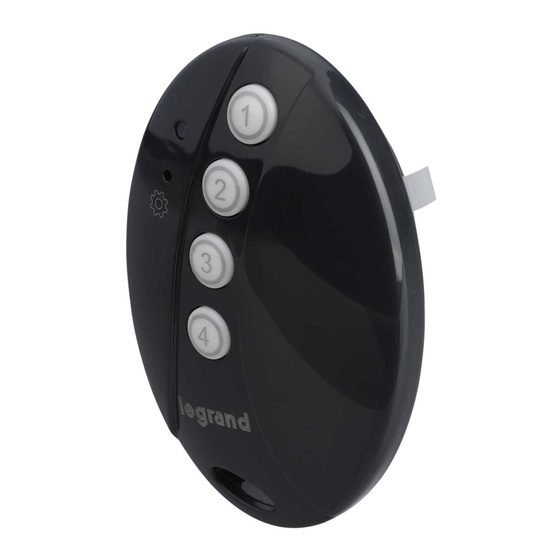

4-scene pocket remote control
0 676 95
This product is a connected accessory which requires you to buy and install one of these first:
- ... with Netatmo » connected starter pack and «... with Netatmo » connected power outlets,
switches (with dimmer option).
- Connected lighting micromodules.
- radiant with Netatmo Gateway and radiant with Netatmo Switch, Dimmer or Receptacle.
- adorne with Netatmo Gateway and adorne with Netatmo Switch Dimmer or Receptacle.
OR
Gateway Gateway Power
power Outlet and Home/Away
module wireless Switch
Contents:
Pocket remote control with
4 scenes
1
2
3
4
Complete the configuration
To complete your installation, briefly press the
gateway power module configuration button
or briefly press the middle of the wireless
master switch.
All the LEDs on the products will switch off.
< 1 s
OR
< 1 s
Customise your scene
From the Legrand Home + Control application (Settings/Scene section)
Follow the instructions in the guide
Reset To Factory Default:
To manually reset the device to factory defaults, press and hold the EZ Button for
10 seconds until you see the LED blink red, then release. The LED will turn off when
the reset is complete.
Outside US:
www.legrandoc.com/064875
Legrand – Pro and Consumer Service
BP 30076 87002 Limoges CEDEX FRANCE
www.legrand.com
OR OR
radiant
Gateway
Configurable
scenes
Frequency band: 2.4 - 2.4835 GHz
Power level : < 100 mW
To complete your installation, briefly press
the gateway EZ button.
All the LEDs on the products will switch off.
US :
Question? We're here to help.
Phone: 1-877-833-3303 8:00 a.m. to 8:00 p.m. EST (M-F)
Email: smartlighting@legrand.us
Chat: https://wwwlegrand.us/radiant/smart-lighting.aspx
(Click on the chat icon to open a dialogue box)
3
1
Start configuration of the 4-scene pocket remote control
Press the gateway power module
configuration button or the middle of the
Home/Away wireless master switch until the
LED briefly lights up green, then release. All
the LEDs on the wired products light up with a
steady green light.
adorne
Gateway
Prepare the 4-scene pocket remote control
1
2
3
4
Replacing the battery
battery
1
2
3
4
SIMPLIFIED EU DECLARATION OF CONFORMITY
declares that the radio-electric equipment referred to in these instructions
The full text of the EU declaration of conformity is available on the following website:
Press the gateway EZ button for 5
seconds and let go. The LED will turn solid
green.
Remove the
protective tab
1
press one of the buttons
on the 4-scene pocket remote control
2
3
4
The LED on the 4-scene pocket remote control will
flash green and then switch off.
Your 4-scene pocket remote control is ready to
use.
2
lithium battery
The undersigned,
Legrand
complies with directive 2014/53/EU.
www.legrandoc.com
4
1
2
3
4
low
