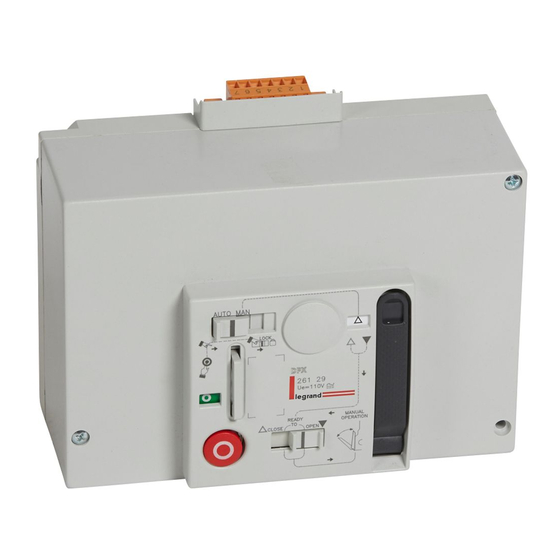

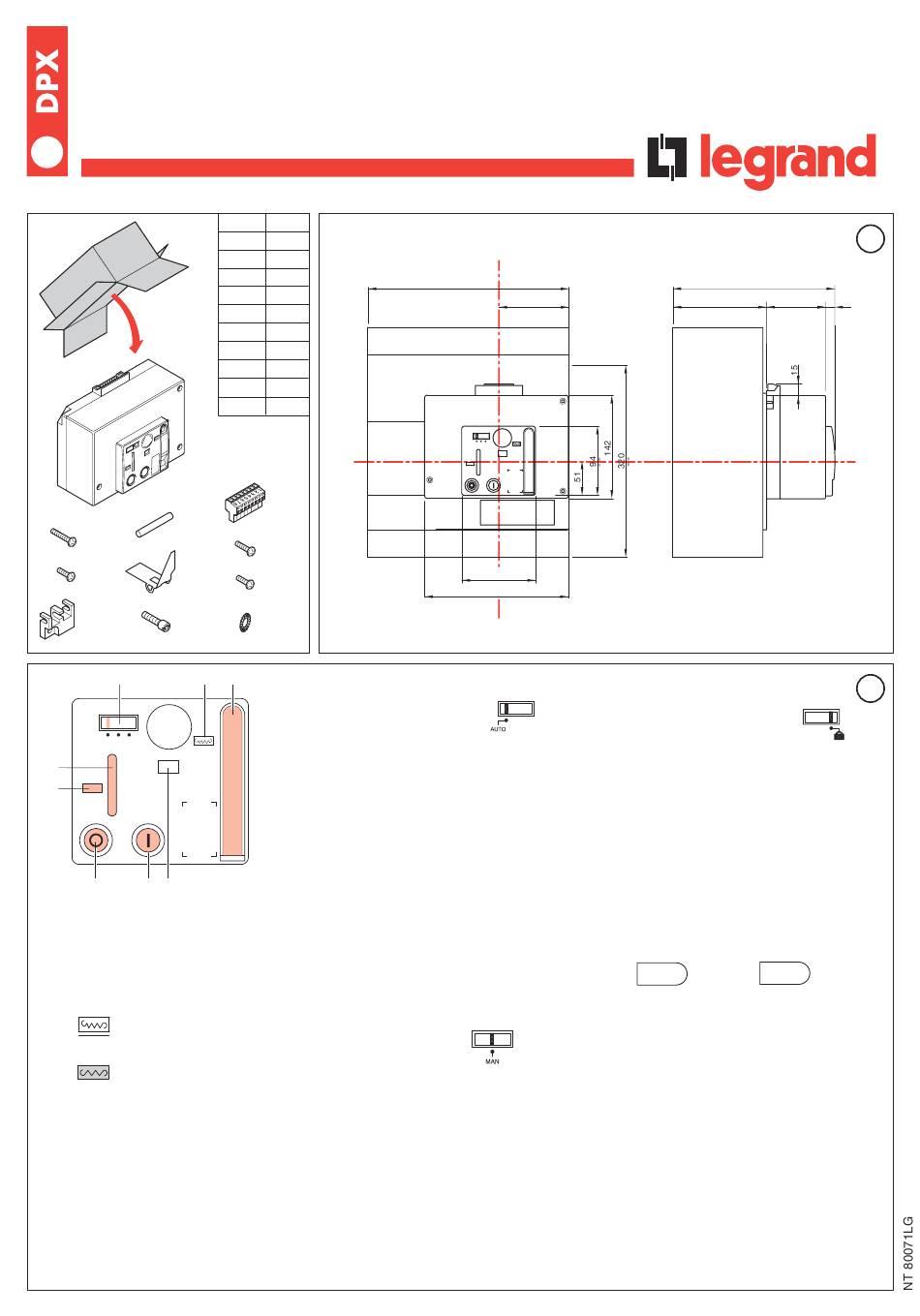

Commande motorisée
Remote control
Comando a motore
Zdalne sterowanie
DPX 1250 DPX 1600
A
E
B
F
C
D
G
5
2
7
6
4
3
8
1 - Poignée de réarmement manuel

Manual reset lever

Leva riarmo manuale
Dźwignia ręcznego zazbrojenia
2 - Indicateur ressort

Springs indicator

Indicatore molle
Wskaźnik stanu sprężyny
ressort chargé
springs unloaded
molle scariche
sprężyna naciągnięta
ressort déchargé
springs loaded
molle cariche
sprężyna zwolniona
3 - Poussoir de fermeture

Closing push button

Pulsante di chiusura
Przycisk załączenia
4 - Poussoir d'ouverture

Opening push button

Pulsante di apertura
Przycisk wyłączenia
5 - Sélecteur du mode de fonctionnement

Mode selector

Selettore modalità di funzionamento
Przełącznik trybu pracy
A
1
B
2
C
3
D
1
E
1
F
1
G
1
H
1
I
1
L
1
M
1
X
H
I
L
M
1
FONCTIONNEMENT AUTOMATIQUE

AUTOMATIC OPERATION

FUNZIONAMENTO AUTOMATICO
AUTOMATYCZNY TRYB PRACY
- Ouverture avec commande sur
impulsion ou commande permanente ou bouton poussoir 4.
- Opening through single impulse or continuous control or push
buttons 4.
- Apertura con comando ad impulso o mantenuto o con i
pulsanti 4.
- Wyłączenie przez podanie impulsu lub ciągłego napięcia
sterującego oraz przycisk 4.
- Réarmement par moteur électrique ou avec la
poignée 1.
- Reset through the motor or with lever 1.
- Riarmo mediante motore elettrico o con la leva 1.
- Naciągnięcie sprężyny przez silnik lub dźwignię (1).
FONCTIONNEMENT MANUEL

MANUAL OPERATION

FUNZIONAMENTO MANUALE
RE ˛CZNY TRYB PRACY
- Fermeture et ouverture exclusivement avec les poussoirs
(3 et 4).
- Closing and opening only through the push
bottons (3 - 4).
- Chiusura e apertura esclusivamente tramite i pulsanti
(3 e 4).
- Załączenie i wyłączenie tylko przez przyciski (3-4).
- Réarmement exclusivement avec la poignée (1).
- Reset only through the lever (1).
- Riarmo esclusivamente con leva (1).
- Naciągnięcie sprężyny tylko przez dźwignię (1).
Y
3P=210 4P=280
105
100
204
Y
237
140
VÉROUILLAGE EN POSITION OUVERTE
LOCK IN OPEN POSITION
BLOCCO IN APERTO
BLOKADA W STANIE WYŁĄCZONYM
- Empêche toute manoeuvre.
- Stops any operation.
- Impedisce l'esecuzione di manovre.
- Blokad wszystkich operacji.
- Provoque le déclenchement du disjoncteur.
- Trips the breaker.
- Provoca lo sgancio dell'interruttore.
- Wyłączenie wyłącznika
6 - Indicateur de positions des contacts du disjoncteur:

Breaker contacts indicator:

Indicatore posizione contatti interruttore:
Wskaźnik stanu wyłącznika:
fermé
closed
RED
GREEN
=
chiusi
CZERWONY
ZIELONY
załączony
7 - Poignée pour cadenassage en position ouverte.

Padlock in open position.

Blocco lucchetti in posizione di aperto.
Blokada kłódką wyłączony.
8 - Indicateur disjoncteur dellenche.

Indicator MCCB tripped.

Indicatore interruttore scattato.
Wskaźnik wyzwolenia wyłącznika.
N.B.:
La poignée de cadenassage (7) doit être
enfoncée pour passer en fonction
"A
/M
".
UT
AN
A
.:
The padlock (7) have to be pushed inside to
TT
get in "A
/M
" mode.
UT
AN
N.B.:
Il blocco lucchetti (7) deve essere inserito
per avere abilitate le funzioni "A
U
: Aby przejść w tryby pracy "A
WAGA
wcisnąć uchwyt dla kłódki (7).
®
1
80
17
X
2
ouvert
open
=
aperti
wyłączony
/M
".
UT
AN
/M
" należy
UT
AN
01/2007-01
