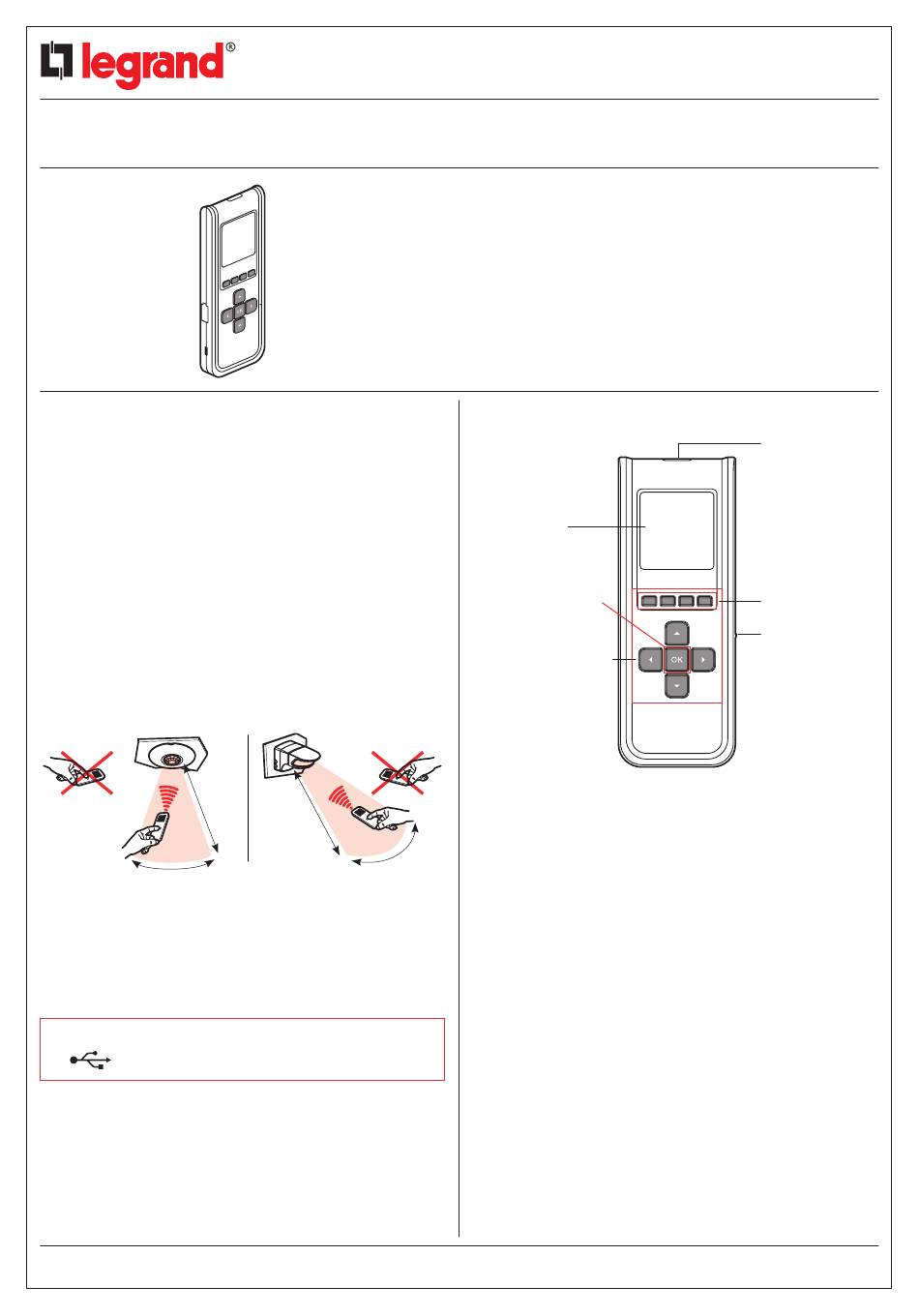

Configuration tool with screen
1. USE
This parameter setting tool works in a system with detectors.
It is used to receive and send data via infra-red.
- set the detector parameters (Time delay, Daylight setpoint, etc.)
- configure stand-alone detectors from the brand and BUS detectors
belonging to a system
- adjust the system according to the characteristics of the installation
location
- save the Light regulation (maximum of up to 26 configuration files)
- duplicate other detectors (copy/paste a setting type)
- connect BUS products (Push & Learn)
2. TECHNICAL FEATURES
Infra-red communication technology (4 m max.)
In the direction of the product to be measured
At a +/- 15° angle limit in the axis of the PIR transmission and
reception LED (see image)
4 m
+/- 15°
Backlight screen (automatic switch off)
Weight: 71 g
Impact resistance: IK04
Operating temperature: -5°C to +45°C
Storage temperature: -20°C to +70°C
RECHARGING: Use a mini USB cable (not supplied) for
recharging the configuration tool with a standard
USB socket.
Technical data sheet: F01163EN/00
CONTENTS
4 m
+/- 15°
Updated on:
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Cat. no(s).: 882 30
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . . .1
3. Navigation . . . . . . . . . . . . . . . . . . . . . .2
4. Standard EN12464-1
recommendations. . . . . . . . . . . . . . . . .5
5. Maintenance. . . . . . . . . . . . . . . . . . . . .5
6. Standards . . . . . . . . . . . . . . . . . . . . . . .5
2. TECHNICAL CHARACTERISTICS (continued)
Display screen
On/Off and validation
Control and navigation
keys
Works with all factory pre-set compatible detectors (infra-red,
ultrasound or dual technology).
The lux parameters adapt to the detector and installation type.
Page
PIR transmission and
reception LED
Function access
keys
Mini-USB
connector
Created on: 23/08/2010
1/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND 882 30
Summary of Contents for LEGRAND 882 30
- Page 1 87045 LIMOGES Cedex Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88 Configuration tool with screen Cat. no(s).: 882 30 CONTENTS Page 1. Use ......1 2.
-
Page 2: Sensor Parameters
Configuration tool with screen Cat. no(s).: 882 30 3. NAVIGATION 3. NAVIGATION (continued) 3.1 Pictograms 3.2 Instructions for use Sensor parameters Advanced mode The 4 buttons control the pictogram functions Files displayed above PnL sensor Back to previous page Takes the current detector configuration... - Page 3 Configuration tool with screen Cat. no(s).: 882 30 3. NAVIGATION (continued) 3. NAVIGATION (continued) 3.2 Instructions for use (continued) 3.2 Instructions for use (continued) 3.2.1. Sensor parameters (continued) 3.2.2. Advanced mode Time delay Calibration Length of time the load is on after a detection is made. See technical data sheet...
- Page 4 Configuration tool with screen Cat. no(s).: 882 30 3. NAVIGATION (continued) 3. NAVIGATION (continued) 3.2 Instructions for use (continued) 3.2 Instructions for use (continued) 3.2.2. Advanced mode (continued) 3.2.4 PnL sensor Loop type PnL sensor Sensor parameter There should be outside light available for proper operation of the Light PnL group regulation.
-
Page 5: Maintenance
Configuration tool with screen Cat. no(s).: 882 30 4. STANDARD EN12464-1 RECOMMENDATIONS 3. NAVIGATION (continued) Commercial premises - office buildings: 3.2 Instructions for use (continued) Passage areas and corridors: 100 lux 3.2.6 Settings Stairways: 150 Lux Canteens: 200 lux Infirmary: 500 Lux...
