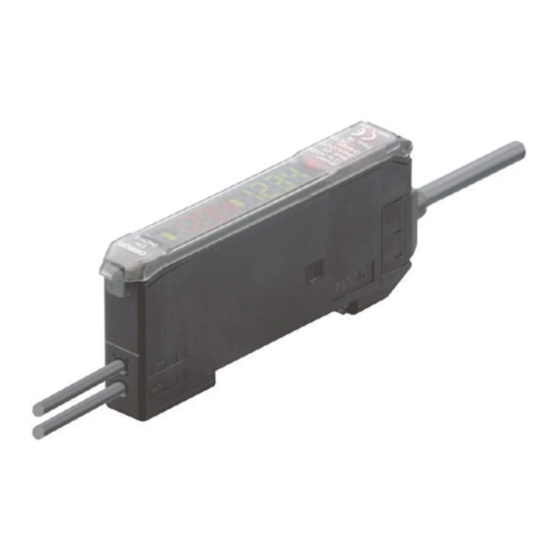

Color Sensing Digital Fiber Amplifier Unit
E3X-DAC-S
Easy and Reliable
The Fiber Amplifier Unit That Sees in Color
• High-power white LED and multi-RGB processing eliminate the need
to select light source (wavelength) types.
• One-touch teaching enables stable detection that resists against
workpiece vibration.
• Choose from a wide range of Fiber Heads to match the workpiece and
working space.
Refer to Safety Precautions on page 10.
Features
Easy and Reliable ... Featuring a Color-sensing Engine
A high-power white LED and a multi-RGB processing system
combine to cover all RGB wavelengths, enabling easy and
accurate detection of workpieces without having to use
a different light source to watch each one.
Easy and Reliable ... Ease of Use and Smart Functions
In addition to ensuring easy use, we have added a number of smart functions, such as remote control to simplify setup, and
twin sensing and output to simultaneously distinguish two registered colors. (advanced models)
Wide Range of
Select from a wide range of Fiber
Heads to match the workpiece and
working space.
Arrow.com.
Downloaded from
Easy-to-Understand
Immediately check the degree of match
Fiber Heads Available
with the registered colors and the
thresholds or easily make fine
adjustment while checking these values.
First in Its Class
Reliable
This function guides the user to
ensure that the workpiece is in an
appropriate position for teaching.
(Indicates OVER, OK, or LOW.)
Colors are detected through changes in the ratio of three
parameters, RGB, to enable stable detection even when the
workpiece moves.
No Need
Intensity
to Select
Detection
(Previous Type)
Incident Light Intensity
Double Display
Setting guide function.
CSM_E3X-DAC-S_DS_E_5_8
Color Detection
(Color Sensing
Type)
RGB Ratio
80 to 130
Incorrect
operation is
a worry.
Easy Setting
with One-push Teaching
Settings to teach the workpiece to be
detected can be easily performed with
one push.
10 mm
R
G
B
A Slim,
10-mm-wide Amplifier
Use of a white LED and a one-package
RGB light-receiving element results in a
slim Amplifier.
Not
Affected
by
Move-
ment
Operation is
reliable even
with workpiece
movement.
