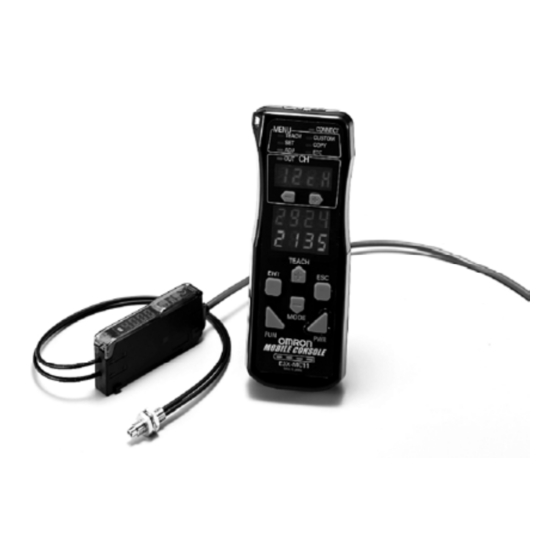

Omron E3X-DA41-N Datasheet

Digital Fiber Amplifier
E3X-DA-N
Reducing power line wiring meaning
space is saved. New design for easier
maintenance.
Industry First
The connector type that uses the wire-saving connector sup-
plies power to the single-conductor slave connectors via the
three-conductor master connector. Hence, the following three
has been made possible.
1. Wiring is much simpler.
2. Relay connectors are not required meaning that space is used
more efficiently and costs are reduced.
3. Simple inventory control because of no differentiation between
master and slave in the amplifier section.
New Connector Design
Up to 16 Amplifiers
can be connected together.
Optical
commu-
nications
Master Connector
E3X-DA-N
Truly ultimate fiber amplifier
in pursuit of "user friendliness"
and "high performance"
UL991*
* UL-listed including UL991 tests/evaluations Applicable standard: UL3121-1 Standards for additional tests/evaluations
for applications: UL991, SEMI S2-0200
Patent pending
Power supply pin
Slave Connector
Features
Super digital display by use of the Auto
Power Control (APC) circuit
The incident level of LEDs used in sensors is prone to deteriorate
with time and as a result, detection becomes unstable.
Using the APC (auto power control) circuit for the first time as the
fiber sensor, the E3X-DA-N series has no digital value variations,
realizing severe detection.
This makes the E3X-DA-N ideal for applications where a high de-
gree of sensitivity is required, such as detecting crystal glass.
Conventional
Digital Fiber
Amplifiers
E3X-DA-N Series
Industry First
Incident level
3000
Threshold
Detection becomes unstable
Time
Incident level
3000
Threshold
Stable detection
Time
