Moxa Technologies ABC-02-USB Quick Installation Manual

Moxa Technologies ABC-02-USB Quick Installation Manual

Automatic backup configurator

Advertisement

Quick Links

Quick Installation Guide
Automatic Backup Configurator
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
ABC-02-USB
Edition 2.1, July 2019
Technical Support Contact Information
www.moxa.com/support
 2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000021022
*1802000021022*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABC-02-USB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies ABC-02-USB

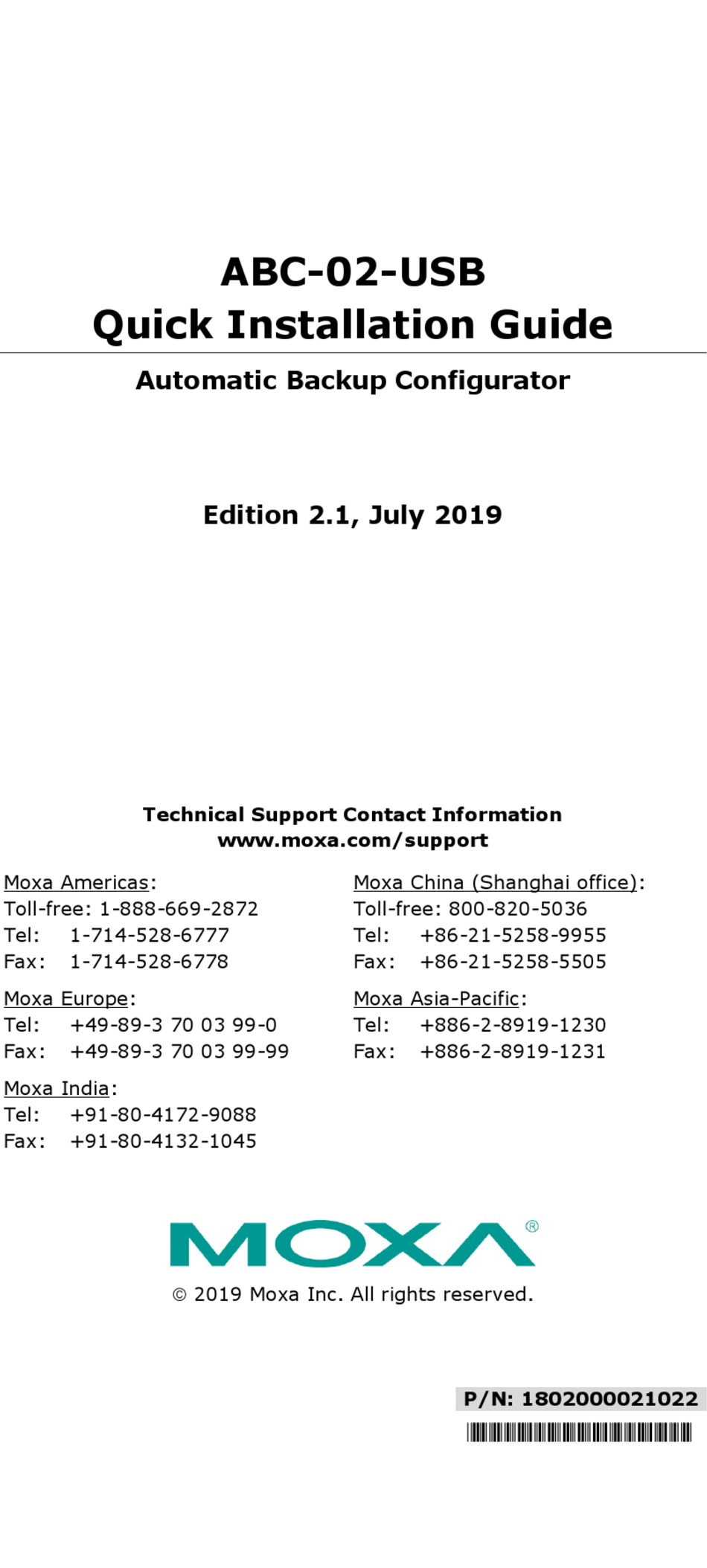

  • Page 1: Quick Installation Guide

    ABC-02-USB Quick Installation Guide Automatic Backup Configurator Edition 2.1, July 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
  • Page 2: Package Checklist

    IP address, if a switch failure occurs. Switches can load firmware from the ABC-02-USB and backup event logs to the ABC-02-USB. It is also an easy and fast diagnostics tool for automation engineers to retrieve configuration files and event logs in the field immediately, without the need for laptop computers.

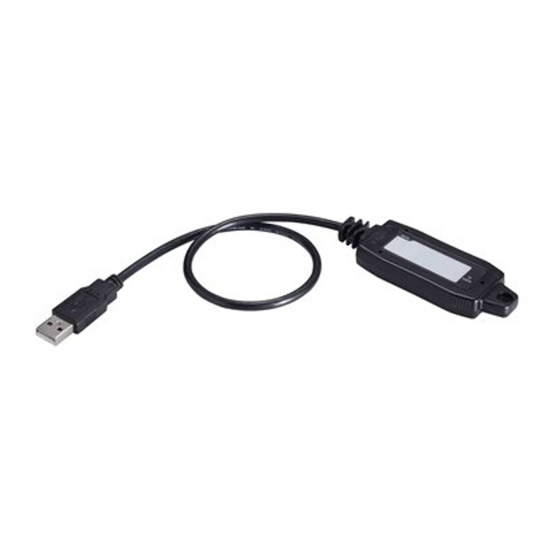

  • Page 3: Hardware Description

    Hardware Description Product Installation The ABC-02-USB is designed for use with an USB 2.0 port. Plug the ABC-02 into the USB port of your Moxa managed switch. Securing the ABC-02 on the wall with an M4 screw is suggested. Avoid hanging the ABC-02 configurator from the switch without securing it onto the wall.
  • Page 4 Please refer to the Product Operation section for instructions on how to save and load the configuration, firmware, and event logs. Product Operation Configuration Backup and Restore • Backup switch configuration on the ABC-02 Use the switch web console to save the configuration file to the ABC-02.
  • Page 5: Firmware Upgrade

    Firmware Upgrade Upgrade the firmware from the ABC-02 to the switch. You can download the firmware file from http://www.Moxa.com/support/. Save the firmware file in the “:\Moxa” folder of the ABC-02. Plug in the ABC-02 into your switch. Use the switch web console to load the switch firmware file from the ABC-02.
  • Page 6 NOTE The status of the ABC-02 may be checked on the switch web console or by observing the switch front panel LEDs. Operation Switch LED status The switch detects STATE blinking slowly (1 time/ 2 ABC-02-USB plugged seconds), Import/Export in FAULT, MASTER, COUPLER LEDs progress* Blink sequentially and circularly...
  • Page 7: Specifications

    Specifications Operating Temperature 0 to 60°C (32 to 140°F) Storage Temperature -40 to 85°C (-40 to 185°F) Connectors RS-232 RJ45 port Power Requirement 3 to 5 VDC, power input via RS-232 RTS Configuration via Moxa managed switch’s web console Casing PVC molding, IP40 Weight 50 g...
