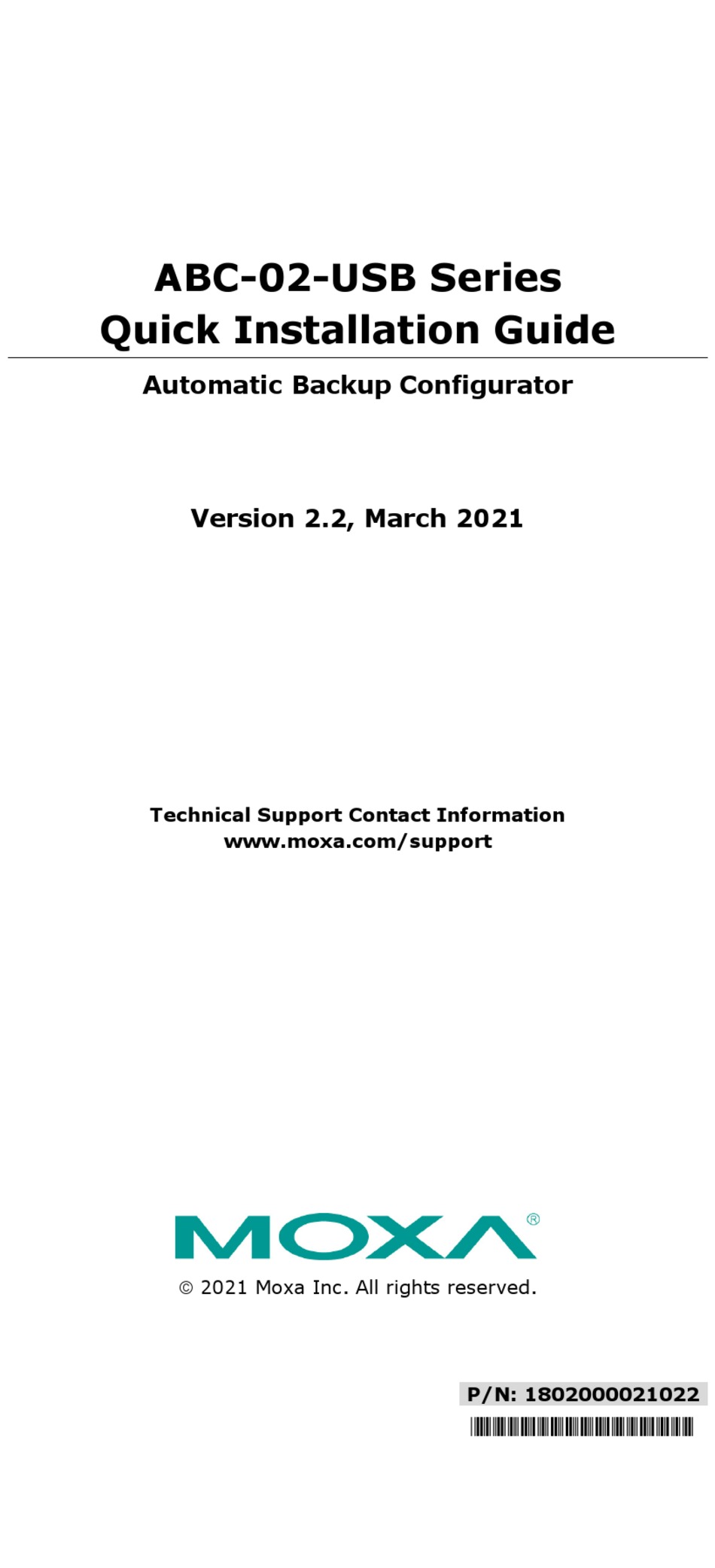

- Page 1 ABC-02-USB Series Quick Installation Guide Automatic Backup Configurator Version 2.2, March 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802000021022 *1802000021022*...

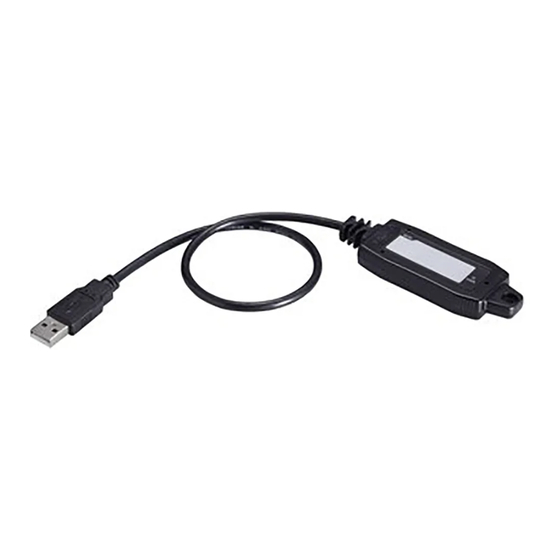

- Page 2 Overview The ABC-02-USB Automatic Backup Configurator is a device that can save and load configuration files, backup event logs, and load firmware of Moxa’s managed switch via the USB (universal serial bus) interface. The ABC-02-USB is able to be accessed directly like a standard USB flash drive from a computer.
- Page 3 Hardware Description Product Installation The ABC-02-USB is designed for use with an USB 2.0 port. Plug the ABC-02 into the USB port of your Moxa managed switch. Securing the ABC-02 on the wall with an M4 screw is suggested. Avoid hanging the ABC-02 configurator from the switch without securing it onto the wall.
- Page 4 Please refer to the Product Operation section for instructions on how to save and load the configuration, firmware, and event logs. Product Operation Configuration Backup and Restore • Backup switch configuration on the ABC-02 Use the switch web console to save the configuration file to the ABC-02.
- Page 5 Firmware Upgrade Upgrade the firmware from the ABC-02 to the switch. You can download the firmware file from http://www.Moxa.com/support/. Save the firmware file in the “:\Moxa” folder of the ABC-02. Plug in the ABC-02 into your switch. Use the switch web console to load the switch firmware file from the ABC-02.
- Page 6 Auto backup to the ABC-02 when configurations change The ABC-02 is capable of backing up switch configuration files automatically. This function is found under “System/System Files/ Configuration Backup and Restore”. While the ABC-02 is plugged into the switch, enable the “Auto backup to ABC-02 when configuration change” option.
- Page 7 Specifications Connectors USB 2.0 Type A Power Requirement 5 VDC, power input via the USB interface Configuration via Moxa managed switch’s web console Casing PVC molding, IP40 Weight 50 g Installation M4 screw (> 4 mm) Dimension (W × D × H) 32.5 × 97 × 12 mm Cable Length 32 cm, including connectors Operating Temperature...
