Por favor lea atentamente este manual antes de usar este producto.
Please, read carefully this manual before using the product.
Avant d'utiliser l'équipement, lisez attentivement les instructions.
Por favor leia atentamente este manual antes de usar o equipamento.
Per favore leggere attentamente questo manuale prima di utilizzare questo prodotto.
G r a c i a s | T h a n k y o u | M e r c i | O b r i g a d o | G r a z i e
ES
EN
OWNNER'S MANUAL
FR
PT
IT
DUCT
IX43 R32
Advertisement
Troubleshooting
Related Manuals for Giatsu IX43 R32
Summary of Contents for Giatsu IX43 R32
- Page 1 OWNNER’S MANUAL DUCT IX43 R32 GIA-MDI-12IX43R32 | GIA-MDI-18IX43R32 GIA-DI-12IX43R32 | GIA-DI-18IX43R32 GIA-DI-24IX43R32 | GIA-DI-30IX43R32 GIA-DI-36IX43R32 | GIA-DI-42IX43R32 GIA-DI-48IX43R32 | GIA-DI-60IX43R32 Por favor lea atentamente este manual antes de usar este producto. Please, read carefully this manual before using the product.
- Page 2 ENGLISH OWNER’S MANUAL DUCT IX43 R32 GIA-MDI-12IX43R32 | GIA-MDI-18IX43R32 GIA-DI-12IX43R32 | GIA-DI-18IX43R32 GIA-DI-24IX43R32 | GIA-DI-30IX43R32 GIA-DI-36IX43R32 | GIA-DI-42IX43R32 GIA-DI-48IX43R32 | GIA-DI-60IX43R32...
-
Page 3: Table Of Contents
Table of Contents Owner’s Manual Safety Precautions ................SAFETY FIRST Indoor Unit Parts and Major Functions ......Manual Operations ................Care and Maintenance ............Unit Maintenance ................ How to Clean the Air Filter ........... Repairing Refrigerant Leaks ..........Preparation for Periods of Non-use ........ -
Page 4: Safety Precautions
Safety Precautions Thank you for purchasing this air conditioner. This manual will provide you with information on how to operate, maintain, and troubleshoot your air conditioner. Following the instructions will ensure the proper function and extended lifespan of your unit. Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. - Page 5 CAUTION to ensure that they do not play with the appliance (IEC Standard requirements). DO NOT touch the air outlet while the swing flap is in motion. Fingers might get This appliance can be used by children caught or the unit may break down. aged from 8 years and above and persons with reduced physical, sensory DO NOT inspect the unit by yourself.
- Page 6 CAUTION 13. DO NOT operate the air conditioner in a wet room (e.g. bathroom or laundry room). This can cause electrical shock and cause the product to deteriorate. Turn o the air conditioner and disconnect the power if you are not going to use it for a long time.
-
Page 7: Indoor Unit Parts And Major Functions

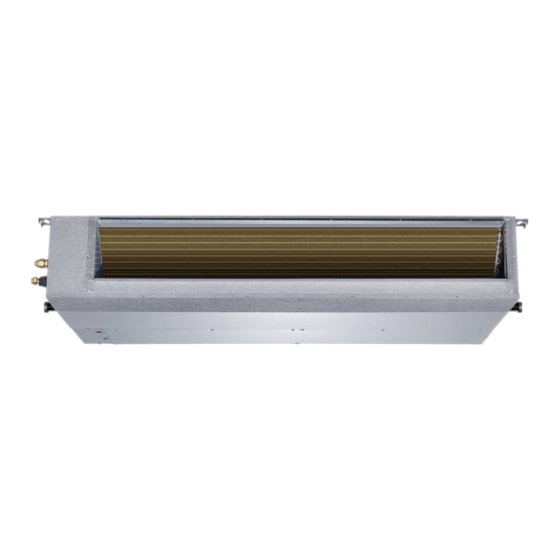

Indoor Unit Parts And Major Functions Unit Parts Air inlet Electric control cabinet Air filter(on some models) Air outlet Drain hose Refrigerant connecting pipe Fig. 2.1 Operating Conditions Use the system under the following temperatures for safe and e ective operation. If the air conditioner is used under di erent conditions, it may malfunction or become less e cient. - Page 8 Features Default Setting Louver Angle Memory Function (Optional) When the air conditioner restarts after a power Some models are designed with a louver angle failure, it will default to the factory settings memory function. When the unit restarts after a (AUTO mode, AUTO fan, 24°C (76°F)).
-
Page 9: Manual Operations
Manual Operations This display panel on the indoor unit can be used to operate the unit in case the remote control has been misplaced or is out of batteries. Manual button LED display Operation indicator Infrared receiver Alarm indicator Timer indicator PRE-DEF (pre-heating/defrost) indicator... - Page 10 Care And Maintenance WARNING: DO NOT REMOVE OR Safety Precautions CLEAN THE FILTER BY YOURSELF Contact an authorized service technician for • repair or maintenance. Improper repair and Removing and cleaning the filter can be maintenance may cause water leakage, dangerous.
- Page 11 Repairing Refrigerant Leaks 3. Remove the air lter. 4. Clean the air lter by vacuuming the surface or washing it in warm water with mild WARNING detergent. If the refrigerant leaks, turn o the air • A. If using a vacuum cleaner, the inlet side conditioner and any combustible heating should face the vacuum.
-
Page 12: Troubleshooting
Troubleshooting CAUTIONS If one of the following conditions occurs, switch o the power supply immediately and contact your dealer for further assistance. The operation light continues to flash rapidly after the unit has been restarted. • The remote control buttons do not work. •... -
Page 13: Troubleshooting Tips
Problem Possible Causes Dust is emitted from The unit may accumulate dust during extended periods of non-use, which either the indoor or will be emitted when the unit is turned on. This can be mitigated by covering outdoor unit the unit during long periods of inactivity. The unit may absorb odors from the environment (such as furniture, cooking, The unit emits a cigarettes, etc.) which will be emitted during operations. - Page 14 Error Codes Fixed-speed Type • Indoor EEPROM (Electrically Erasable Programmable Read-Only Memory) error Indoor fan speed malfunction Indoor room temperature sensor error Evaporator coil temperature sensor error Refrigerant leak detection system malfunction Water level alarm malfunction Outdoor condenser pipe sensor error Indoor unit communication malfunction ...
- Page 15 Inverter Split Type • Indoor EEPROM (Electrically Erasable Programmable Read-Only Memory) error Indoor and outdoor unit communication malfunction Indoor fan speed malfuncti Indoor room temperature sensor error Evaporator coil temperature sensor error Refrigerant leak malfunction Water level alarm malfunction Dual indoor unit (twins model only) communication malfunction Other twins model malfunction Outdoor malfunction or protection *...
-
Page 16: European Disposal Guidelines
European Disposal Guidelines Users in European Countries may be required to properly dispose of this unit. This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. DO NOT dispose of this product as household waste or unsorted municipal waste. - Page 17 C/ Industria, 13, Polígono Industrial El Pedregar. 08160 Montmeló. Barcelona (España) Tel (0034) 93 390 42 20 - Fax (0034) 93 390 42 05 info@giatsu.com - www.giatsu.com FRANCE PORTUGAL ITALIA info.fr@giatsu.com info.pt@giatsu.com info.it@giatsu.com L L L I I I T T T H H H U U U A A A N N N I I I A A A info@giatsu.lt...
