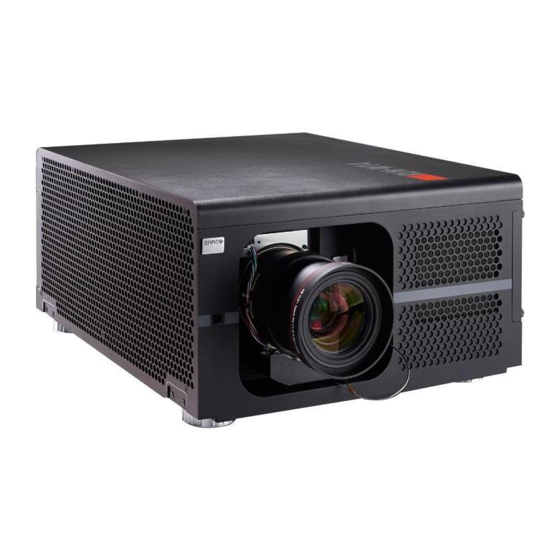

Barco RLM W14 Quick Start Manual

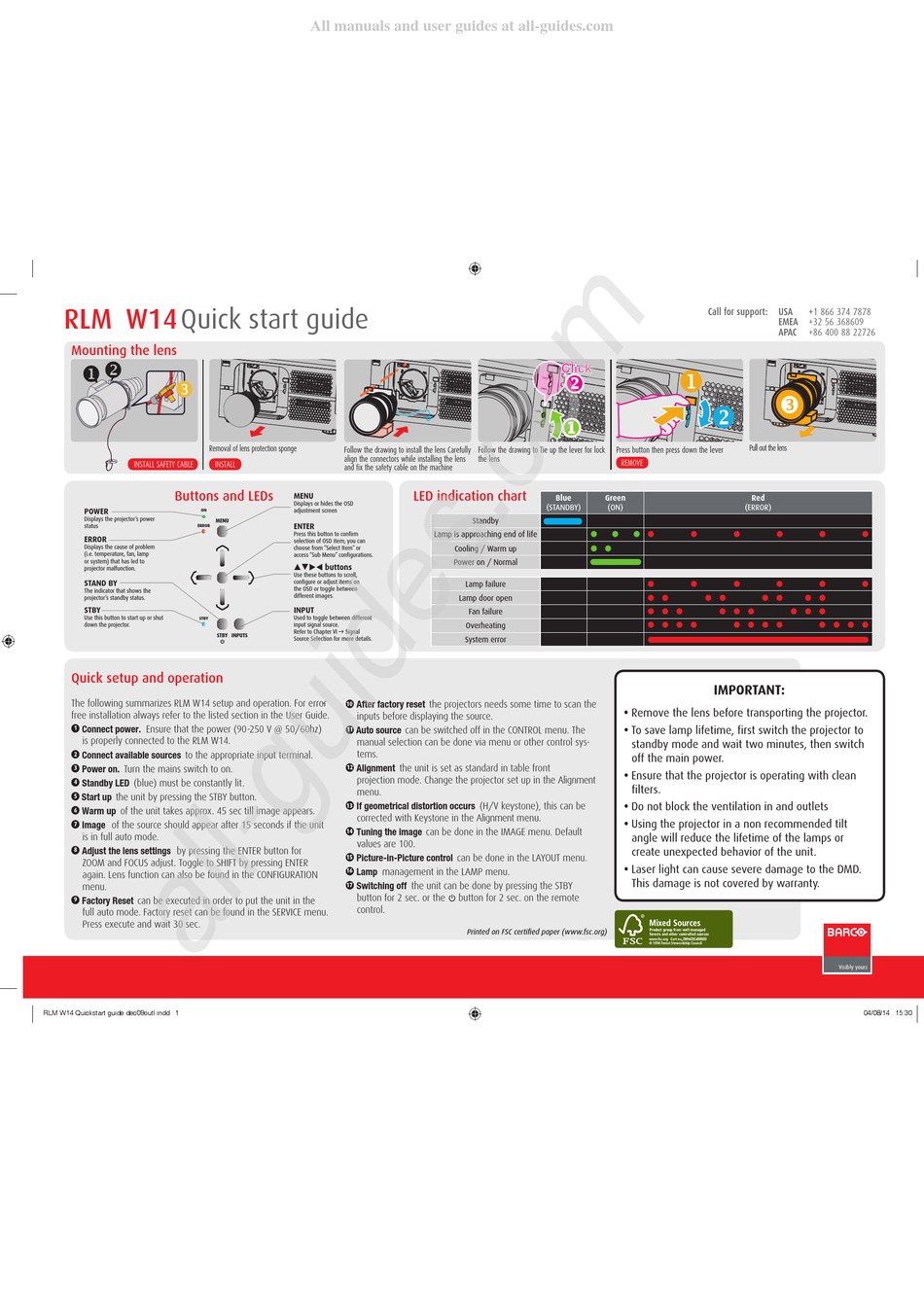

RLM W14 Quick start guide
Mounting the lens
 

Removal of lens protection sponge
INSTALL SAFETY CABLE INSTALL
Buttons and LEDs
POWER
ON
Displays the projector's power
MENU
status
ERROR
ERROR
Displays the cause of problem
(i.e. temperature, fan, lamp
or system) that has led to
projector malfunction.
STAND BY
The indicator that shows the
projector's standby status.
STBY
Use this button to start up or shut
STBY
down the projector.
STBY
Quick setup and operation
The following summarizes RLM W14 setup and operation. For error -
free installation always refer to the listed section in the User Guide.
Connect power. Ensure that the power (90-250 V @ 50/60hz)
1
is properly connected to the RLM W14.
Connect available sources to the appropriate input terminal.
2
Power on. Turn the mains switch to on.
3
Standby LED (blue) must be constantly lit.
4
Start up the unit by pressing the STBY button.
5
Warm up of the unit takes approx. 45 sec till image appears.
6
Image of the source should appear after 15 seconds if the unit
7
is in full auto mode.
Adjust the lens settings by pressing the ENTER button for
8
ZOOM and FOCUS adjust. Toggle to SHIFT by pressing ENTER
again. Lens function can also be found in the CONFIGURATION
menu.
Factory Reset can be executed in order to put the unit in the
9
full auto mode. Factory reset can be found in the SERVICE menu.
Press execute and wait 30 sec.
RLM W14 Quickstart guide dec09outl.indd 1
All manuals and user guides at all-guides.com
LOCK
OPEN
Follow the drawing to install the lens Carefully
align the connectors while installing the lens
and fix the safety cable on the machine
MENU
Displays or hides the OSD
adjustment screen
ENTER
Press this button to confirm
selection of OSD item; you can
choose from "Select Item" or
access "Sub Menu" configurations.
 buttons
Use these buttons to scroll,
configure or adjust items on
the OSD or toggle between
different images.
INPUT
Used to toggle between different
input signal source.
Refer to Chapter VI → Signal
INPUTS
Source Selection for more details.
After factory reset the projectors needs some time to scan the
10
inputs before displaying the source.
Auto source can be switched off in the CONTROL menu. The
11
manual selection can be done via menu or other control sys-
tems.
Alignment the unit is set as standard in table front
12
projection mode. Change the projector set up in the Alignment
menu.
If geometrical distortion occurs (H/V keystone), this can be
13
corrected with Keystone in the Alignment menu.
Tuning the image can be done in the IMAGE menu. Default
14
values are 100.
Picture-in-Picture control can be done in the LAYOUT menu.
15
Lamp management in the LAMP menu.
16
Switching off the unit can be done by pressing the STBY
17
button for 2 sec. or the
control.
Click
LOCK
OPEN
Follow the drawing to Tie up the lever for lock
the lens
LED indication chart
Blue
(STANDBY)
Standby
Lamp is approaching end of life
Cooling / Warm up
Power on / Normal
Lamp failure
Lamp door open
Fan failure
Overheating
System error
button for 2 sec. on the remote
Printed on FSC certified paper (www.fsc.org)
Call for support: USA


Pull out the lens
Press button then press down the lever
REMOVE
Green Red
(ON) (ERROR)
     
 
  
     
     
       
- - - -
IMPORTANT:
• Remove the lens before transporting the projector.
• To save lamp lifetime, first switch the projector to
standby mode and wait two minutes, then switch
off the main power.
• Ensure that the projector is operating with clean
filters.
• Do not block the ventilation in and outlets
• Using the projector in a non recommended tilt
angle will reduce the lifetime of the lamps or
create unexpected behavior of the unit.
• Laser light can cause severe damage to the DMD.
This damage is not covered by warranty.
DNV-COC-000020
+1 866 374 7878
EMEA +32 56 368609
APAC +86 400 88 22726

  
  
 
  
   
