1
Quick Setup Guide

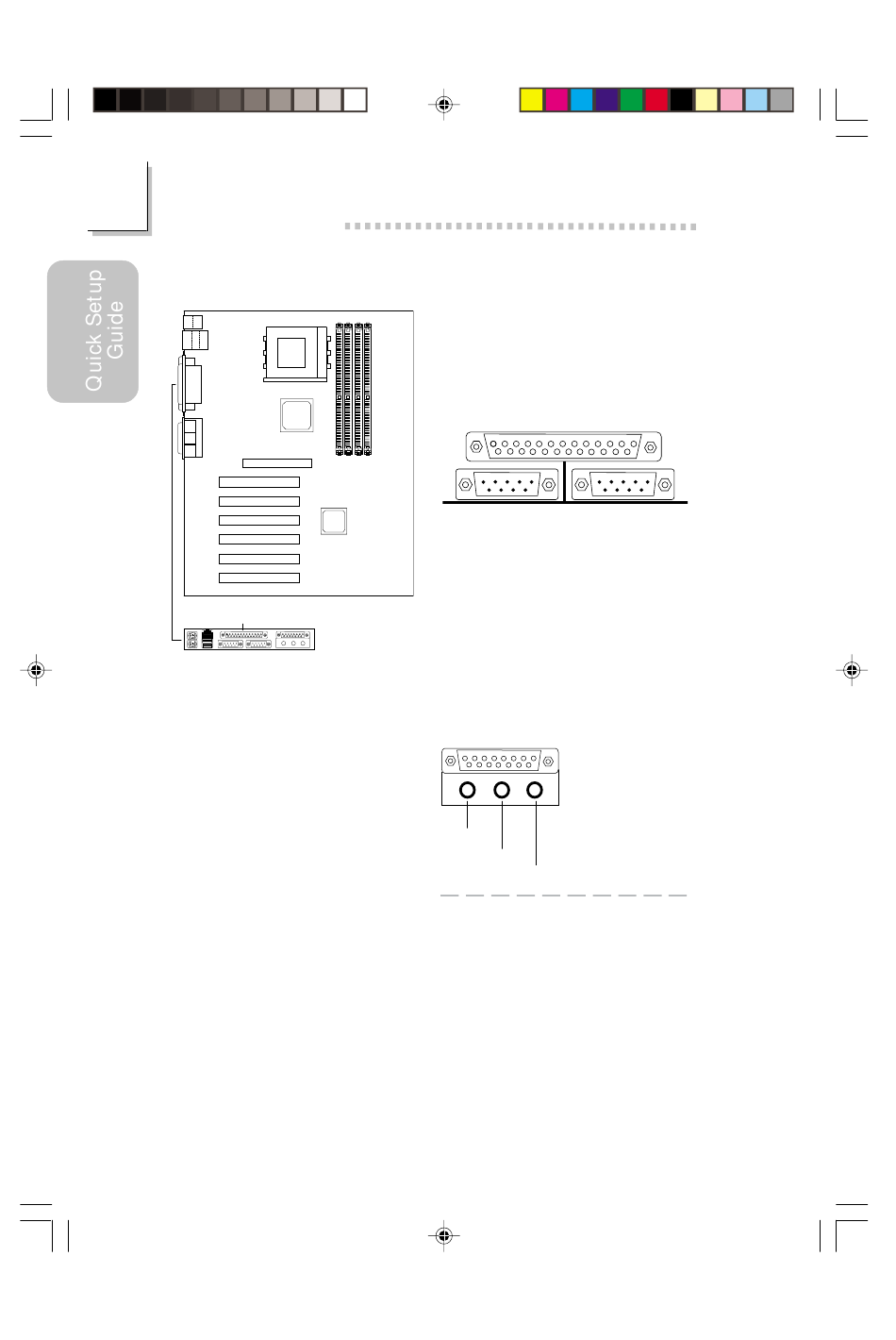

1.3.5 Parallel Port
J4
Parallel
(Burgundy)
1.3.6 Game/MIDI Port and Audio Jacks
12
Parallel Port
Onboard Game/MIDI / Audio
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Front Audio (J13)
1 Mic+
2 Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 AuD_R_Return (GND)
7 N. C.
8 Key
9 AuD_L_Out
1 0 AuD_L_Return (GND)
