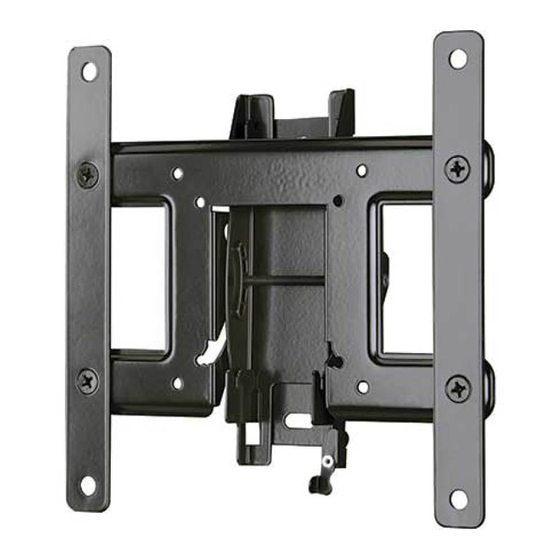

- Page 1 F11c INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-888-333-9952. We’re ready to help! Scan for easy install video san.us/251...
-
Page 2: Before You Begin
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Before You Begin Please check the following items: Your TV and any accessories you plan to use do not exceed the specifi ed weight limit. The hole pattern on the back of your TV is compatible with the hole pattern of the TV bracket(s). -
Page 3: Weight Limit
Weight Limit Tools Needed 35 lb (15.8 kg) DO NOT EXCEED! (includes TV and any accessories) 11 mm 3 mm (7/16 in.) (1/8 in.) 10 mm (3/8 in. - Page 4 Dimensions 7.87 200.0 [mm] 3.94 100.0 12° 12° 2.95 75.0 8.87 225.4 7.87 200.0 7.00 3.94 177.8 100.0 5.18 3.01 131.7 76.5 2.19 55.6 1.70 43.2 9.12 231.6...
-
Page 5: Supplied Parts And Hardware
Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;... - Page 6 Parts and Hardware for STEP 1 Cont. Washers TV Screws M4 x 12mm M4 x 35mm M4/M5 M5 x 12mm M5 x 35mm Spacers M6 x 12mm M6 x 35mm...
- Page 7 Parts and Hardware for STEP 2 Wall Plate Wall Plate Template Lag Bolts 1/4 x 2 ½ in.
- Page 8 STEP 1 Select TV Hardware and Attach Interface Bracket(s) to TV Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M5, or M6). Determine what kind of TV you have and if you require extra space between the wall and the TV to accommodate cables. •...
- Page 9 STEP 1 (7 7⁄8 x 7 7⁄8 in.) install the extender brackets IMPORTANT: If the hole pattern on your TV is 200x200 mm using the screws and nuts provided. If your TV hole pattern is less than 200x200 mm do not install the extender brackets. Skip ahead to STEP 1-A or 1-B.
- Page 10 STEP 1-A Ensure that your bracket is level on the back of the TV. If you need extra space to accommodate cables, recesses, or protrusions; use spacers (see the irregular back option on the next page). NOTE: If the hole pattern on your TV is 75 x 75 mm the washers will not be used.
- Page 11 STEP 1-B Ensure that your bracket is level on the back of the TV. Standard confi gurations are shown. For special applications, or if you are unsure about your hardware selection, contact Customer Service. NOTE: If the hole pattern on your TV is 75 x 75 mm the washers will not be used.
- Page 12 STEP 2 Attach Wall Plate to Wall (Wood Stud ONLY!) Locate your stud(s). Verify the center of the stud using an awl, a thin nail, or an edge to edge stud finder. CAUTION: Avoid potential personal injuries and property damage! ●...
- Page 13 STEP 2 Drill pilot holes. IMPORTANT: Pilot holes must be drilled to a depth of 63.5 mm (2½ in.), using a 3 mm (1/8 in.) diameter drill bit. Tighten the lag bolts only until they are pulled firmly against the wall plate CAUTION: Improper use could reduce the holding power of the lag bolt.
- Page 14 STEP 3 Attach TV to Wall HEAVY! You may need assistance with this step. IMPORTANT: The locking tab needs to be in the unlocked position before attaching the TV to the wall plate. Once the TV is on the wall plate, the locking tab needs to be in the locked position.
-
Page 15: Troubleshooting
Troubleshooting ADJUSTING THE TILT: Loosen the knob on the TV bracket to adjust REMOVING THE TV: Place the locking tab into the unlocked the tilt of your TV. Tighten the knob when your TV is set to the position and lift the TV up and out away from the wall plate. desired tilt. -
Page 16: Antes De Comenzar
ESPAÑOL INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Antes de comenzar Cerciórese de: que su televisor y los accesorios que planifica usar no excedan el límite de peso especificado; que el patrón de orificios de la parte trasera de su televisor sea compatible con el patrón de orificios de la(s) placa(s) de sujeción para el televisor;... - Page 17 ESPAÑOL Piezas y elementos de sujeción suministrados ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada, no devuelva el artículo al distribuidor;...
- Page 18 ESPAÑOL PASO 1-A Asegúrese de que la placa de sujeción quede nivelada en la parte posterior del televisor. Si necesita más espacio para cables, concavidades o protuberancias, use los espaciadores (consulte la opción para dorso irregular en la siguiente página). NOTA: Si el patrón de orificios de su televisor es de 75 x 75 mm, no se usarán las arandelas.
-
Page 19: Resolución De Problemas
ESPAÑOL Realice los orificios guía. IMPORTANTE: Los orificios guía deben realizarse con una mecha de 3 mm (1/8 pulgada) de diámetro hasta una profundidad de 63,5 mm (2,5 pulgadas). Ajuste los tornillos tirafondo solamente hasta que queden firmes contra la placa mural PRECAUCIÓN: El uso indebido podría reducir la capacidad de retención de los tornillos tirafondo. - Page 20 Thank you for choosing Sanus VuePoint! Please take a moment to let us know how we did: Call us: 888-333-9952 Email us: info@sanus.com Leave a review: vuepoint.sanus.com UK: 0800 056 2853 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations.
