FLF 322

INSTRUCTION MANUAL

Para Español ver página 22

Want to watch

a video that

shows how

easy this DIY

project will be?

Watch it now at:

SANUS.com/2774

Need help?

Do you have a question about the FLF322 and is the answer not in the manual?

Questions and answers

Summary of Contents for SANUS VuePoint FLF322

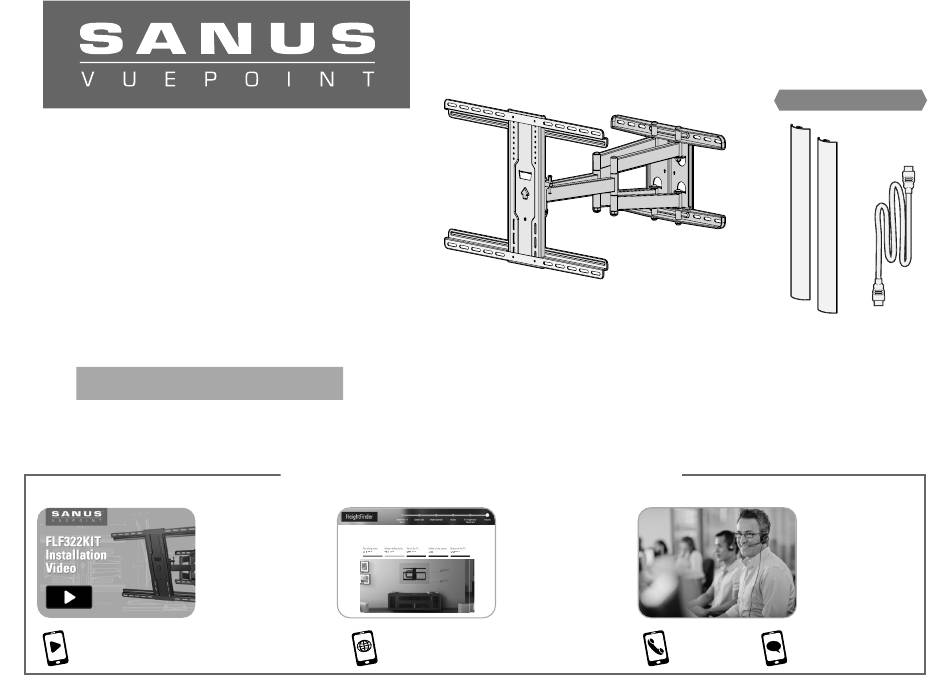

Page 1 BONUS! FLF 322 INSTRUCTION MANUAL Two 18" 4K HDMI Cable Cable Tunnels Para Español ver página 22 WE’RE HERE TO HELP Want to watch Get it right the Our US-based Recommended placement a video that ﬁrst time. install experts shows how HeightFinder™...
Page 2 CAUTION: IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ENTIRE MANUAL PRIOR TO USE — SAVE THESE INSTRUCTIONS Please read through these instructions completely to be sure you’re comfortable with this easy install process. Check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: 888-333-9952.
Page 3: Wall Construction
CAUTION: Wall wood studs Solid concrete or concrete block Construction DO NOT install in drywall ONLY install on alone these acceptable wall types. Drywall alone will hold the ACCEPTABLE weight of your TV Concrete kit CMK1 is required ACCEPTABLE [NOT INCLUDED] Call Customer Service Unsure Call Customer Service: 888-333-9952 Tools Needed...
Page 4: Wall Plate
Dimensions TV INTERFACE 23.62in 600mm 7.87in 200mm 15.75in 7.87in 400mm 200mm WALL PLATE TOP VIEW - SWIVEL SIDE VIEW - EXTENSION/TILT 15.98in 0.87in WALL IS ON TOP 406mm 22mm 15deg DOWN 9.00in 7.62in 35deg 228.5mm 193.5mm 35deg SIMULATED 70" 0.35in FLAT SCREEN TV 5.31in 5.31in...
Page 5: Supplied Parts And Hardware
Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
Page 6: Installation / Adjustments
STEP 3 Hardware STEP 2 Parts and Hardware M5 x 8mm Securement Screw qty. 1 Wall Plate Template Washer [Securement Screw] Wall Plate Assembly qty. 1 qty. 1 qty. 1 Installation / Adjustments Hex Key qty. 1 Lag Screw qty. 4 5/16 x 2¾...
Page 7 Cable Tunnel Kit Hardware for STEP 2B Concrete Installation [Concrete Kit CMK1 is NOT INCLUDED] Clip Contact Customer Service at 888-333-9952 to qty. 4 inquire about the Concrete Installation Kit CMK1. For concrete installations ONLY Long Clip CAUTION : Do not use in drywall or wood qty.
Page 8 STEP 1 Attach TV Bracket to TV 1-1 Select TV Screw Standard configurations 1-2 Select TV Screw Length Diameter are shown. For special applications, or if you Hand thread screws into the are uncertain about your For flat-back TVs, Spacers supplied for: threaded inserts on the back of hardware selection,...
Page 9 1-3 Attach TV Bracket HEIGHT (H) greater than (>) 200 mm HEIGHT (H) equal (=) 200 mm inches 7 ⅞ 11 ¾ 15 ¾ 23 ¾ inch dimensions are approximate Measure the HEIGHT (H) of your TV's NOTE: Position the slotted holes as mounting hole pattern.
Page 10 For HEIGHT (H) equal (=) 200 mm Screw posts on horizontal TV bracket must sit in bottom hole of vertical TV bracket Screw posts Angle the brackets to clear the Tilt the brackets screw posts. nest the screw posts. Slide horizontal TV brackets onto the vertical TV bracket as shown.
Page 11 : Flat Back : Round Back / Extra Space Center the TV bracket assembly over your TV's hole pattern and attach using screw combination you selected for your TV. Secure the assembly with the four CAUTION: Avoid potential personal injuries and property damage! DO NOT wing nuts use power tools for this step.
Page 12: Wood Stud Installation
STEP 2A Attach Wall Plate Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½ x 3 ½ in. (38 x 89 mm) ●...
Page 13 2¾ in. (70 mm) 7/32 in. (5.5 mm) Drill pilot holes then remove the wall plate template Install the wall plate using four lag bolts and washers Tighten all lag bolts only until they are pulled firmly against the wall plate. IMPORTANT: Be sure to drill into the center of the stud.
Page 14 STEP 2B Attach Wall Plate Solid Concrete or Concrete Block Installation CAUTION: Avoid potential personal injury or property damage! Concrete Install Kit #CMK1 is not included ● Mount the wall plate assembly directly onto the concrete surface (see page 7) Contact Customer Service ●...
Page 15 Remove wall plate template and insert four concrete Install the wall plate using four lag bolts anchors washers . Tighten all lag bolts only until they are pulled firmly against the wall plate. CAUTION: Be sure the anchors are seated flush with CAUTION: the concrete surface.
Page 16 STEP 3 Hang TV onto Wall Plate HEAVY! You may need assistance with this step. Hang your TV onto the arm of wall plate assembly Lock TV to wall plate assembly with screw and washer first hooking the top support, then resting the TV into place. CAUTION! Avoid potential personal injuries and property damage!Screw...
Page 17: Manage Cables
Manage Cables Fully extend the arms before routing cables. Use cable ties to bundle and attach cables to the arms for a cleaner look.
Page 18 Manage Cables - Cable Tunnel Space clips evenly along the length of the tunnel(s) NOTES: with a clip near each end. To combine tunnels, use the long ● This product is NOT recommended for brick, clip to connect where they meet. plaster, or wallpapered walls.
Page 19 Carefully lift tunnel Peel the assembly and tunnels position it at the away from desired location the clips making sure it is level. Arrange cables on either side of the clips. Press firmly for 10 Reattach tunnels seconds at each to clips and clip clip location along...
Page 20 TV Adjustments TILT LEVEL Loosen the screw on the rear of wall Loosen the tilt lever plate assembly Adjust the TV tilt position. Level your TV. Tighten tilt lever to secure the TV in place at your desired tilt angle. Retighten screw to secure in place.
Page 21: Removing The Tv
REMOVING THE TV HEAVY! You may need To remove your TV from the wall plate assembly assistance with this step. Disconnect all cables. Remove screw and washer Lift the TV up and off of wall plate assembly...
Page 22 ESPAÑOL INSTRUCCIONES IMPORTANTES DE SEGURIDAD - LEA TODO ESTE MANUAL ANTES DE UTILIZAR ESTE PRODUCTO - GUARDE ESTAS INSTRUCCIONES Lea atentamente estas instrucciones en su totalidad para asegurarse de que está familiarizado con el sencillo proceso de instalación. Consulte igualmente el manual de su televisor para conocer si existen requisitos especiales para el montaje de su aparato. Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, el montaje o el uso del producto, póngase en contacto con el Servicio de Atención al Cliente o llame a nuestro servicio técnico al número 1-888-333-9952 .
Page 23 ESPAÑOL herramientas 13 mm (1/2 in.) necesarias Cinta Lápiz Nivel Cinta Destornillador Taladro Llave de métrica Adhesiva eléctrico vaso Localizador 5,5 mm Punzón 10 mm (7/32'') (3/8'') montantes Madera Hormigón Martillo Broca Broca Dimensiones Consulte la página 4 Piezas y elementos de sujeción suministrados Consulte la página 5 ADVERTENCIA: Este producto contiene piezas pequeñas que, en caso de ser tragadas, podrían causar asfixia.
Page 24 ESPAÑOL PASO 1 Conectar el soporte al televisor Consulte la página 8 1-1 Seleccione el diámetro de los tornillos del televisor Enrosque manualmente los tornillos en los orificios roscados de la parte posterior del televisor para determinar el diámetro correcto del tornillo (M6 o M8) que debe usar.
Page 25 ESPAÑOL PASO 2A Fijar la placa de pared a la pared - Montante de madera Consulte la página 12 PRECAUCIÓN: Evite posibles lesiones personales y daños materiales. ● Los paneles de yeso sobre la pared no deben ser mayores de 16 mm (5/8 pulg.) ●...
Page 26: Español Paso
ESPAÑOL PASO 3 Colgar el televisor en la placa de pared Consulte la página 16 ¡PRODUCTO PESADO! Podría necesitar ayuda para realizar esta operación. Cuelgue el televisor en el brazo del conjunto de placa de pared enganchando en primer lugar el apoyo superior y luego dejando caer el televisor en su posición.
Page 27: Ajustes Del Televisor
ESPAÑOL Con cuidado, levante el ensamblaje y posiciónelo en el lugar deseado asegurándose de que está nivelado. Presione firmemente por 10 segundos en la posición de cada clip a lo largo de la longitud del ensamblaje para asegurar los clips y fijarlos a la pared.
Page 28 ©2018 Milestone AV Technologies. All rights reserved. SANUS VuePoint, HeightFinder and the VuePoint logo are trademarks of Milestone. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
