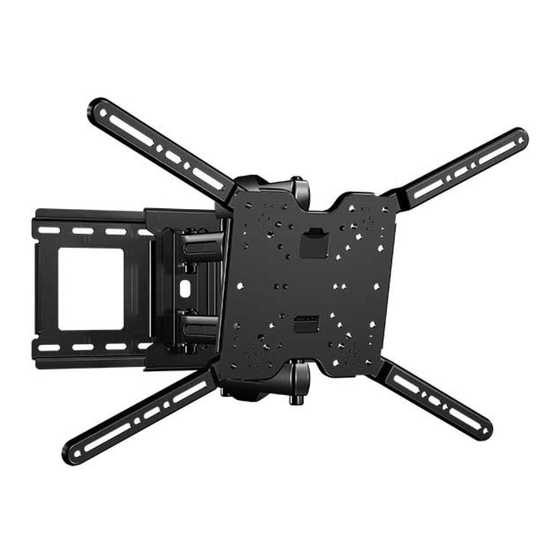

- Page 1 F180c INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-888-333-9952. We’re ready to help! Scan for easy install video san.us/794...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Before getting started, let’s make sure this mount is perfect for you! Does your TV weigh more than 100 lb (45.4 kg) including accessories? No — Perfect! 100 lb (45.4 kg) Yes —...
- Page 3 Dimensions NOTE: TV shifts 3 in. (7.61 cm) to the right or left when in the home [cm] 23.62 position. Consider this when select- 60.00 15.75 ing the location of your wall mount. 3.00 OFFSET 40.00 7.87 7.61 20.00 3.94 10.00 12°...
-
Page 4: Supplied Parts And Hardware
Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;... -
Page 5: Additional Hardware
STEP 3 Parts and Hardware STEP 2 Parts and Hardware Wall Plate Template Arm Assembly Locking Screw Wall Plate 1/4-20 x 3/4 in. Safety Screw Lag Bolt Washers 10-24 x 1 in. .695 x .350 x.075 in. Lag Bolts Additional Hardware Cable Ties 5⁄16 in. - Page 6 Concrete Installation Kit CMK1 (NOT INCLUDED) Contact Customer Service at 1-888-333-9952 to have these additional pieces shipped directly to you. 5/16 x 2¾ in. 5/16 x 2¾ in. Fischer UX 10 x 60 Anchor .695 x .350 x .075 in. .695 x .350 x.075 in.
- Page 7 STEP 1 Attach TV Bracket to TV 1-1 Measure Your TV Hole Pattern Measure the width and height of your TV hole pattern in cm. Record your measurements: Width __________cm x Height ________ cm 75 mm = 7.5 cm ≈ 3 in. 100 mm = 10 cm ≈...
- Page 8 1-2 Assemble Your TV Bracket 40.0 x 40.0 Determine which TV bracket configuration to use, A, B, C, or D 15.75 [cm] based on your TV hole pattern measurements. [40.0] 11.81 [30.0] 7.87 15.75 [20.0] [cm] 3.94 [40.0] 7.5 x 7.5 [10.0] 10.0 x 10.0 11.81...
- Page 9 60.0 x 40.0 40.0 x 20.0 23.62 15.75 [60.0] [40.0] 7.87 [20.0] 15.75 [40.0] 7.87 [20.0] 15.75 20.0 x 40.0 [40.0] [cm] [cm] Assemble TV bracket extenders onto TV bracket as illustrated. Assemble TV bracket extenders onto TV bracket as illustrated. Secure using eight screws in the corner holes shown.
- Page 10 1-3 Select TV Screw Diameter 1-4 Select TV Screw Length Standard configurations are shown. For special applications, or if you If your TV has a flat back AND you want your TV closer to the Hand thread screws into the threaded inserts are uncertain about your wall, use the shorter screws.
- Page 11 1-5 Attach TV Bracket Position your TV bracket configuration (A, B, C, or D) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and level. Secure bracket using your screw/washer (Flat Back) or spacer/screw/washer (Round Back / Extra Space) selection. IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
- Page 12 STEP 2A Attach Wall Plate to Wall Wood Stud Option CAUTION: Avoid potential personal injuries and property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) Locate your stud.
- Page 13 Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Remove wall plate template IMPORTANT: Be sure to drill into the center of the stud. IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Install wall plate using lag bolts .
- Page 14 STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option CAUTION: Avoid potential personal injuries and property damage! Concrete Installation Kit CMK1 is not included (see page 6) Contact Customer Service • Mount the wall plate directly onto the concrete surface at 1-888-333-9952 to have the additional •...
- Page 15 Remove the wall plate template and insert four anchors (Fischer UX 10 x 60 - included in the Concrete Installation Kit*). CAUTION: Be sure the anchors are seated flush with the concrete surface. Install wall plate using four lag bolts and four washers (use only the lag bolts and washers from the Concrete Installation Kit*). Tighten the lag bolts only until the washers are pulled firmly against the wall plate.
-
Page 16: Step 3 Attach Tv To Wall Plate
STEP 3 Attach TV to Wall Plate HEAVY! You may need assistance with this step. Hang the arm onto the wall plate by first hooking the top support, then resting the arm into place. Install locking screws to secure arm to wall plate NOTE: Arm can slide side-to-side along the wall plate for perfect positioning. - Page 17 HEAVY! You may need assistance with this step. Fold first section of the arm against the wall plate to provide stability. Hang the TV bracket onto the arm by first hooking the top support, then resting the TV into place.
- Page 18 Lock the TV bracket to the arm with safety screw IMPORTANT: This safety screw must be installed to secure the TV bracket onto the arm...
-
Page 19: Manage Cables
Manage Cables Cables can be routed through the cable channels on the top and bottom of the arm and secured to the arm with zip ties for a cleaner look. - Page 20 TV Adjustments TILT ADJUSTMENT LEVEL ADJUSTMENT Your TV should adjust easily when moved, then stay in place. To adjust the leveling of your TV, loosen the safety screw , level your TV, then tighten safety screw If your TV is too loose or too tight, adjust the tilt tension knob by hand. IMPORTANT: This safety screw must be installed to secure NOTE: Once your TV is in place, tighten the tilt tension knob to...
