- Page 1 FLF215 INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-888-333-9952. We’re ready to help! Scan for easy install video san.us/1116...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Before getting started, let’s make sure this mount is perfect for you! Does your TV weigh more than 100 lbs. (45.3 kg) including accessories? No — Perfect! 100 lbs.
- Page 3 Dimensions NOTE: TV shifts 3.05 in. (77.6 mm) to the right or left when in the home position. Consider this when selecting the location of your wall mount. 3.05 [77.6] OFFSET...
- Page 4 STEP 1 Attach Bracket to TV WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
- Page 5 1-1 Measure Your TV Hole Pattern Measure the width and height of your TV hole pattern in cm. Record your measurements: Width __________cm x Height ________ cm 75 mm = 7.5 cm ≈ 3 in. 100 mm = 10 cm ≈ 4 in. 200 mm = 20 cm ≈...
- Page 6 1-2 Assemble Your TV Bracket 400 x 400 Determine which TV bracket configuration to use, A, B, C, or D 15.75 [mm] based on your TV hole pattern measurements. [400] 11.81 [300] 7.87 15.75 [200] [mm] 3.94 [400] 75 x 75 [100] 100 x 100 11.81...
- Page 7 600 x 400 400 x 200 23.62 15.75 [600] [400] 7.87 [200] 15.75 [400] 7.87 [200] 15.75 200 x 400 [400] [mm] [mm] Assemble TV bracket extenders onto TV bracket as illustrated. Assemble TV bracket extenders onto TV bracket as illustrated. Secure using eight screws in the corner holes shown.
- Page 8 1-3 Select TV Screw Diameter 1-4 Select TV Screw Length Standard configurations are shown. For special If your TV has a flat back AND you want your TV closer to the applications, or if you Hand thread screws into the threaded inserts wall, use the shorter screws.
- Page 9 1-5 Attach TV Bracket Position your TV bracket configuration (A, B, C, or D) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and level. Secure bracket using your screw/washer (Flat Back) or spacer/screw/washer (Round Back / Extra Space) selection. IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
-
Page 10: Step 2 Parts And Hardware
Wall Plate Template Wall Plate Lag Bolts WELCOME AND THANKS FOR CHOOSING SANUS VUEPOINT GET STARTED THIS IS YOUR DRILLING YOU’RE REALLY GOING 5⁄16 in. x 2 3⁄ 4 in. - Page 11 STEP 2A Attach Wall Plate - Wood Stud CAUTION: Avoid potential personal injuries and property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) Locate your stud.
- Page 12 Remove the wall plate template and drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Be sure to drill into the center of the stud. IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Install wall plate assembly using two lag bolts and two washers...
- Page 13 STEP 2B Attach Wall Plate - Solid Concrete / Concrete Block CAUTION: Avoid potential personal injuries and property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum concrete block size: 8 x 8 x 16 in.
- Page 14 Concrete Installation Kit CMK1 is not included (see page 10) Contact Customer Service Insert three anchors C3 (Fischer UX 10 x 60 - included in the Concrete Installation Kit*). at 1-888-333-9952 to have the additional CAUTION: Be sure the anchors C3 are seated flush with the concrete surface. hardware shipped directly to you.
- Page 15 STEP 3 Hang TV onto Wall Plate STEP 3 Parts and Hardware HEAVY! You may need assistance with this step. Fold first section of the arm of wall plate assembly against the wall to provide stability. Locking Screw 1/4-20 x 3/4 in.
- Page 16 Hang the TV onto the arm of wall plate assembly by first hooking the top support, then resting the TV into place. Lock the TV to the wall plate assembly with locking screw IMPORTANT: This locking screw must be installed to secure the TV onto the wall plate assembly Note: Note: Arrow...
-
Page 17: Manage Cables
Manage Cables Cable Ties Cables can be routed through the cable channels on the top and bottom of the arms of the wall plate assembly for a cleaner look. Route top cables through the open area of the arm as shown to prevent pinching the cable when folding the arm. Hook and loop ties can be used to bundle the cables. - Page 18 TV Adjustments TILT ADJUSTMENT LEVEL ADJUSTMENT Your TV should adjust easily when moved, then stay in place. To adjust the leveling of your TV, loosen the locking screw , level your TV, then tighten locking screw If your TV is too loose or too tight, adjust the tilt tension knob by hand. IMPORTANT: This locking screw must be installed to secure NOTE: Once your TV is in place, tighten the tilt tension knob to...
- Page 19 REMOVING THE TV HEAVY! You may need assistance with this step. To remove your TV from the wall plate assembly , disconnect all cables and then reverse the procedures in STEP 3.

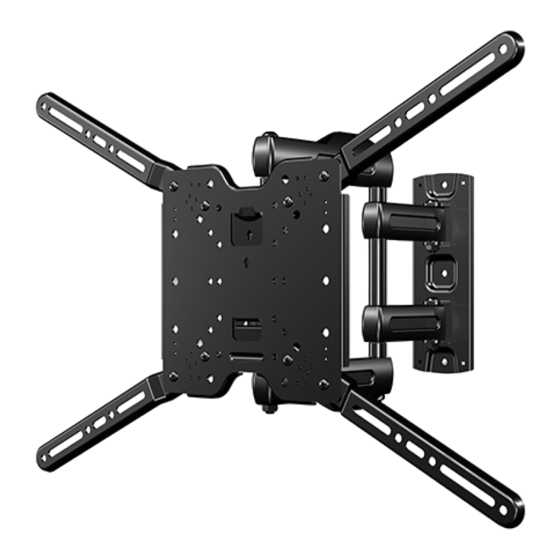

- Page 20 Features 23.62 Fully articulating arm, with Adjustments allow fi ngertip control 600.0 3 pivot points, creates of TV or restriction of TV movement 15.75 optimal viewing positions 400.0 7.87 200.0 3.94 100.0 2.95 75.0 11º 2.95 3.94 7.87 15.75 75.0 100.0 200.0 400.0...
