INTRODUCTION

PACKAGING CONTENT

1x Link Up Gateway - Resistive
1x Safety Manual
1x Veratron Card

THE LINKUP GATEWAY CONCEPT

The resistive-type Link Up gateway provides an easy method to convert vessel and engine information to
NMEA 2000®.
Compatible sensors are for example, but not only, liquid levels, temperature, or pressure senders.
Easily installed, the LinkUp gateway replaces the original wiring, delivering power to both the LinkUp device
and sensor from the NMEA 2000® backbone while still being compliant with the NMEA 2000®
certification requirements.
The data are then available for being displayed on any OceanLink, AcquaLink, or more in general on any
glass cockpit NMEA 2000® display device.
Configuring LinkUp gateways is simple using a mobile device and the companion LinkUp Configurator App
for Android or iOS.
Each device has a built-in passive NFC antenna, so the parameters of the sensor are wirelessly configured to
type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device
for instant data download.

DESIGN AND FUNCTION

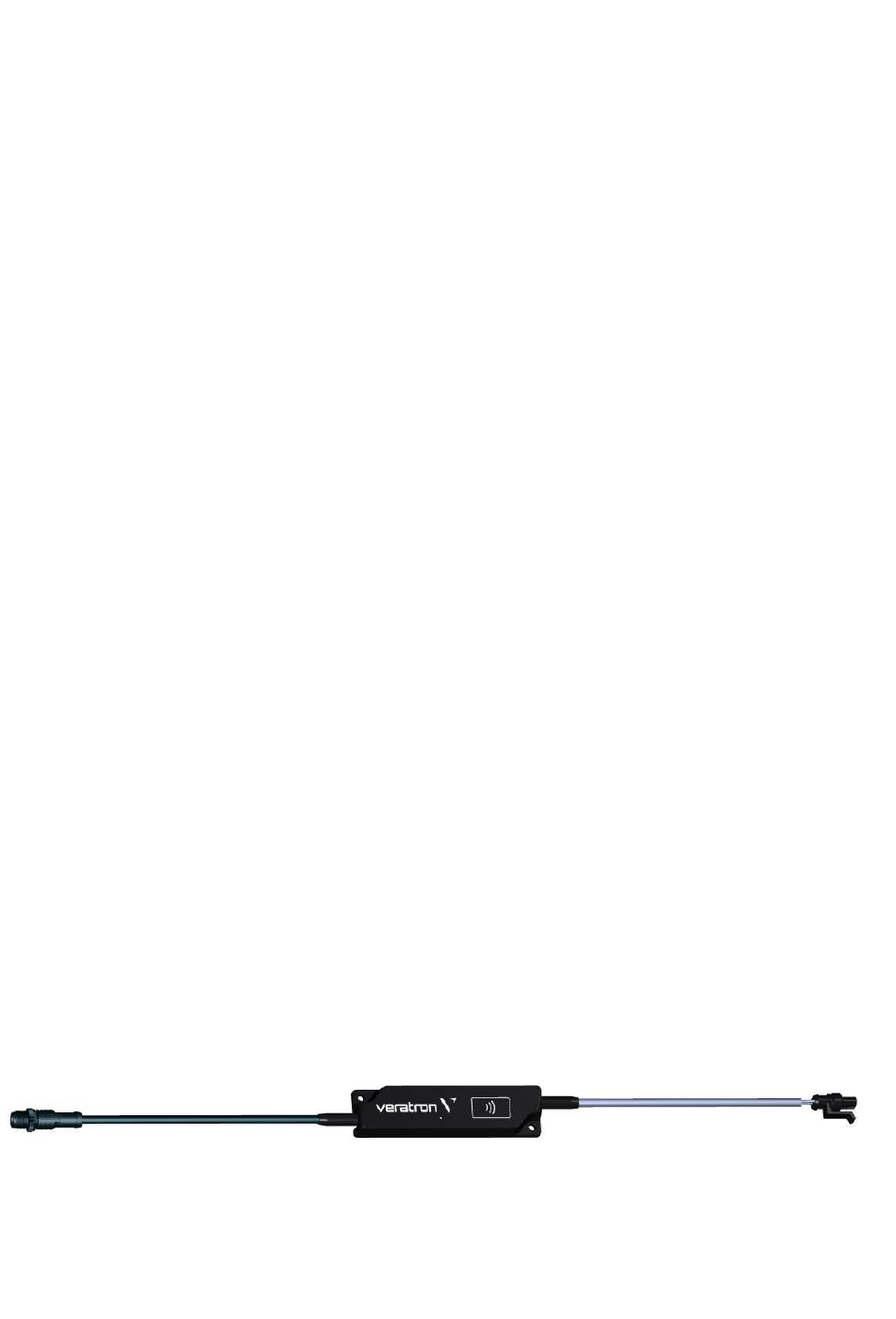

The Link Up gateway has a simple yet effective design. The potted housing allows the unit to be installed in
engine rooms, making it compliant to the ISO 8846:1990 as requested by the directive 2013-53(EC).
The standard NMEA 2000® M12 plug allows for a plug-and-play installation to the network backbone.
The sensor connection happens though an AMP SuperSeal plug, which perfectly matches the veratron level
sensors, without the need of additional wiring.
B000422
B000100
B000101
