Veratron Link Up Operating Instructions Manual page 9

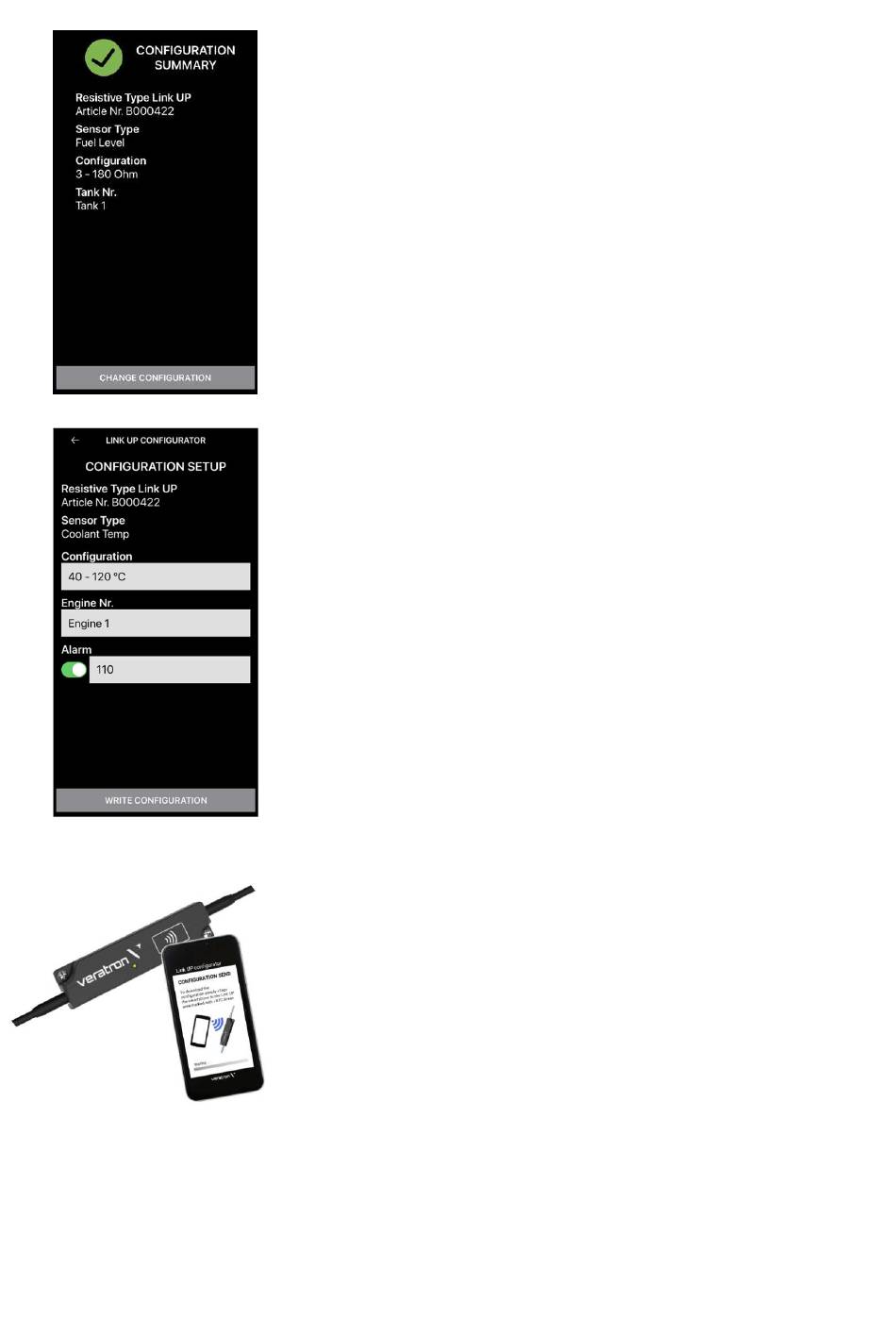

2. After the readout, the App will show the
"Configuration Summary", which displays all the
current settings of the device.
To modify the configuration, press the "Change
Configuration" button.
3. Select the sensor type to be configured among
the list shown in the App (e.g. Fuel Level).
Then choose the calibration for the selected
sensor (e.g. 3-180 Ω) and its instance (e.g. Tank 2)
so that the Link Up gateway will correctly
transmit the value over NMEA 2000®.
For some sensors (see list) it is possible to also
set up an alarm, with its related threshold.
Once the settings are completed, press the
"Write Configuration" button to prepare the
download.
4. To upload the configuration, simply "tap" the
smartphone again onto the Link Ups wireless
area, as described in step 1.
The configuration is instantaneously transferred
to the device, and the new "Configuration
Summary" is displayed.
CONFIGURATION
B000647
