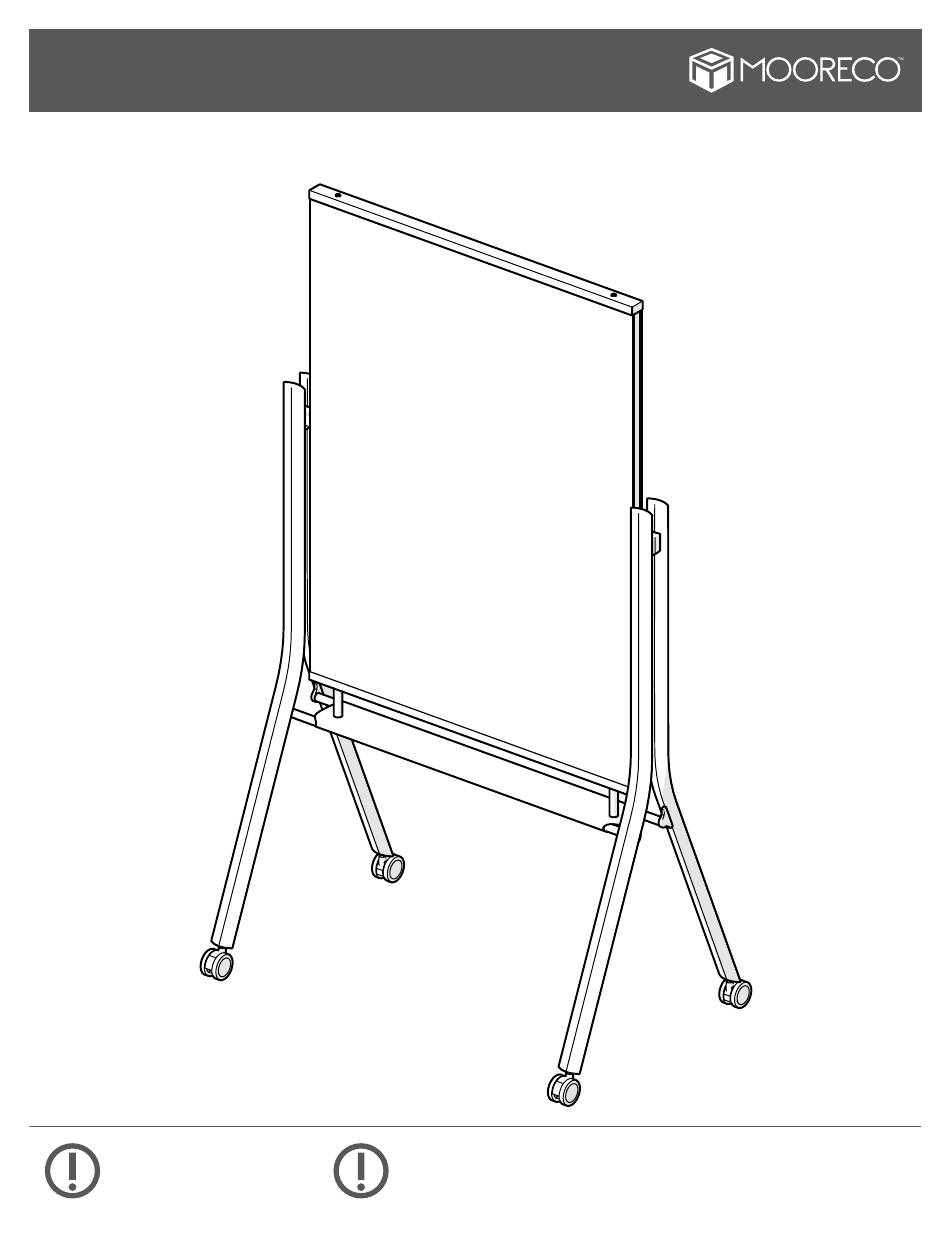

Visionary Curve
Part Numbers: 74955, 74957-XXXX
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE ENSEMBLAJE
INSTRUCTIONS DE MONTAGE
DO NOT THROW AWAY!
NO LA TIRE
NE PAS JETER
UPDATED AS OF: 03/05/2021
1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Visionary Curve 74957 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Mooreco Visionary Curve 74957 Series

  • Page 1 Visionary Curve Part Numbers: 74955, 74957-XXXX ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 03/05/2021 1 of 6...
  • Page 2 Parts List Hardware P1 - Glass Board A - CS Srew M6 x 10mm P2A - Leg B - Screw M6 x 15mm P2B - Leg C - Screw M8 x 65mm P3 - Leg Connector D - Lock Washer -Outer P4 - Leg Connector E - Locking Caster...
  • Page 3: Warranty

    WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in...
  • Page 4 STEP 1 Screw in Caster with Lock Washer to Leg and tighten with Caster Wrench. Use Locking Casters on same two leg parts (P2A or P2B) and Non-Locking Casters on the others. Repeat step for each leg. STEP 2 Attach Leg Connector-Outer to Leg (P2B) and Leg Connector-Inner to Leg (P2A) with two screws each.
  • Page 5 STEP 3 Connect C-Frame pieces using C-Frame Inserts as shown. Ensure side holes in C-Frame line up to each other. Use side hole to identify top of frame from bottom. Shorter Longer Bottom STEP 4 Bottom Screw in All-Threads into threaded holes in bottom of C-Frames. Place Cap Channel over All-Threads and bottom of frame then screw Tray Hangers onto All- Threads to secure Cap Channel.
  • Page 6 STEP 5 Attach tray assembly to leg set by first sliding tray onto pins then securing with two screws. Insert Threaded Block inside Leg Connectors and insert screw into C-Frame side hole to tighten into Threaded Block. Repeat step for second leg set. STEP 6 Insert Glass Boards into Gap Channel on bottom of frame and hold both boards flush with top of frame.
