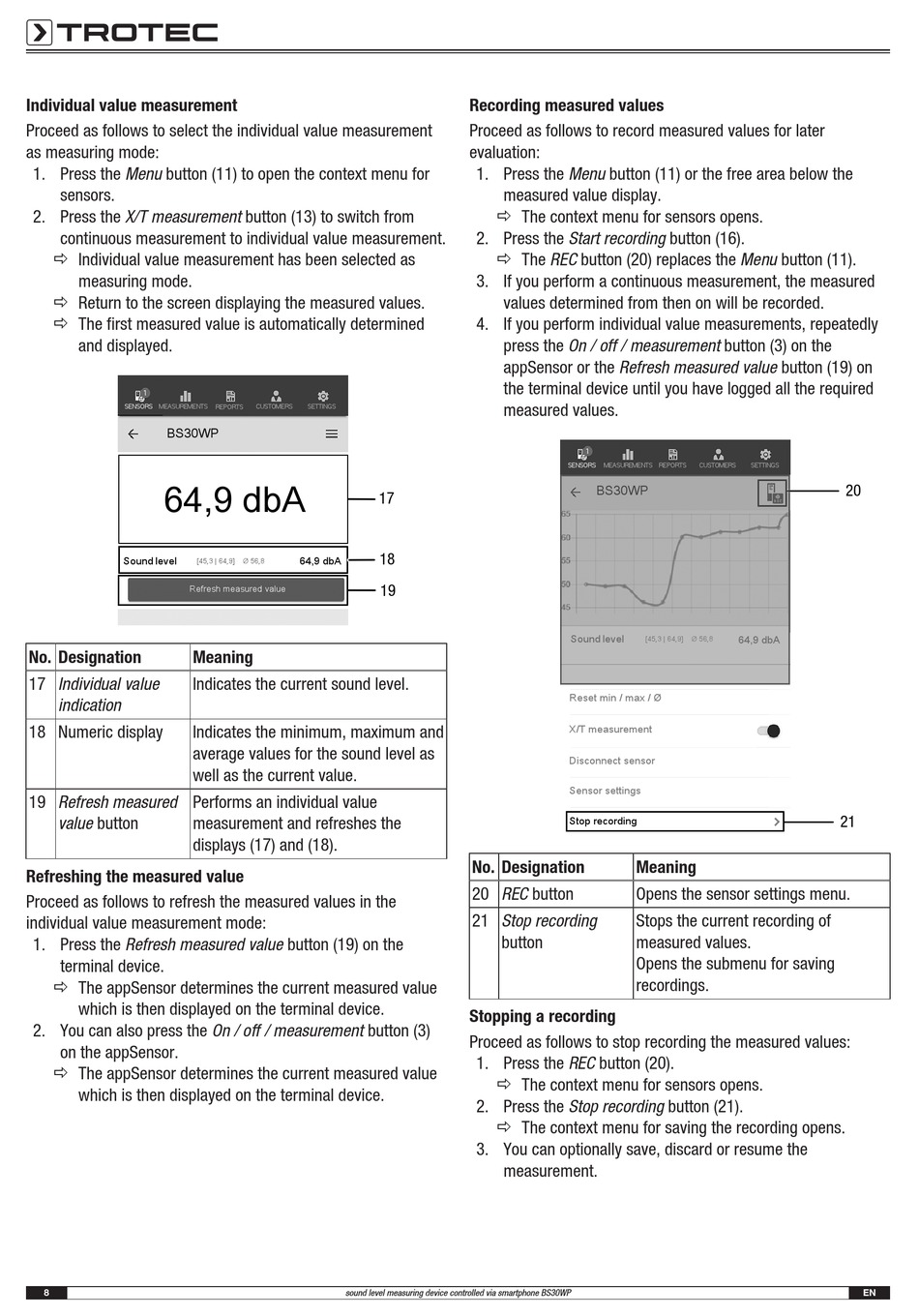

Trotec BS30WP Operating Manual page 8

Individual value measurement
Proceed as follows to select the individual value measurement
as measuring mode:
1. Press the Menu button (11) to open the context menu for
sensors.
2. Press the X/T measurement button (13) to switch from
continuous measurement to individual value measurement.
ð Individual value measurement has been selected as
measuring mode.
ð Return to the screen displaying the measured values.
ð The first measured value is automatically determined
and displayed.
SENSORS MEASUREMENTS
BS30WP
64,9 dbA
Sound level
[45,3 | 64,9]
Refresh measured value
No. Designation Meaning
17 Individual value Indicates the current sound level.
indication
18 Numeric display Indicates the minimum, maximum and
average values for the sound level as
well as the current value.
19 Refresh measured Performs an individual value
value button measurement and refreshes the
displays (17) and (18).
Refreshing the measured value
Proceed as follows to refresh the measured values in the
individual value measurement mode:
1. Press the Refresh measured value button (19) on the
terminal device.
ð The appSensor determines the current measured value
which is then displayed on the terminal device.
2. You can also press the On / off / measurement button (3)
on the appSensor.
ð The appSensor determines the current measured value
which is then displayed on the terminal device.
8
REPORTS CUSTOMERS SETTINGS
17
18
64,9 dbA
Ø 56,8
19
sound level measuring device controlled via smartphone BS30WP
Recording measured values
Proceed as follows to record measured values for later
evaluation:
1. Press the Menu button (11) or the free area below the
measured value display.
ð The context menu for sensors opens.
2. Press the Start recording button (16).
ð The REC button (20) replaces the Menu button (11).
3. If you perform a continuous measurement, the measured
values determined from then on will be recorded.
4. If you perform individual value measurements, repeatedly
press the On / off / measurement button (3) on the
appSensor or the Refresh measured value button (19) on
the terminal device until you have logged all the required
measured values.
SENSORS MEASUREMENTS REPORTS
BS30WP
Sound level
Reset min / max / Ø
X/T measurement
Disconnect sensor
Sensor settings
Stop recording
No. Designation Meaning
20 REC button Opens the sensor settings menu.
21 Stop recording Stops the current recording of
button measured values.
Opens the submenu for saving
recordings.
Stopping a recording
Proceed as follows to stop recording the measured values:
1. Press the REC button (20).
ð The context menu for sensors opens.
2. Press the Stop recording button (21).
ð The context menu for saving the recording opens.
3. You can optionally save, discard or resume the
measurement.
CUSTOMERS SETTINGS
[45,3 | 64,9] Ø 56,8 64,9 dbA
20
21
