Summary of Contents for Trotec BC21WP

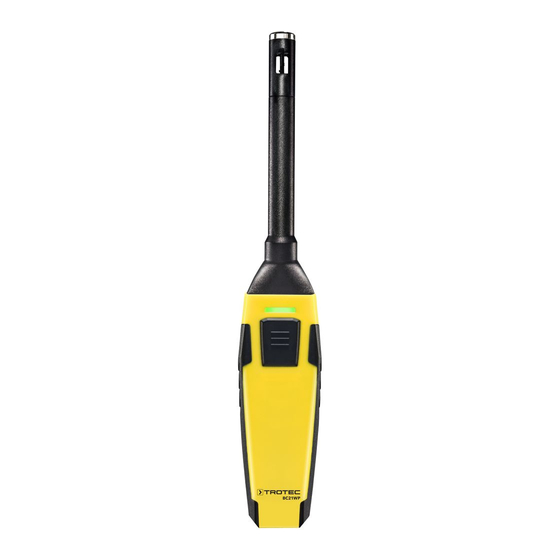

- Page 1 BC21WP OPERATING MANUAL THERMOHYGROMETER CONTROLLED VIA SMARTPHONE...
-
Page 2: Table Of Contents
• Observe the storage and operating conditions as given in Follow the manual the Technical data chapter. Information marked with this symbol indicates that the operating manual must be observed. thermohygrometer controlled via smartphone BC21WP... - Page 3 Do not leave the packaging lying around. Children may level. use it as a dangerous toy. The Trotec MultiMeasure Mobile app on the terminal device is used for both operation and the evaluation of the measured Warning values.
-
Page 4: Information About The Device
Device depiction Information about the device Device description Used in combination with Trotec's MultiMeasure Mobile app the thermohygrometer permits indoor measurements of air temperature and relative humidity level. The resulting values for dew point, mixing ratio (g/kg), absolute humidity level (g/m ) and wet-bulb temperature are directly calculated and displayed in the app. -
Page 5: Transport And Storage
Storage temperature -10 to 60 °C at < 90 % RH (non-condensing) Power supply 3 AAA batteries Device switch-off after approx. 3 minutes without active Bluetooth connection Protection type IP40 Weight 100 g (incl. batteries) Dimensions 225 mm x 38 mm x 23 mm (length x width x height) thermohygrometer controlled via smartphone BC21WP... -
Page 6: Operation
5. Lock the battery compartment by turning the lock (5) in a way that the arrow points towards the closed padlock icon. MultiMeasure Mobile app Install the Trotec MultiMeasure Mobile app on the terminal device you want to use in combination with the appSensor. Info Some of the app's functions require access to your location and an active Internet connection. - Page 7 ü The Trotec MultiMeasure Mobile app is installed. measurement. ü The Bluetooth function on your terminal device is activated. 1. Start the Trotec MultiMeasure Mobile app on the terminal When the appSensor has been successfully connected to the device. terminal device, a continuous measurement is started and 2.
- Page 8 Disconnects the connected button appSensor from the terminal device. 15 Sensor settings Opens the context menu for the button connected appSensor. 16 Start recording Starts a recording of the determined button measured values for later evaluation. thermohygrometer controlled via smartphone BC21WP...
- Page 9 Refresh measured value 2. You can also press the On / off / measurement button (3) on the appSensor. ð The appSensor determines the current measured value which is then displayed on the terminal device. thermohygrometer controlled via smartphone BC21WP...
- Page 10 1. Press the REC button (20). ð The context menu for sensors opens. 2. Press the Stop recording button (21). ð The context menu for saving the recording opens. 3. You can optionally save, discard or resume the measurement. thermohygrometer controlled via smartphone BC21WP...
- Page 11 Evaluation parameters. They will not be added to the already saved measurement, to be sure, but if you save the measurement again with a different name, these parameters will be added to the initial measurement. thermohygrometer controlled via smartphone BC21WP...
- Page 12 Sensors MEASUREMEN CUSTOMERS SETTINGS Reports Customers Add a customer from your address book / contacts or enter the details for a new customer. Info You can perform a new measurement directly from the input mask. thermohygrometer controlled via smartphone BC21WP...
- Page 13 Calling up customers App settings Proceed as follows to call up an already created customer: Proceed as follows to make settings in the Trotec MultiMeasure 1. Press the CUSTOMERS button (38). Mobile app: ð The customers overview opens. 1. Press the SETTINGS button (41).
-
Page 14: Maintenance And Repair
ð The appSensor is switched off. menu item Settings => Help. Selecting the menu item Help 2. You may now exit the Trotec MultiMeasure Mobile app on opens a link to the app's help page. You can open a drop-down the terminal device. -
Page 15: Disposal
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. thermohygrometer controlled via smartphone BC21WP... - Page 16 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
