Features:
• For the removal, installa�on and transporta�on of single, dual and
duplex �res and wheel assemblies
• Li� arms can be adjusted to handle different wheel combina�ons
• Leveling screw adjusts �lt angle for precise alignment
• Suitable for �re diameters of 23-5/8" - 60"
• (3) swivel casters (1 locking) allow for easy movement and posi�oning
• Safety chain for securing loads
• Meets or exceeds ASME/PASE 2019 standards

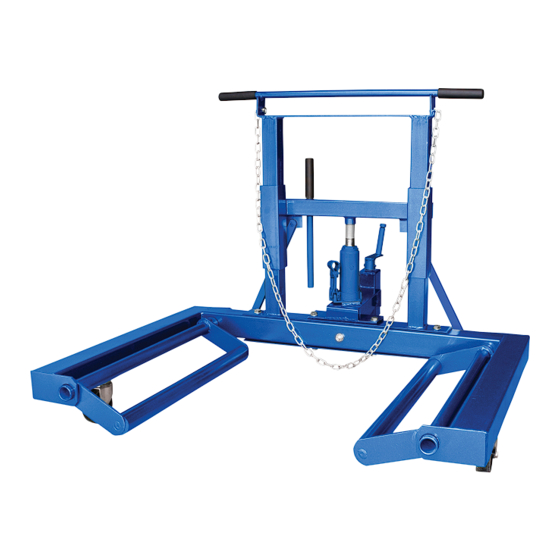

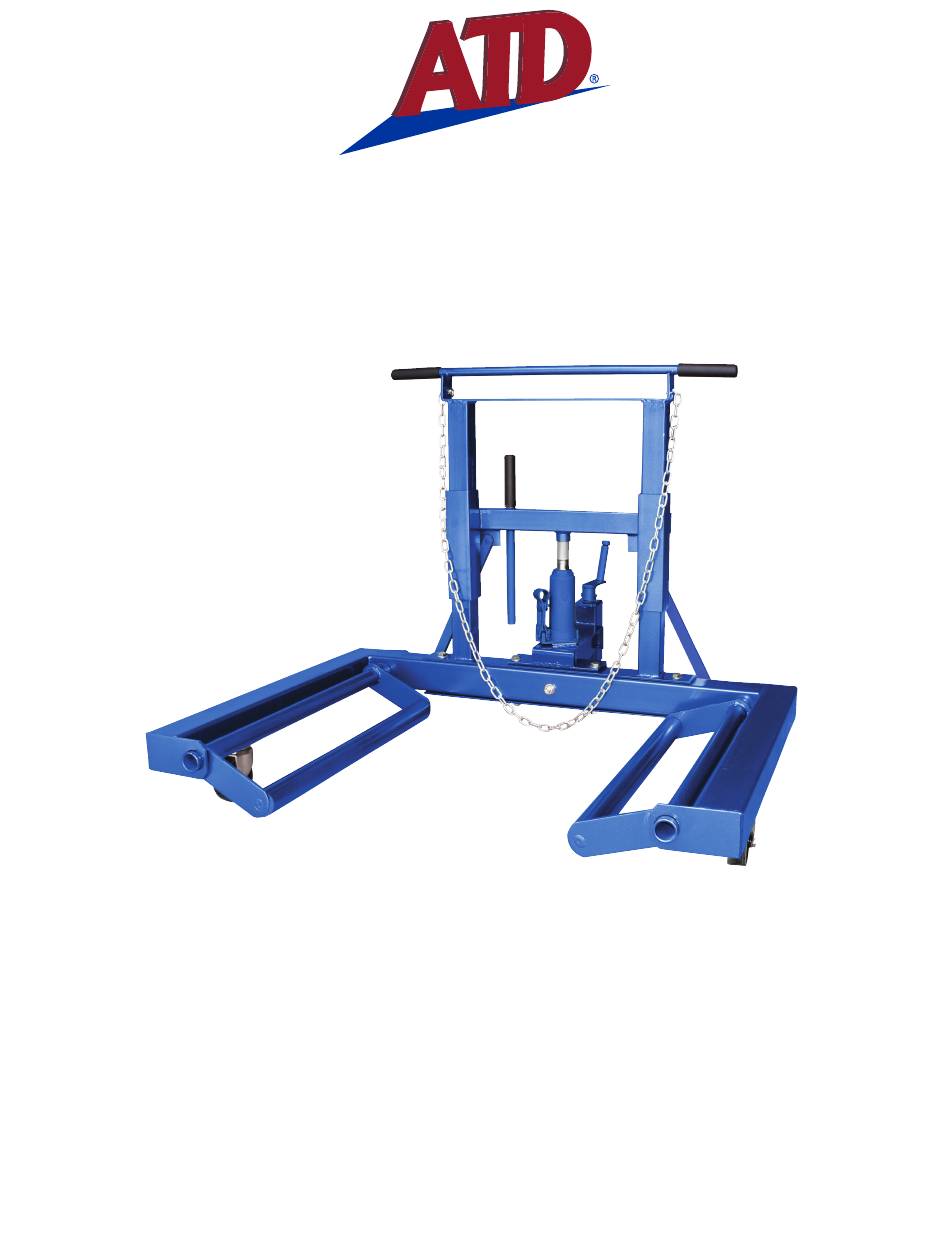

ATD-7227B
3/4 Ton Hydraulic Wheel Dolly
Owner's Manual
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Specifica�ons:
• Capacity: 3/4 Ton / 1500 lbs.
• Li�ing Range: 3-3/8" - 11-1/4"
• Tilt Range: -1.2˚ - 4.8˚
• Li�ing Arm Dimensions: 25-1/2" D x 32-1/2" W
• Jack Size: 41-3/8" L x 42-15/16" W x 34-5/16" H
• Weight: 178 lbs.
1
ATD-7227B_rev_0921
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools ATD-7227B
Summary of Contents for ATD Tools ATD-7227B
- Page 1 • (3) swivel casters (1 locking) allow for easy movement and posi�oning • Weight: 178 lbs. • Safety chain for securing loads • Meets or exceeds ASME/PASE 2019 standards Made in China to ATD Tools, Inc. Specifications ATD-7227B_rev_0921 Visit us at www.atdtools.com...
- Page 2 Important: Read ALL instructions before use Before using this product, be sure to read all content within this manual, ensuring that you understand the opera�ng procedures, maintenance requirements and all safety warnings. The owner and/or operator should have an understanding of the product, its opera�ng characteris�cs and safety opera�ng instruc�ons before opera�ng this device.
- Page 3 Assembly • A�ach the swivel caster (#16) to the base frame (#1) using (4) M8 x 16 hex bolts (#17) and (4) M8 hex locknuts (#15) NOTE: When a�aching the swivel caster assembly, insert the bolts so that when the stand is upright, the hex locknuts will be facing upwards. •...
- Page 4 Support Braces 1500LC-400 Handle Assembly 1500LC-3 Safety Chain 1500LC.7 Bo le Jack * Items not iden�fied by part number are not available for replacement ATD Tools, Inc. • 160 Enterprise Drive • Wentzville, MO 63385 Tool Free Service Number • 1-844-364-9922...
- Page 5 NOTES:...
- Page 6 Your ATD-7227B is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools, Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
