Botex SDC-6 User Instructions

1 Product Description

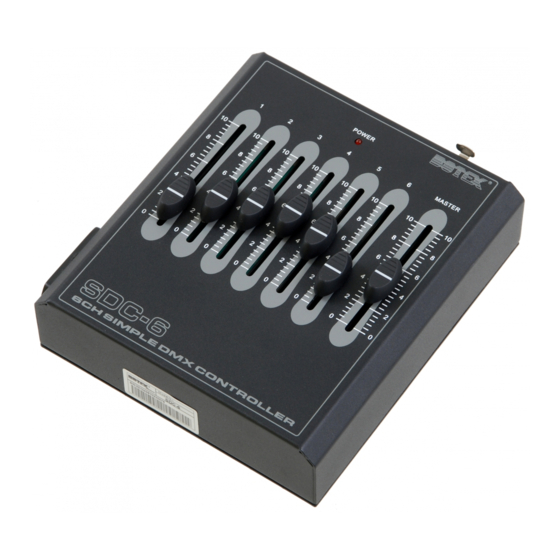

We wish to express our gratitude for your purchase of our digital product SDC–6. You now own a
professional 6-channel DMX controller with many useful functions. SDC-6 is a compact and portable
DMX device which can be powered by a DC 9V adapter or by battery(battery is not provided). This unit
is convenient to carry and easy to operate for user's application.

2 Notice Information

When unpacking, please check the unit is not damaged. If something wrong happens to this
product, contact the local dealer immediately.
All rights reserved. No part of this manual included with this product can be reproduced or
transmitted in any form, by any means or for any purpose without authorized permission.

Warning

• Keep the unit dry, do not expose it to water or high levels of humid.
Do not make any inflammable liquids, water or metal objects enter the unit.
•
Handling with care, any strong shocks or vibration may result in malfunction.
•
• If this product is not used for a long period of time, please take out the battery
• from the unit for safety cause.
• Do not attempt to dismantle or modify the unit.
• This unit must only be operated by adults, do not allow children to play with it.

3 Product View

3.1 Front panel

*Note: Improvements on specifications, design and this manual are subject to change without any prior
notice.
SDC-6
R
6CH SIMPLE DMX CONTROLLER
Instructions
1. Power indicator:
When the unit is powered on,
this LED indicator will be lit.
2. Channel faders 1-6:
These six faders provide direct
control over the corresponding
dimmers, and thus the intensity
for any connected luminaires.
3. Master fader:
The master fader can adjust
the values of 1~6 channels,
and it provides total control
towards overall DMX output.
24-004-1072
Rev 1.1
