Fluke 3310-PR Instruction Sheet

Flex current probe

3310-PR/3312-PR

Flex Current Probe

Instruction Sheet

Introduction

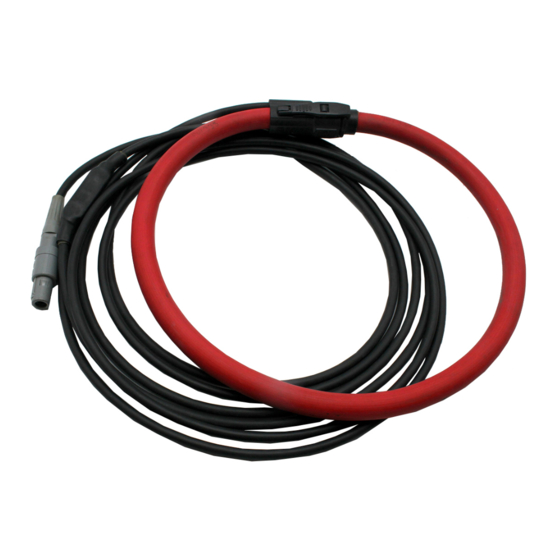

The Fluke 3310-PR and 3312-PR Current Probes ("the Probe")

are ac current probes utilizing the Rogowski principle. They can

be used with the Fluke 1750 to measure current from very low

frequencies up to 15 kHz. The flexible and lightweight measuring

head allows quick and easy installation in hard to reach areas

and with large conductors.

The Probes are designed for use with the Fluke 1750 Power

Recorder.

Contacting Fluke

To contact Fluke, call:

1-888-993-5853 in USA

1-800-363-5853 in Canada

+31-402-675-200 in Europe

+81-3-3434-0181 in Japan

+65-738-5655 in Singapore

+1-425-446-5500 from anywhere in the world

Or, visit Fluke's Web site at

www.fluke.com

To register your product, visit

PN 3039192

July 2007

Table of Contents

Need help?

Do you have a question about the 3310-PR and is the answer not in the manual?

Page 1 The Fluke 3310-PR and 3312-PR Current Probes (“the Probe”) are ac current probes utilizing the Rogowski principle. They can be used with the Fluke 1750 to measure current from very low frequencies up to 15 kHz. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.
Page 2 Symbol Description Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. Important Information. See manual. Hazardous Voltage. Risk of electric shock. Double insulation. Do not apply to or remove from hazardous, live conductors.
Page 3 • Use caution when working with voltages above 60 V dc, 30 V ac rms or 42 V ac peak. Such voltages pose a shock hazard. • Use of this equipment is designed to 600 V CAT IV or 1000 V CAT III standards. 600 V CAT IV and 1000 V CAT III equipment is designed to protect against the transients in the equipment in fixed equipment installations,...
Page 4 30 V ac rms or dc by the connector specified. LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
