Framework And Dimension - Eclipse Security ECL-IP3B100V User Manual

Port Name SN
1
2
I/O Port
3
4
5

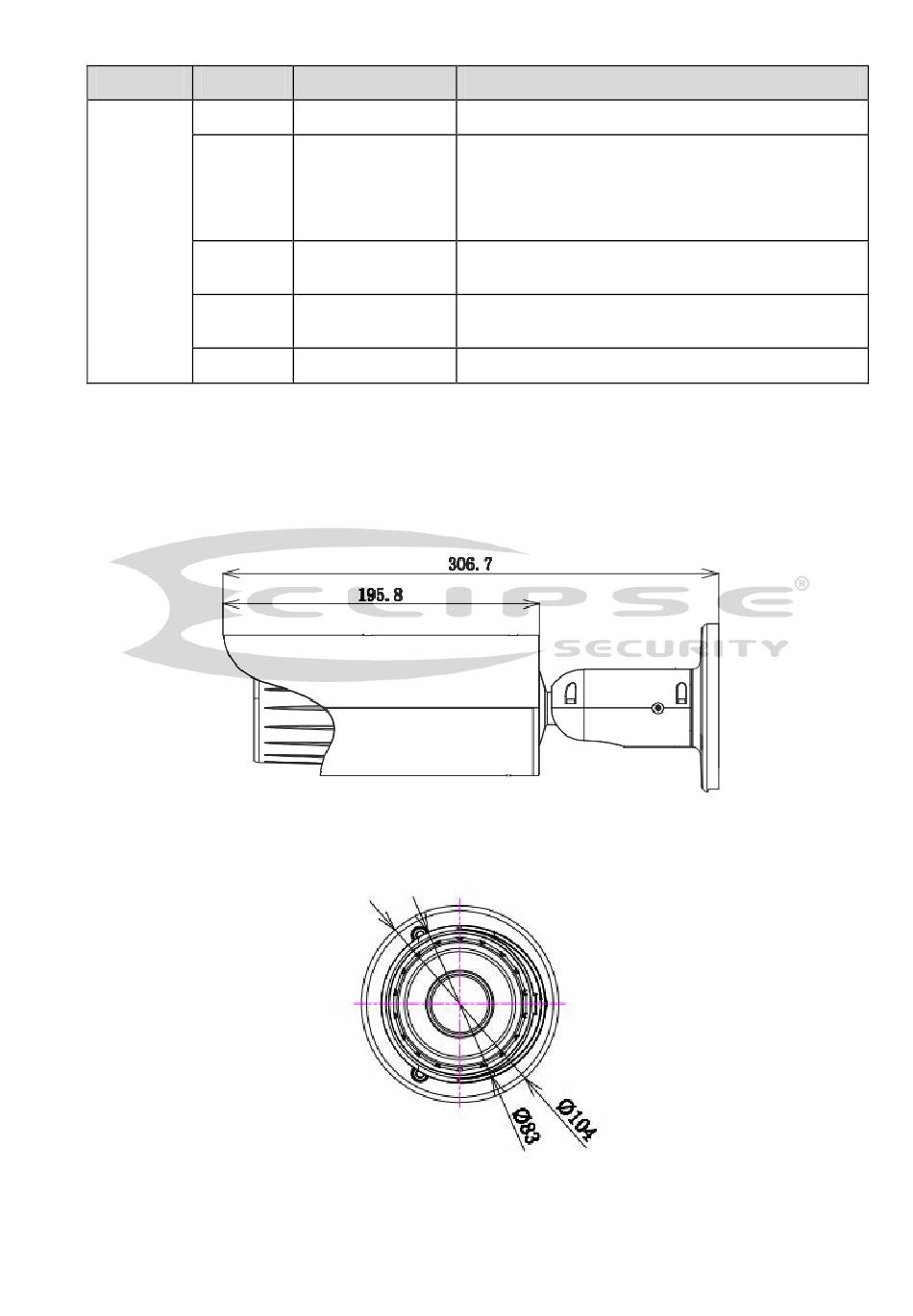

2.2 Framework and Dimension

Please refer to the following figure for dimension information. The unit is mm. See Figure 2-2 and
Figure 2-3.
Name Note
ALARM_COM Alarm output public port.
Alarm output port. It is to output the alarm signal to
the alarm device.
ALARM_NO
NO: normal open alarm output port.
It shall work with ALARM_COM port.
Alarm input port 1. It is to receive the on-off signal
ALARM_IN1
from the external alarm source.
Alarm input port 2. It is to receive the on-off signal
ALARM_IN2
from the external alarm source.
GND Ground port
Figure 2-2 Dimension illustration 1
Figure 2-3 Dimension illustration 2
9
