Multiple-Function Combination Cable - Eclipse Security ECL-IP3B100V User Manual

2 Framework

2.1 Multiple-function Combination Cable

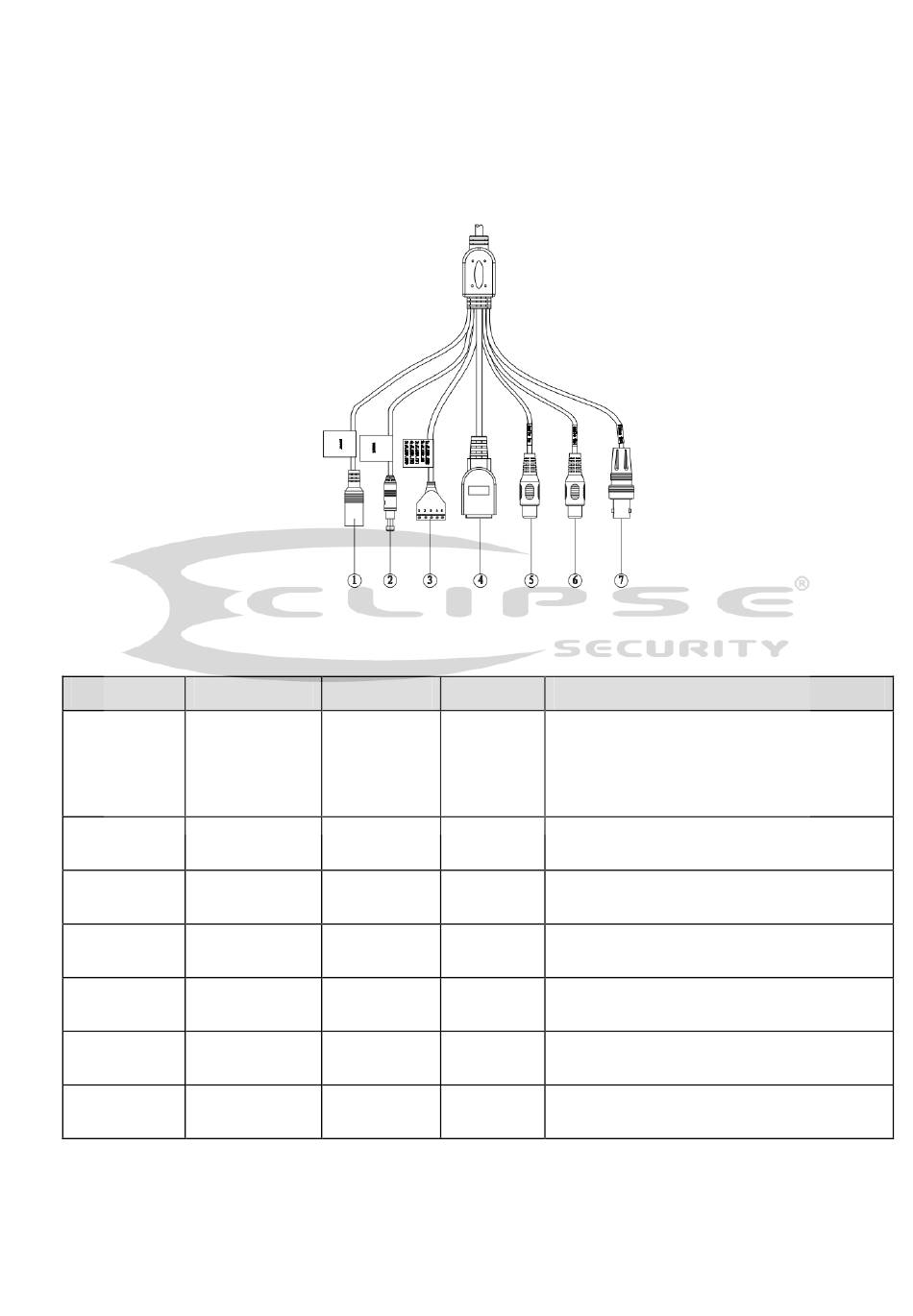

You can refer to the following figure for
.
2-1
Please refer to the following sheet for detailed information.
SN Port Name
1
DC12V/AC24V
2
RESET
3
I/O
4
LAN
5
AUDIO IN
6
AUDIO OUT
7
VIDEO OUT
Please refer to the follow sheet for detailed pin information.
multiple-function combination cable
Figure 2-1 Multiple-function combination cable
Function Connection
Power input
/
port
Reset button /
I/O cable
/
port
Ethernet
Network port
port
Audio input
RCA
port
Audio output
RCA
port
Video output
BNC
port
information. See Figure
Note
Power port. Input DC 12V or AC 24V.
(convertor is required)
Note:
Please refer to actual device label.
The reset button is to restore device factory
default setup. Press 3~5 seconds.
Includes alarm input and output.

Connect to standard Ethernet cable.
Input audio signal. It can receive the
analog audio signal from the pickup.
Output audio signal to the devices such as
the sound box.
Output analog video signal. It can connect
to the TV monitor to view the video.
